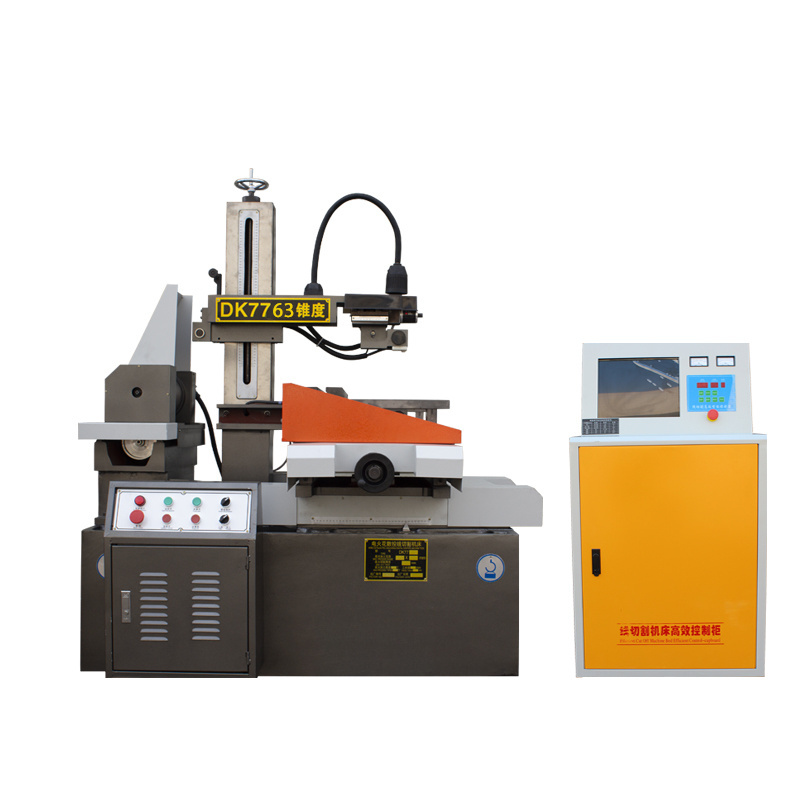

DK7763 Desktop Wire Cut Edm Machine Modern Craft Wire Cutting Edm Machine
DK7763 Desktop Wire Cut Edm Machine Modern Craft Wire Cutting Edm Machine
DK7763 Desktop Wire Cut Edm Machine Modern Craft Wire Cutting Edm Machine
DK7763 Desktop Wire Cut Edm Machine Modern Craft Wire Cutting Edm Machine
DK7763 Desktop Wire Cut Edm Machine Modern Craft Wire Cutting Edm Machine
DK7763 Desktop Wire Cut Edm Machine Modern Craft Wire Cutting Edm Machine
DK7763 Desktop Wire Cut Edm Machine Modern Craft Wire Cutting Edm Machine
DK7763 Desktop Wire Cut Edm Machine Modern Craft Wire Cutting Edm Machine

DK7763 Desktop Wire Cut Edm Machine Modern Craft Wire Cutting Edm Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $9400
≥3 Sets
US $9200
≥5 Sets
US $8800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
2100*1700*2050
Weight (KG):
2400
Power (kW):
1.5
Worktable travel (mm):
630*800
Precision:
≤0.02mm
Optimal processing surface roughness:
≤2.5 μm
Processing taper:
6°/80mm
Max. cutting thickness(mm):
700
Processing speed (mm^2/min):
≥120
Workbench size (mm):
1140*750
Wire diameter (mm):
0.10-0.20
Certification:
ISO CE
Key word:
CNC WEDM

Quick Details

Place of Origin:
Jiangsu, China
Brand Name:
TeRui
Voltage:
50hz.380v
Dimension(L*W*H):
2100*1700*2050
Weight (KG):
2400
Power (kW):
1.5
Worktable travel (mm):
630*800
Precision:
≤0.02mm
Optimal processing surface roughness:
≤2.5 μm
Processing taper:
6°/80mm
Max. cutting thickness(mm):
700
Processing speed (mm^2/min):
≥120
Workbench size (mm):
1140*750
Wire diameter (mm):
0.10-0.20
Certification:
ISO CE
Key word:
CNC WEDM
Product display
Products Description
Taizhou Terui CNC Machine Co., Ltd. produces whole series of DK77 CNC edm wire cutting machines,which adopts high precision V-shaped guide rail(Linear guide rail optional) and P3-grade high precison ball screw. The products have high quality, complete models, long service life and high precision. Machine specifications can be customized according to customer needs,like non-standard models DK7740(45)F,DK7750(55)F,DK7763F,DK7780F,DK77100F,DK77120F or even larger models. The company also produces ±30°, ±45° swing large taper machines and CNC high-precision middle speed edm wire cutting machines(Precision≤±0.005mm,roughness≤1.0μm). The following are the main parameters of DK77 series machines:
1.Standard maximum cutting taper:±6°/80mm;(±15°,±30°,±45° are optional)
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped, the precision can reach 0.01mm)
3.Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max. cutting speed≥120mm^2/min;
6.Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW;
7.Working fluid:Water-based emulsion.
Model
Worktable travel(mm)
Worktable size(mm)
Max. cutting thickness(mm)
Max. load(kg)
Dimensions(mm)
DK7720
200*250
420*270
200
100
1250*950*1250
DK7725
250*320
520*340
300
200
1450*900*1500
DK7735(32)
350(320)*450(400)
710*460
400
300
1400*1100*1600
DK7745(40)
450(400)*550(500)
810*570
400
450
1600*1200*1600
DK7745F(40F)
450(400)*630
950*600
400/600
600
1600*1580*1600
DK7755(50)
550(500)*650(630)
950*650
700
700
2000*1500*1900
DK7755F(50F)
550(500)*800
1140*650
700
700
2000*1650*1900
DK7763
630*800
1140*750
700
1000
2100*1700*2050
DK7763F
630*1000
1350*750
700
1200
2250*1850*2050
DK7780
800*1000
1350*980
900
2000
2400*1900*2350
DK7780F
800*1200
1600*1050
900
2400
2550*1950*2400
DK77100
1000*1200
1600*1100
1000
2600
2850*2500*2500
DK77100F
1000*1400
1800*1250
1000
2800
2950*2050*2500
DK77120
1200*1400
1800*1350
1000
3000
3050*2750*2500
DK77120F
1200*1600
2000*1500
1000
3500
3100*2850*2500
DK77160
1600*1800
2000*1700
1000
4000
3250*3000*2500
