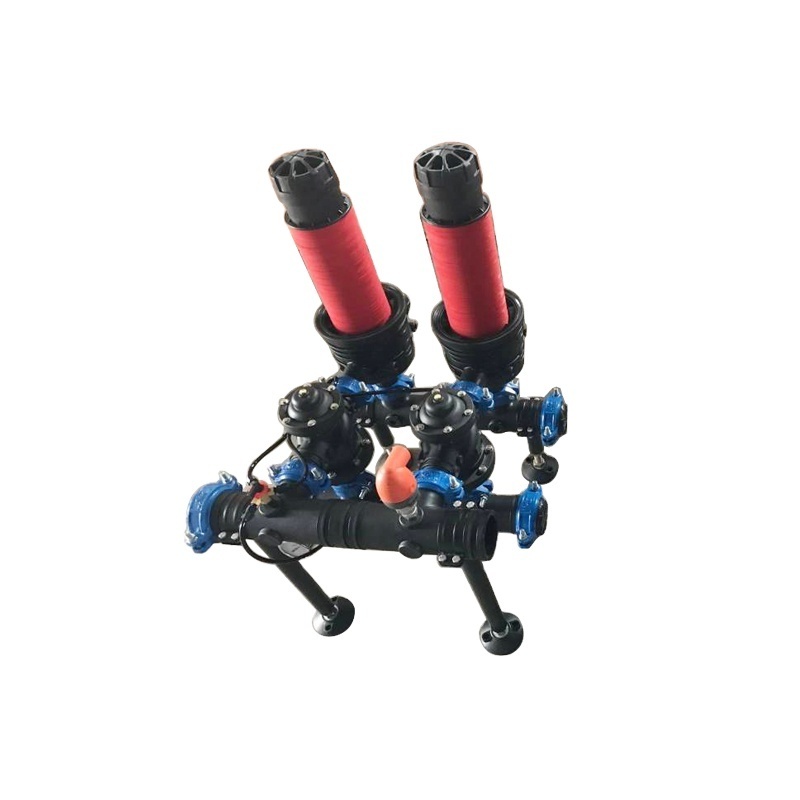

Agricultural 2 Inch 130 Micron Irrigation Filters Spin Disc Filter

Agricultural 2 Inch 130 Micron Irrigation Filters Spin Disc Filter

FOB Reference Price: Get Latest Price

≥1 Sets

US $1260

≥2 Sets

US $1200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 115 KGS

Size:: 875x890x1049mm

Productivity:: 75 M3/H

Weight (KG):: 115 kg

Model::: FGDF-3-2-A

Product Name::: Disc Filter Housing

Price::: 1260 USD/PC EXW

Function::: Remove impurities from well water and river water

Housing Material::: Plastic,Carbon Steel or Stainless Steel

Working Pressure::: 0.2-0.8Mpa

Back Wash Pressure::: 0.18-0.8Mpa

Filter Precision::: 20-4000 μm

Flow Rate::: 75 M3/H

Inlet/Outlet Coupling::: 3 inches thread, or flange

Quick Details

Place of Origin:: Henan,China

Brand Name:: FluidGuard

Material:: Plastic

Weight:: 115 KGS

Size:: 875x890x1049mm

Productivity:: 75 M3/H

Weight (KG):: 115 kg

Model::: FGDF-3-2-A

Product Name::: Disc Filter Housing

Price::: 1260 USD/PC EXW

Function::: Remove impurities from well water and river water

Housing Material::: Plastic,Carbon Steel or Stainless Steel

Working Pressure::: 0.2-0.8Mpa

Back Wash Pressure::: 0.18-0.8Mpa

Filter Precision::: 20-4000 μm

Flow Rate::: 75 M3/H

Inlet/Outlet Coupling::: 3 inches thread, or flange

Products Description

Full Name: Fluidguard Automatic self cleaning back wash disc filter system
Simply called as Disc filter

The disc filter can be working fully automatically, so can save a lot of labors. And the water flow don’t have to stop during back washing(cleaning process), so can ensure continuous water output.

Besides, it has the characteristics of low water consumption, low pressure loss, small footprint, easy operation, low cost, and so on.

Now the disc filter is favored by more and more water processing companies.

Working pressure	0.2-0.8Mpa	Back wash pressure	0.18-0.8Mpa
Flow rate	20-240 M3/H	Filter size	20-4000um
Inlet pipe material	Plastic/CS/SS	Outlet pipe material	Plastic/CS/SS
Drain material	Plastic	Housing	Plastic
Voltage	N/A(using #5 battery)	Way of control	DP, Time or Manual
Way of Back wash	Inside water	Back wash time	1minute（adjustable）

Product Details

Filtration mode

At this mode, the feeding water passes through the discs, and as the filter discs are pressed together tightly under the spring force and hydraulic force, the impurites in the water are trapped by the filter dics.
Thus the water is cleaned when flowing out.

Back wash mode

When a certain differential pressure or set time is reached, it means the filter discs are dirty and need to be cleaned.

Then the valve will change the water flow direction, the back washing water pressure will tighten the spring to loosen the filter discs, and the impurities trapped on the filter discs will be washed out.

The back washing takes around 1 minutes time, after that the filter discs become clean, the filter back to normal filtration mode.

Continuous water output

As a disc filter system is generally 2 or more filters combined together, when one filter is at back washing mode, the other filters are still at filtration mode, so it can ensure continuous water output.
