Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Apolomed
-
Model Number:
-
HS-900
-
Er:YAG laser Handpiece:
-
2940nm Er:YAG fractional ablative laser
-
Er:Glass laser Handpiece:
-
1540nm Er:Glass fractional laser
-
Long pulse laser Handpiece:
-
1064nm Long pulse Nd:yag laser
-
Q-Switch laser Handpiece:
-
1064/532nm Q-switch Nd:YAG laser
-
IPL/EPL Handpiece:
-
IPL/EPL
-
Certification:
-
ISO13485,CE 0197,510k
-
Dimension:
-
65*48*115cm (L*W*H)
-
Operate interface:
-
8'' True color touch screen
-
Cooling:
-
Advanced Air & TEC water cooling system
-
Power supply:
-
AC 110V or 230V, 50/60Hz
Quick Details
-
Feature:
-
Acne Treatment, Anti-Puffiness, Blood Vessels Removal, Breast Enhancers, Dark Circles, Face Lift, Hair Removal, LIP PLUMPER, Pigment Removal, Pore Remover, Skin Rejuvenation, Skin Tightening, Tattoo Removal, Weight Loss, Whitening, Wrinkle Remover
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Other
-
Warranty:
-
2 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Apolomed
-
Model Number:
-
HS-900
-
Er:YAG laser Handpiece:
-
2940nm Er:YAG fractional ablative laser
-
Er:Glass laser Handpiece:
-
1540nm Er:Glass fractional laser
-
Long pulse laser Handpiece:
-
1064nm Long pulse Nd:yag laser
-
Q-Switch laser Handpiece:
-
1064/532nm Q-switch Nd:YAG laser
-
IPL/EPL Handpiece:
-
IPL/EPL
-
Certification:
-
ISO13485,CE 0197,510k
-
Dimension:
-
65*48*115cm (L*W*H)
-
Operate interface:
-
8'' True color touch screen
-
Cooling:
-
Advanced Air & TEC water cooling system
-
Power supply:
-
AC 110V or 230V, 50/60Hz

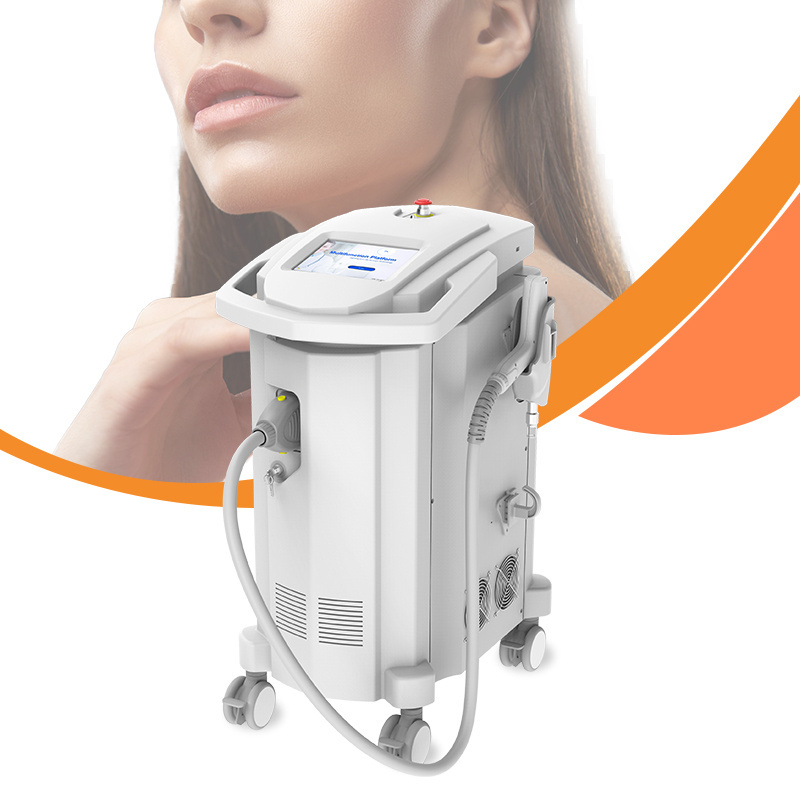

multi function platform laser device machine nd yag long pulse laser equipment
The multifunction beauty machine can support 5 different handpieces:
1.
2940nm Er:YAG Fractional Laser
2.
1540nm Er:Glass Fractional Laser
3.
1064nm Long Pulse Nd:YAG Laser
4.
1064nm & 532nm
EO
Q-Switched Nd:YAG Laser
5.
IPL SHR
|
Handpiece |
|
|
Spot size
|
10x10mm Φ 6mm, Φ 9mm, Φ 1~3.5mm |
|
Type of delivery way |
1 Hz and 2 Hz |
|
Pluse width |
1.5 ms, 2.0 ms , 2.5ms |
|
Energy |
9x9 pixel: 6 ~2 4 mJ/MTZ 7x7 pixel: 12 ~ 40 mJ/MTZ Beam expander ( Φ 6mm, Φ 9mm ) : 5 00~2 0 00mJ Zoom lens ( Φ 1~3.5mm ) : 5 00~2 0 00mJ |
|
Handpiece |
|
|
Energy |
10x10 pixel: 30 ~70mJ/MTZ 18x18 pixel: 5 ~2 5 mJ/MTZ |
|
Pluse Width |
10ms / 15ms |
|
1064nm Long Pulse Nd:YAG Laser |
|
|
Pulse width |
10~40ms |
|
Repetition rate |
1Hz |
|
Sapphire spot size |
Φ 3 mm , Φ 6 mm , Φ 9 mm |
|
Energy density
|
Φ 3 mm 1 5 0~ 5 00J/ cm 2 |
|
Φ 6mm 60~2 6 0J/ cm 2 |
|
|
Φ 9 mm 10~ 11 0J/cm² |
|
Handpiece |
|
|
Spot size |
1-5mm |
|
Pulse width |
≤ 10ns (single pulse) |
|
Repetition rate |
1~10Hz |
|
Pulse Energy |
1064nm:360~2400mJ |
|
|
|
Handpiece |
IPL/EPL |
|
Spot size |
IPL: 12*35mm , 15*50mm |
|
|
EPL:12*35mm |
|
Wavelength |
420~1200nm |
|
Filter |
420/510/560/610/640~1200nm, 690~950nm, SHR |
|
IPL/EPL energy |
1 0 ~ 6 0J/cm² |
| Operate interface | 8" true color touch screen |
| Cooling | Advanced Air&TEC water cooling system |
| Power supply | AC 100V or 230V, 50/60Hz |
| Dimension | 65*48*115cm(L*W*H) |
| Weight | 72Kgs |
1. 8-in-1 multifunction system available,which combine different technoties in one basic unit.
2. Auto-detect interchangeable handpieces for option.
3. Excellent cooling system with TEC water tank,Italy pump and high speed fans.
4. Multi-languages supported,meets requiremnets of global market.
5. Friendly touchable operate interface with standard mode and professional mode.
6. Interlock design ensure safety treatment environment.
7. Mudularized design for convenienet maintenance.
8. USB and IC card function supported.
