Quick Details
-
Size:
-
48mm*48mm
-
Output:
-
2 relays
-
Rest:
-
from back and front panel
-
Timing mode:
-
counting down/up
-
Active:
-
front front or back termianl
-
source:
-
85~265Vac or 24Vdc/ac
-
Relay:
-
delay function available
-
timing unit:
-
second, hour, minutes
-
Optional feature:
-
RS-485 communication
-
Display:
-
dual line 4 digits display
Quick Details
-
Brand Name:
-
MAXWELL
-
Place of Origin:
-
Fujian, China
-

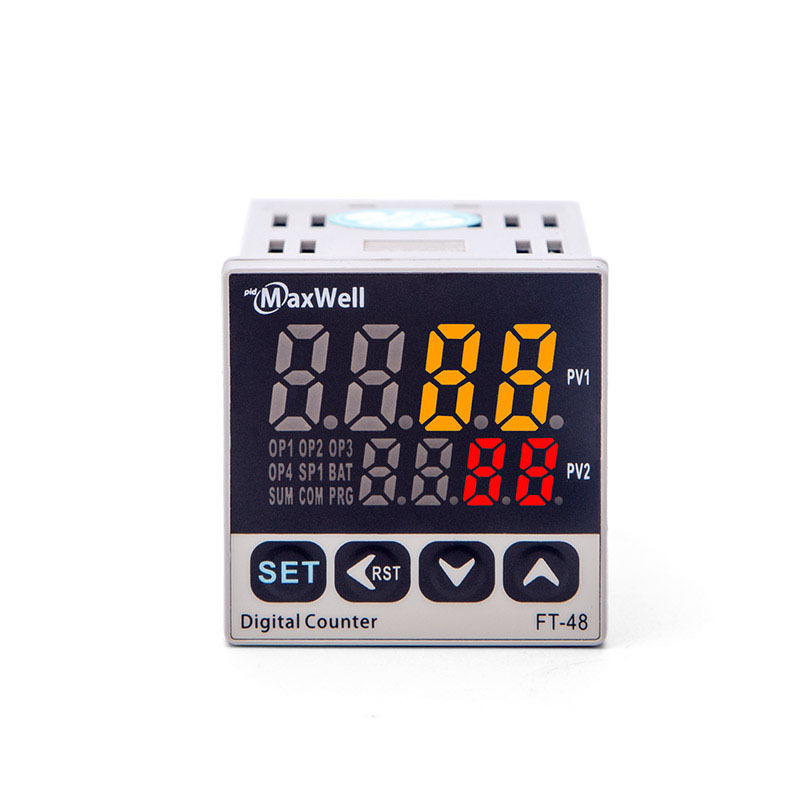

Model Number:
-
FT48-A-NNBN
-
Size:
-
48mm*48mm
-
Output:
-
2 relays
-
Rest:
-
from back and front panel
-
Timing mode:
-
counting down/up
-
Active:
-
front front or back termianl
-
source:
-
85~265Vac or 24Vdc/ac
-
Relay:
-
delay function available
-
timing unit:
-
second, hour, minutes
-
Optional feature:
-
RS-485 communication
-
Display:
-
dual line 4 digits display
Digital Counter Ordering Information:
| FT-48-X-X-X-X-X | |
| 1:Function designation for AU1 terminals at the back | N : No functions for AU1 terminals |
| A: AU1 terminals will be used as RST and GATE(count holding) purpose | |
| 2: AU1 terminals will be used as SP2 output(OP2) | |
| 3: AU1 terminals will be used as BA1 batch count output(OP3) | |
| 4: AU1 terminals will be used as SU1 totalizing count output(OP4) | |
| 2:Function designation for AU2 terminals at the back | N: No functions for AU1 terminals AU2 terminals is not available with DC100, this is a reserved options for bigger size that will availalbe later |
| 3:Function designation for AU3 terminals at the back | N: No functions for AU1 terminals AU3 terminals is not available with DC100, this is a reserved options for bigger size that will availalbe later |
| 4:Power supply | B: 85~265Vac 50/60HZ (standard option) |
| D: 24VDC/AC | |
| 5:RS-485 communication option | N: Without communication function |
| M: RS-485 modbus communication | |
