Quick Details
-
Brand Name:
-
Hengyun
-
Voltage:
-
380v
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
2100*2600*2700mm
-
Features:
-
Mobile
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Turner width:
-
2000mm
-
Turner height:
-
800mm
-
space between of material:
-
≥2000mm
-
Max size of material:
-
250mm
-
Motor:
-
20HP
-
Max speed:
-
2200r/min
-
Operating rate:
-
7.5-8m/min
-
Work knife diameter:
-
1200mm
-
Processing capacity:
-
600 cubic meters/h
Quick Details
-
Application:
-
Compost Turner
-
Production Capacity:
-
600cbm/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hengyun
-
Voltage:
-
380v
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
2100*2600*2700mm
-
Features:
-
Mobile
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Turner width:
-
2000mm
-
Turner height:
-
800mm
-
space between of material:
-
≥2000mm
-
Max size of material:
-
250mm
-
Motor:
-
20HP
-
Max speed:
-
2200r/min
-
Operating rate:
-
7.5-8m/min
-
Work knife diameter:
-
1200mm
-
Processing capacity:
-
600 cubic meters/h

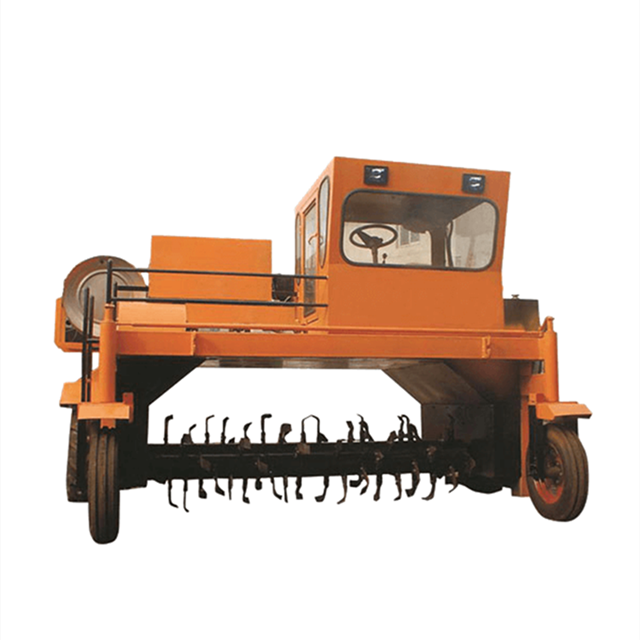

Compost turner
This device is connected to the stacking frame through a bearing housing, and each of the main shafts is fixed with a turning shaft that is welded with a stacking plate. The bearing seat of the traveling device is fixed on the walking frame, and the two connecting shafts with the traveling wheel are fixed in the bearing seat, and one end of each connecting shaft I is connected to one end of the connecting shaft through the coupling, and is decelerated The two output shafts of the machine are respectively connected to the other ends of the two shafts II through a coupling.The electric hoist of the hoisting device is fixed in the walking frame, one end of the wire rope is wound around the electric hoist, the other end is wound around the pulley block I and the pulley block II fixed on the turning pile frame, and the electric trolley connected with the connecting rod is connected On the walking frame, the connecting rod is connected to the stacking rack through the pin shaft. The utility model has the advantages of small energy consumption, thorough turning and stirring, high mechanical strength and simple structure.
Working principle
The main shaft adopts a long knife bar with a left and right spiral and a small shaft diameter, so that the machine can evenly turn the material, has good gas permeability, high breaking rate and low resistance. The transmission part adopts a large pitch chain drive, which makes the power efficiency high, the noise is low, the operation is stable, and the slip is not slippery. The shape is fully sealed, safe and reliable. The appliance is fully controlled with one box, making it easy and safe to operate.
|
Model
|
Turner width(mm)
|
Turner height (mm)
|
Operating rate (m/min)
|
capacity（m³/h）
|
|
HY2000
|
2000
|
600-800
|
8-12
|
400-500
|
|
HY2400
|
2400
|
800-1000
|
8-12
|
500-800
|
|
HY2800
|
2800
|
1000-1400
|
8-12
|
1100-1350
|
|
HY3000
|
3000
|
1200-1500
|
8-12
|
1200-1500
|
