Quick Details
-
Model Number:
-
AZ-8169, AZ-8169
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-5~+65C (with no icing)
-
Max. Current:
-
10A
-
Shape:
-
Double circuit type limit switch
-
Contact Form:
-
NO, NC
-
Ambient temperature:
-
-5℃ to +65℃
-
Feature:
-
Water-proof and oil-proof construction,wide varity of actuator
-
Material:
-
Consists of intensive plastic and zinc cast
-
Inrush Current:
-
N.C:below 24A, N.O:below 12A
-
Humidity:
-
<95% RH
-
Item name:
-
Limit Switch
-
Degree of protection:
-
IP65
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHEN
-
Model Number:
-
AZ-8169, AZ-8169
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-5~+65C (with no icing)
-
Max. Current:
-
10A
-
Shape:
-
Double circuit type limit switch
-
Contact Form:
-
NO, NC
-
Ambient temperature:
-
-5℃ to +65℃
-
Feature:
-
Water-proof and oil-proof construction,wide varity of actuator
-
Material:
-
Consists of intensive plastic and zinc cast
-
Inrush Current:
-
N.C:below 24A, N.O:below 12A
-
Humidity:
-
<95% RH
-
Item name:
-
Limit Switch
-
Degree of protection:
-
IP65
-
Certification:
-
CE

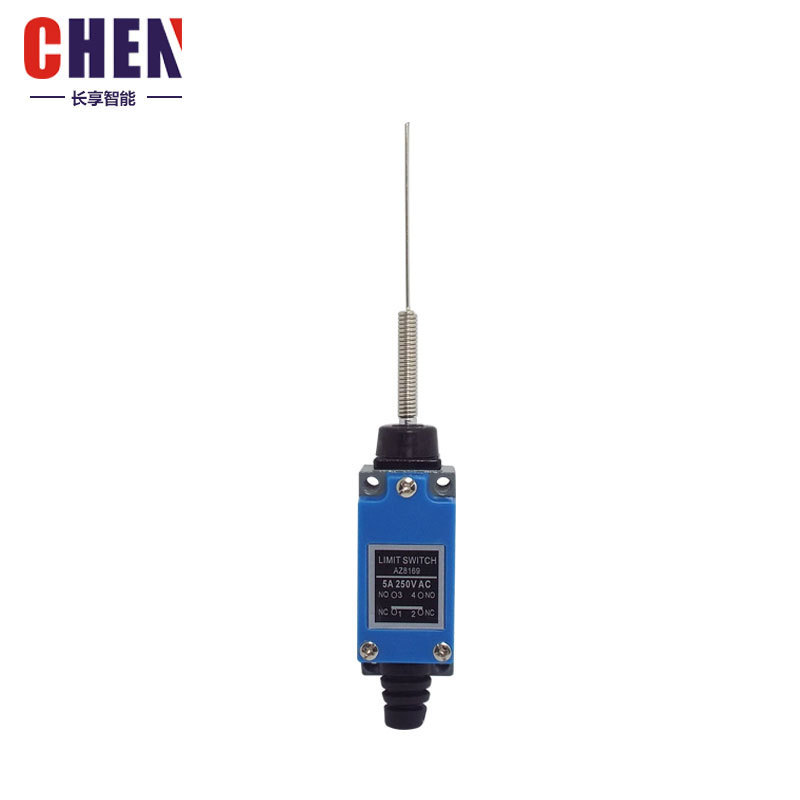

AZ-8169 Electric Speed Limit Switch Mini Switch Safety Roller Lever Type Limit Switch
Application:
AZ 8000 series high precision limit switch is suitable for the control circuit and auxiliary circuit of AC 50Hz or 60Hz,rated voltage up to 380V,DC voltage up to 220V.It is electric components for control,position limit,travel limit,signal interlock of machine tool automation equipment.Safe and reliable,economy,dust and oil proof,small installation size,the products are for general use and complies to the standard GB 14048.5
|
Protection grade |
IP65 |
|
Operating frequency |
Machinery:120times/minute |
|
|
Electrical:30times/minute |
|
Mechanical life |
1,000,000 times |
|
Electrical life |
300,000times |
|
Insulation resistance |
≥100MΩ(DC500V) |
|
Contact resistance |
≤15MΩ |
|
Environment temperature |
-5℃~+65℃ |
|
Humidity |
≤95% |
|
Dielectric strength |
Between non-connect terminal:(1000V)50/60Hz /min |
|
|
Between non voltage metal parts and earth terminal:(2000V)50Hz/m |
|
|
Between grounding and each terminal (2000V)50Hz/min |
|
Rated voltage |
AC 380V DC220V |
|
Rated Control Capacity |
AC100VA DC 30W |
