Quick Details
-
Voltage:
-
220V/380V can be customized
-
Power:
-
9kw
-
Dimension(L*W*H):
-
16000*1000*1600mm
-
Weight:
-
3500 KG
-
Machinery Function:
-
chocolate bar making machine
-
Output product name:
-
chocolate
-
Conveyor Belt Width(mm):
-
0-20
-
Single Grain Weight(g):
-
0-10
-
Cooling Tunnel Temperature℃:
-
10-30
-
Product name:
-
Chocolate Production Line
-
Function:
-
Chocolate Making Machine Production Line
-
Material:
-
304stainless Steel
-
Capacity:
-
200-2000KG/H
Quick Details
-
Marketing Type:
-
Hot Product
-
Brand Name:
-
LFM
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220V/380V can be customized
-
Power:
-
9kw
-
Dimension(L*W*H):
-
16000*1000*1600mm
-
Weight:
-
3500 KG
-
Machinery Function:
-
chocolate bar making machine
-
Output product name:
-
chocolate
-
Conveyor Belt Width(mm):
-
0-20
-
Single Grain Weight(g):
-
0-10
-
Cooling Tunnel Temperature℃:
-
10-30
-
Product name:
-
Chocolate Production Line
-
Function:
-
Chocolate Making Machine Production Line
-
Material:
-
304stainless Steel
-
Capacity:
-
200-2000KG/H
LG-CJZ175S Automatic Small Chocolate Injection Molding Moulding Machine Chocolate Bar Making Machine
Introduction of Chocolate Bar Making Machine
The chocolate bar making machine can both be used for the production of single color, two colors (left and right) and pastes central fling chocolates. These two models have fully automatic functions of mouldspre-heating, depositing, moulds vibrating, cooling, de-moulding and conveying, and adopt PLC control system.
This Center Filling Chocolate Depositor is suitable for customers with small and medium production needs.
This machine is a modular depositing machine, which can be used alone or in combination, and can be configured with molds heater, vibrations, and vertical cooling tunnel and the demoulding device to form a whole fully automatic depositing line, and any independent mechanism that meets customer needs such as pellets and biscuits can be combined in series to realize automated production.
You can also repair and move the equipment at will according to the customer.
Single Head Chocolate Depositing Machine
can produce single-color, left-right two-color and paste sandwich chocolate products. It is a set of baking mold, pouring, vibrating, cooling, demolding and conveying.
Double Heads Chocolate Depositing Machine
can also produce left and right two-color chocolate. It integrates drying mold, secondary casting, secondary vibration mold, secondary cooling, demoulding and conveying.
Parameters Of Small Chocolate Moulding Machine
Features of Chocolate Molding Machine
1. Accurate pouring quantity: using frequency conversion (servo) motor stroke to control pouring quantity, pouring quantity control is accurate, and the error does not exceed 2G.
2. Precise template positioning: no template, no pouring, accurate control.
3. Multiple functions: it can produce single-color, left-right double-color and paste-filled chocolate products (single-head pouring machine).
4. Wide application template, easy to change type: by changing different templates, it can realize the change of different shapes of products.

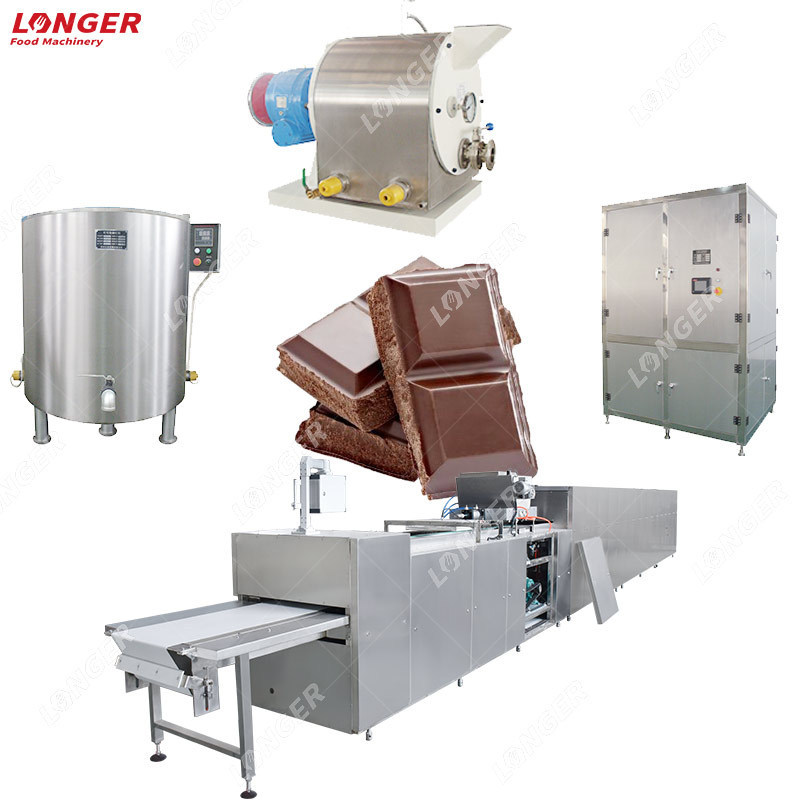

We Also Can Supply You Chocolate Making Machine From A To Z
♦ Special Note:
Customers who are interested in purchasing this product should first contact us to introduce the material characteristics and production requirements to be processed, and confirm the basic application before purchasing.
