Quick Details
-
Warranty:
-
12 Years For Material And Processing
-
Brand Name:
-
Longi
-
Model Number:
-
LR5-54HTB 410-425M
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1722 * 1134 * 30 mm
-
Product name:
-

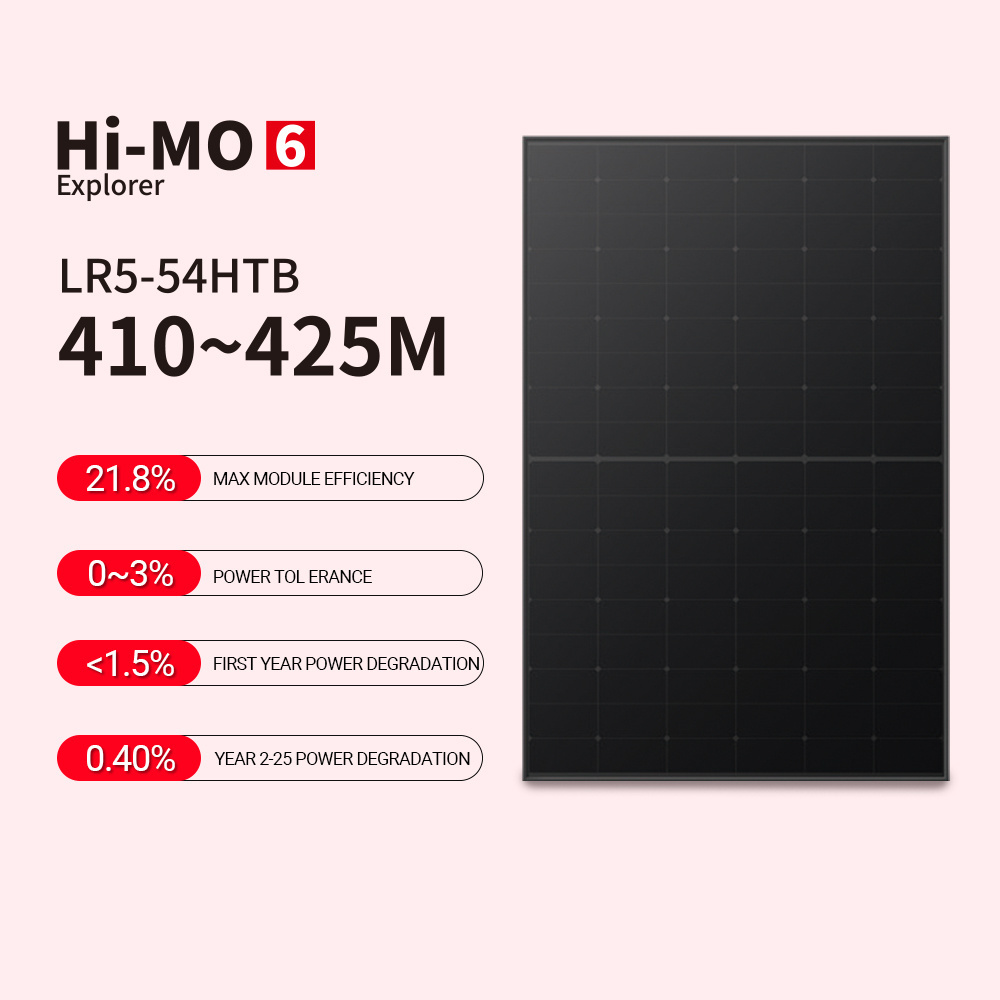

Longi Hi-MO6 108 Half Cells Solar Panel
-
Junction Box:
-
IP68,3 diodes
-
Frame:
-
Anodized Aluminium Alloy
-
weight:
-
20.8kg
-
Front Glass:
-
3.2mm Coated Tempered Glass
-
Solar cell:
-
108(6*18)
-
Application:
-
Solar Energy System
-
Packing:
-
36pcs per pallet
-
Certificate:
-
TUV/CE/ISO/CQC/PICC
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
21.0%-21.8%
-
Warranty:
-
12 Years For Material And Processing
-
Brand Name:
-
Longi
-
Model Number:
-
LR5-54HTB 410-425M
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1722 * 1134 * 30 mm
-
Product name:
-
Longi Hi-MO6 108 Half Cells Solar Panel
-
Junction Box:
-
IP68,3 diodes
-
Frame:
-
Anodized Aluminium Alloy
-
weight:
-
20.8kg
-
Front Glass:
-
3.2mm Coated Tempered Glass
-
Solar cell:
-
108(6*18)
-
Application:
-
Solar Energy System
-
Packing:
-
36pcs per pallet
-
Certificate:
-
TUV/CE/ISO/CQC/PICC
Product Description
|
Module Type
|
LR5-54HTB-410M
|
LR5-72HPH-565M
|
LR5-54HTB-415M
|
LR5-72HPH-575M
|
LR5-54HTB-420M
|
LR5-54HTB-425M
|
|||||
|
Testing Condition
|
STC NOCT
|
|
STC NOCT
|
|
STC NOCT
|
STC NOCT
|
|||||
|
Maximum Power (Pmax/W)
|
410 306
|
|
415 310
|
|
420 314
|
425 318
|
|||||
|
Open Circuit Voltage(Voc/V)
|
38.63 36.27
|
51.76V
|
38.83 36.46
|
52.06V
|
39.03 36.65
|
39.23 36.83
|
|||||
|
Short Circuit Current (Isc/A)
|
13.70 11.07
|
14.01A
|
13.78 11.13
|
14.14A
|
13.85 11.19
|
13.93 11.25
|
|||||
|
Voltage at Maximum Power(Vmp/V)
|
32.36 29.53
|
43.61V
|
32.56 29.71
|
43.91V
|
32.76 29.89
|
32.96 30.08
|
|||||
|
Current at Maximum Power(Imp/A)
|
12.67 10.37
|
1296A
|
12.75 10.44
|
13.10A
|
12.83 10.50
|
12.90 10.56
|
|||||
|
Module Efficienty
|
21.0%
|
21.9%
|
21.3%
|
22.3%
|
21.5%
|
21.8%
|
|||||
|
Power Output Tolerance
|
±3%
|
|
|
|
|
|
|||||
|
Nominal Operating Cell Temperature
|
45±2°C
|
|
|
|
|
|
|||||
|
Operating Temperature
|
-40°C+85°C
|
|
|
|
|
|
|||||
|
Maximum Series Fuse Rating
|
25A
|
|
|
|
|
|
|||||
|
Maximum System Voltage
|
DC1500V(IEC)
|
|
|
|
|
|
|||||
