SZ10-R1A-M controller is compliant with IEEE802.15.4 protocol of Zigbee communication standard. It has the advantages of far
communication distance, strong anti-interference capability and flexible networking, realizing peer-to-peer and peer-to-multi peer
transparent data transmission among devices, and constructing star network or mesh network topology.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Shuncom (OEM is acceptable)
-
Voltage:
-
220V
-
Name:
-
Smart Streetlight Control and Monitoring System for led street light
-
Application:
-
Control Lights
-
Certificates:
-
CE ROHS EMC
-
IP Grade:
-
IP65
-
Wireless Frequency:
-
2.4G
-
Dimming Control Type:
-
0-10V/PWM
-
Transmission Distance:
-
800 meters
-
Working temperature:
-
-40℃~+85℃
-
Product Output:
-
Single phase alternating current
Quick Details
-
Type:
-
Remote Control
-
Max. Load Power:
-
400W
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Shuncom (OEM is acceptable)
-
Voltage:
-
220V
-
Name:
-
Smart Streetlight Control and Monitoring System for led street light
-
Application:
-
Control Lights
-
Certificates:
-
CE ROHS EMC
-
IP Grade:
-
IP65
-
Wireless Frequency:
-
2.4G
-
Dimming Control Type:
-
0-10V/PWM
-
Transmission Distance:
-
800 meters
-
Working temperature:
-
-40℃~+85℃
-
Product Output:
-
Single phase alternating current
Specification
|
Technical Information
|
|
|
Dimensions
|
118.3×43×30(mm)
|
|
Transmission Distance
|
800M
|
|
Product Output
|
Single-phase AC
|
|
Data Collection
|
U,I,P.Q.W.COSΦ
|
|
Antenna Band
|
2.4G
|
|
Antenna Gain
|
3DB
|
|
Antenna VSWR
|
≤2.0
|
|
Antenna Type
|
External
|
Product Description
Product Details
Product Details

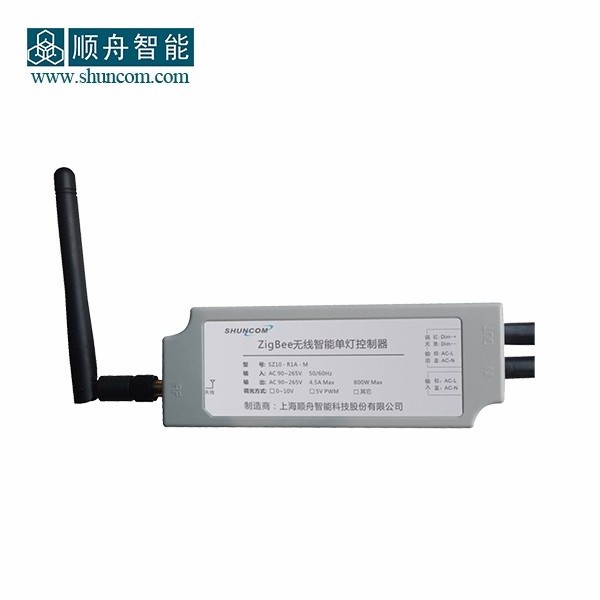

SZ10-R1A-M single-lamp controller consists of current, voltage and electric energy metering circuit which collect real-time load
performance and power consumption of single-lamp controller. It helps to largely reduce work load of street lamp management
department, and improve working efficiency, therefore significantly improve energy-saving benefits of all society.
Installation Process
