Quick Details
-
Weight (KG):
-
420
-
Power:
-
CNC
-
Extra Services:
-
Slotting & Notching
-
Feeding System:
-
Rolling-typed continuous feeding device
-
Slotting System:
-
Plane cutter and alloy knife double cutters slotting system
-
Bending System:
-
Double blade alternate bending system
-
Suitable Materia:
-
Stainless steel ,galvanized sheet,aluminium,aluminium profile
-
Min.bending radius:
-
15-145mm
-
Input File Format:
-
.dxf .plt
-
Machine Dimensions:
-
L1250mm * W680mm * H1430mm
-
Product name:
-

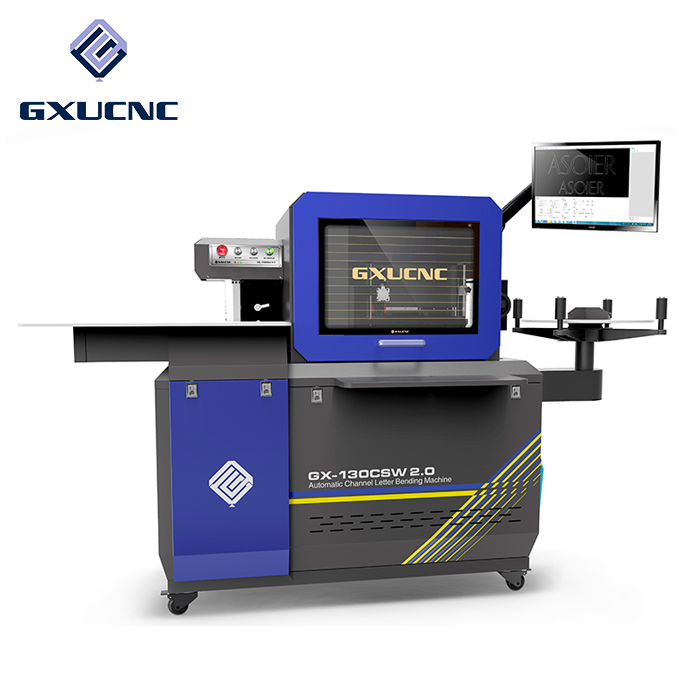

GX130CSW China Factor channel acrylic letter bending machine
-
Certification:
-
ce, ISO 9001:2000
-
After-sales Service Provided:
-
Online support, Field maintenance and repair service, Video technical support
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
Viet Nam, Mexico, Malaysia, South Korea, Algeria
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GXUCNC
-
Year:
-
2016
-
Weight (KG):
-
420
-
Power:
-
CNC
-
Extra Services:
-
Slotting & Notching
-
Feeding System:
-
Rolling-typed continuous feeding device
-
Slotting System:
-
Plane cutter and alloy knife double cutters slotting system
-
Bending System:
-
Double blade alternate bending system
-
Suitable Materia:
-
Stainless steel ,galvanized sheet,aluminium,aluminium profile
-
Min.bending radius:
-
15-145mm
-
Input File Format:
-
.dxf .plt
-
Machine Dimensions:
-
L1250mm * W680mm * H1430mm
-
Product name:
-
GX130CSW China Factor channel acrylic letter bending machine
-
Certification:
-
ce, ISO 9001:2000
-
After-sales Service Provided:
-
Online support, Field maintenance and repair service, Video technical support
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
Viet Nam, Mexico, Malaysia, South Korea, Algeria
Machine features:
Fully functional, which has combined both the plate and profile processing. This system integrated the most convenient switching function of material and cutter, the design of double slotting cutter and double bending tools can easily deal with stainless steel, galvanized sheet, aluminum plate and aluminum profile and materials processing.Now the machine is the highest rate of return on investment in the market.
- Double bending tools bending system, spceial designed bending tools and the tools edge, capable of bending with plate and profile. Better choice for small angle and radian bending.
- Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel, using milling cutter for Aluminum plate and Aluminum profiles.
- Continual rolling press feeding, fast and precise, continual respond, shorten the time of feeding. The close-loop control from length encoder and system itself, makes possible to avoid the material slipping.
|
Technical Parameters |
|||
|
Feeding System |
Rolling-typed continuous feeding device |
||
|
Min.Bending Angle |
Stainless steel, galvanized sheet,aluminium R6, aluminium profile R8 |
||
|
Slotting System |
Plane cutter and alloy knife double cutters slotting system |
||
|
Input File Format |
.dxf .plt |
Size Accuracy |
±0.1mm |
|
Bending System |
Double blade alternate bending system |
||
|
Suitable Materia |
Stainless steel ,galvanized sheet,aluminium,aluminium profile |
||
|
Machine Dimensions |
L1250mm * W680mm * H1430mm |
||
|
Material Height |
15-125mm |
Power |
AC220V 50Hz 2.2KW |
|
Toltal Weight |
420 KG G.W |
Air Source |
0.6M²/Min |
|
Material Thickness |
Stainless/galvanized sheet<0.9mm, aluminium <1.5mm, aluminium profile <1.0mm |
||
|
Packing Dimensions |
L1370mm * W860mm * H1500mm |
||
The advertising industry: Super letters, Steel letters, Piercing letters, Rimless letters.
Applied materials: The aluminium profile for Super letters, Stainless steel, Galvanized sheet, Aluminium coil.
Packaging: Standard plywood package, professional package for international trade
Shipping:
We will send out the machine by sea way to your nearest port general .
If you want to send by DHL or any other shipping way,please contact us in advance.
For shipping purpose, please tell us your phone number and detail contact information after you confirm the order.
