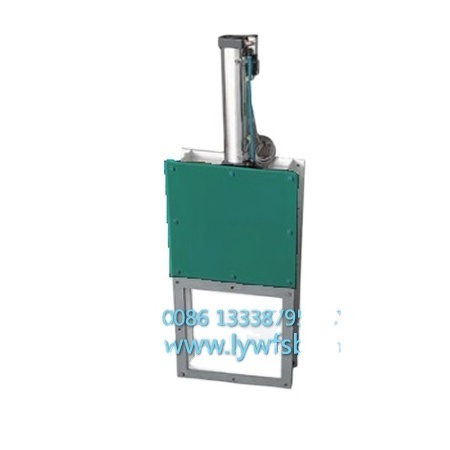

TZMQ series pneumatic control valve
Stainless Steel Pneumatic Valve
Industrial pneumatic slide gate / valve for material discharging
1. Main Performance Features
1.1.It applies to grain, food, feed, oil and chemical processing industry. It is the necessary equipment for auto-control.
1.2.It is for control of materials entering in and out. The cylinder is adopted to push connection rod to move and easy
operation;or by manual control.
1.3.Compact structure, nice appearance, easy to operate, safety reliably sealing.
1.4.It can be customized according to customer’s requirement.
- Product Details
- {{item.text}}
Quick Details
-
Structure:
-
Safety
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WF
-
Model Number:
-
TZMQ
-
Port Size:
-
3/4"
-
Product name:
-
TZMQ series pneumatic Slide Gate valve/flow control valve
-
Standard or Nonstandard:
-
Standard
-
Model:
-
TZMQ
-
Size:
-
Custom Made
-
Valve type:
-
2-way / 3-way
-
Body material:
-
Carbon Steel
-
MOQ:
-
1 Piece
-
Packing:
-
Wooden Case
-
Color:
-
White
-
Connection:
-
Flange Ends
Quick Details
-
Type:
-
Gate Valves
-
Application:
-
General
-
Power:
-
Solenoid
-
Structure:
-
Safety
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WF
-
Model Number:
-
TZMQ
-
Port Size:
-
3/4"
-
Product name:
-
TZMQ series pneumatic Slide Gate valve/flow control valve
-
Standard or Nonstandard:
-
Standard
-
Model:
-
TZMQ
-
Size:
-
Custom Made
-
Valve type:
-
2-way / 3-way
-
Body material:
-
Carbon Steel
-
MOQ:
-
1 Piece
-
Packing:
-
Wooden Case
-
Color:
-
White
-
Connection:
-
Flange Ends
Product Description
Specification
|
Model
|
Capacity(T/H)
|
Active area(MM)
|
Working pressure(MP)
|
Weight(KG)
|
|
TZMQ20*20
|
25
|
200*200
|
0.4-0.8
|
20
|
|
TZMQ25*25
|
50
|
250*250
|
0.4-0.8
|
30
|
|
TZMQ32*32
|
100
|
320*320
|
0.4-0.8
|
36
|
|
TZMQ40*40
|
150
|
400*400
|
0.4-0.8
|
50
|
|
TZMQ50*50
|
200
|
500*500
|
0.4-0.8
|
76
|
|
TZMQ60*60
|
300
|
600*600
|
0.4-0.8
|
125
|
|
TZMQ70*70
|
400
|
700*700
|
0.4-0.8
|
148
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
