Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
haiyu
-
Voltage:
-
380v/220v
-
Power:
-
11KW
-
Dimension(L*W*H):
-
Costomzied
-
Weight:
-
1.5 kg
-
Warranty:
-
12 monthd, 1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
RCC concrete drainage pipe machine:
-
drainage pipe
-
Keyword:
-
Concrete Pipe Machine
-
Product name:
-
Precast Concrete Pipe Moulds Concrete Pipe Machine
-
Certification:
-
ISO9001
-
Length:
-
from 1m to 2.5m
-
Service:
-
turn-key service
-
Diameter:
-
From 300mm to 2500mm
Quick Details
-
Pipe Material:
-
CONCRETE
-
Core Components:
-
-
-
Production Capacity:
-
2 pipe/mold
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
haiyu
-
Voltage:
-
380v/220v
-
Power:
-
11KW
-
Dimension(L*W*H):
-
Costomzied
-
Weight:
-
1.5 kg
-
Warranty:
-
12 monthd, 1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
RCC concrete drainage pipe machine:
-
drainage pipe
-
Keyword:
-
Concrete Pipe Machine
-
Product name:
-
Precast Concrete Pipe Moulds Concrete Pipe Machine
-
Certification:
-
ISO9001
-
Length:
-
from 1m to 2.5m
-
Service:
-
turn-key service
-
Diameter:
-
From 300mm to 2500mm
Concerete Pipe Making Machine
一、 Product Introduction
According to different national standards and sizes and other details, the production of concrete pipes is divided into the following processes:
cement pipe molds are divided into different forms of molds such as flat molds tongue and groove molds and socket molds,which are made according to the interface form of cement pipes the cement pipe has the national cement pipe production standard welding and has strong touyhness and deformation

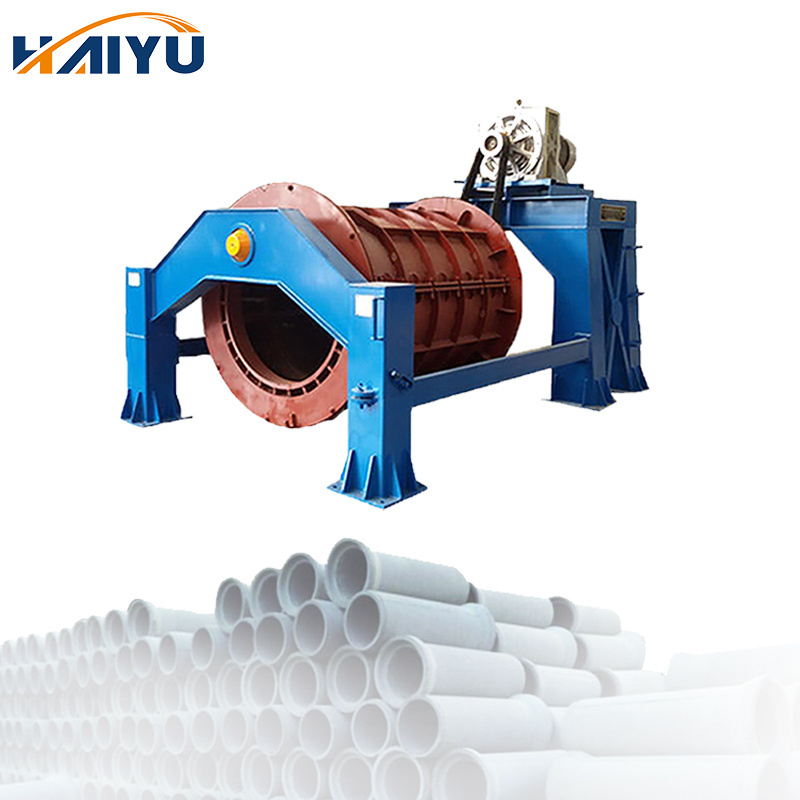

Suspension roller concrete pipe machine
-Suspension roller concrete pipe machine
The Suspension Roller Machine is the most widely used cement pipe making machine, is forming equipment that adopts the suspension roller method to produce reinforced concrete drainage pipes and three-stage prestressed concrete water pipes, which can produce various types of pipes with inner diameter of 300mm -2400mm and length of1m-4m, shape of flat Joint, tongue and groove, steel socket
Product Advantages：
1. Feeding and suspension roll forming are caried out at the same time, the forming time is short, the production efficiency is high, and each tube can be formed in only a few minutes;
2. Using dry hard concrete, the pipe wall is dense, and the strength of the pipe body to withstand external pressure loads is high;
3. Less waste of concrete, no waste water slurry discharge, no pollution of the environment.
4.Low intensity of high frequency noise generated during tube making.
|
Model
|
Length（mm）
|
Spindle diameter（mm）
|
Motor Power（kw）
|
Dimensions（mm）
|
|
300-600
|
1000
|
120
|
7.5
|
2500*1500*1300
|
|
|
2000
|
120
|
15
|
3500*1500*1300
|
|
|
3000
|
120
|
22
|
4500*1500*1300
|
|
800-1200
|
2000
|
180
|
45
|
4500*2200*1800
|
|
|
2500
|
240
|
45
|
5000*2200*1800
|
|
|
3000
|
240
|
55
|
5500*2200*1800
|
|
|
4000
|
300
|
75
|
6500*2200*1800
|
|
800-1500
|
2000
|
350
|
75
|
4500*2500*2080
|
|
|
2500
|
350
|
75
|
5000*2500*2080
|
|
1200-2000
|
2000
|
500
|
90
|
5000*2800*2080
|
Centrifuge Concrete Pipe Making Machine
-Centrifuge pipe making machine
Centrifuge machine is a kind of mechanical equipment for forming reinforced concrete drainage pipes. The centrifuge host consists of supporting wheel, shaft, bearing seat, bearing, pulley, base and electric control part.
The rollers is with tow types:double rollers and three rollers .the concrete used is wet type ,It can produce the reinforced concrete pipe with inner diameter 200mm-1500mm,length 2m-6m,joint shape of flat joint ,tongueand groove steel socket.It is widely used in water supply and drainage projects ,the production efficiency is 4-5pipes/hour
Compared with the suspension roller process,the concrete has higher compactness after centrifugal forming,the position of the steel skeleton is stable
|
Ltem
|
Name
|
Unit
|
Model
|
|
|
|
|
|
|
Double Roller
|
Three Rollers
|
|
|
1
|
Roller distance
|
mm
|
1870
|
|
|
|
2
|
Roller shaft distance
|
mm
|
1500-2800
|
|
|
|
3
|
Roller diameter
|
mm
|
800-920
|
|
|
|
4
|
Roller width
|
mm
|
100
|
|
|
|
5
|
The angle between the roller center and mold center
|
（°）
|
75°-110°
|
|
|
|
6
|
Length Range
|
m
|
2-4
|
|
|
|
7
|
Flush pipe、tongue and groove
|
mm
|
2600
|
1800
|
|
|
8
|
spigot &socket
|
|
1800
|
1800
|
|
|
8
|
Motor power
|
kw
|
37-90
|
55-132
|
|
|
9
|
Driving shaft rotation speed
|
r/min
|
100-500（Promise）
|
100-500（Promise）
|
|
Q:Do you have set up an independent factory?
A:We have our own factory. Has the specialized cement machinery product equipment factory, also has the large-scale cement drain pipe production factory.
Q:What can you do for us?
A:1. Before sales can be targeted to give some constructive Suggestions.
2.Make a specific plan for your needs.
3. After sales reference specific products, different products have different services. Refer to the specific product description.
Q: Can you do the basic design for us?
A: Yes, we have a professional team with rich experience in basic design of cement pipe making equipment with CAD software. You just need to tell us your ideas and requirements, and we will provide you with the most perfect design.
Q:Can your engineers train our workers in our factories?
A:Yes, we have a very large engineering installation team that can train and instruct your workers to operate the installation equipment.
Q:If we provide the parameter requirements, can we make it to order?
A:We provide customized services as long as you provide the appropriate drawings and product requirements.
Q:How long is your lead time?
A:Our delivery time varies according to the quantity of the order, usually around 30 days.
