Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
L:1380*W:790*H:3 mm
-
Panel Efficiency:
-
19.26%
-
Product name:
-

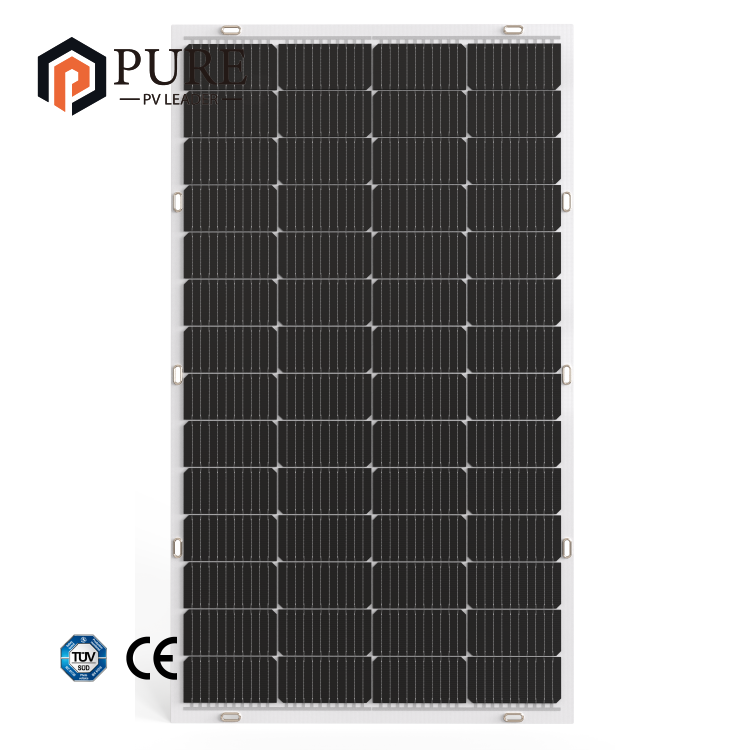

Flexible solar panel 210W-220W
-
Solar Cell:
-
Monocrystalline Silicon Cells
-
Application:
-
Roofs, balconies, caravans, yachts, gardens, carports
-
Junction Box:
-
IP 67
-
Color:
-
Customized Color
-
Output Cables:
-
4mm²
-
Cable length:
-
(+)/(-)300mm
-
Connector:
-
MC4
-
Surface material:
-
Special ETFE
-
NOCT(Nominal Operating Cell Temperature):
-
41 ± 2℃
Quick Details
-
Cell size:
-
182mmx91mm
-
Brand Name:
-
PURE
-
Model Number:
-
PURES-210-F6MG
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
L:1380*W:790*H:3 mm
-
Panel Efficiency:
-
19.26%
-
Product name:
-
Flexible solar panel 210W-220W
-
Solar Cell:
-
Monocrystalline Silicon Cells
-
Application:
-
Roofs, balconies, caravans, yachts, gardens, carports
-
Junction Box:
-
IP 67
-
Color:
-
Customized Color
-
Output Cables:
-
4mm²
-
Cable length:
-
(+)/(-)300mm
-
Connector:
-
MC4
-
Surface material:
-
Special ETFE
-
NOCT(Nominal Operating Cell Temperature):
-
41 ± 2℃
|
ITEM
|
|
PURES-210-F6MG
|
PURES-215-F6MG
|
PURES-220-F8MH
|
||||
|
Maximum Power (Pmax )
|
|
210W
|
215W
|
220W
|
||||
|
Maximum Power Voltage (Vmp)
|
|
16.2V
|
16.3V
|
16.4V
|
||||
|
Maximum Power Current(Imp )
|
|
13.1A
|
13.3A
|
13.5A
|
||||
|
Open- circuit Voltage (Voc)
|
|
19.4V
|
19.5V
|
19.6V
|
||||
|
Short-circuit Current（Lsc）
|
|
13.7A
|
13.9A
|
14.2A
|
||||
|
Module Efficiency（%）
|
|
19.26%
|
19.72%
|
20.18%
|
||||
|
Operating Temperature
|
|
|
-40 ℃ to 85 ℃
|
|
||||
|
Maximum System Voltage
|
|
|
600VDC
|
|
||||
|
Maximum Series Fuse Rating
|
|
|
15 A
|
|
||||
|
Application Class
|
|
|
Class A
|
|
||||
|
Power Tolerance
|
|
|
0~+5 W
|
|
||||
|
STC:Irradiance 1000W/m² , module temperature 25℃ , AM=1.5
|
|
|
|
|
||||
