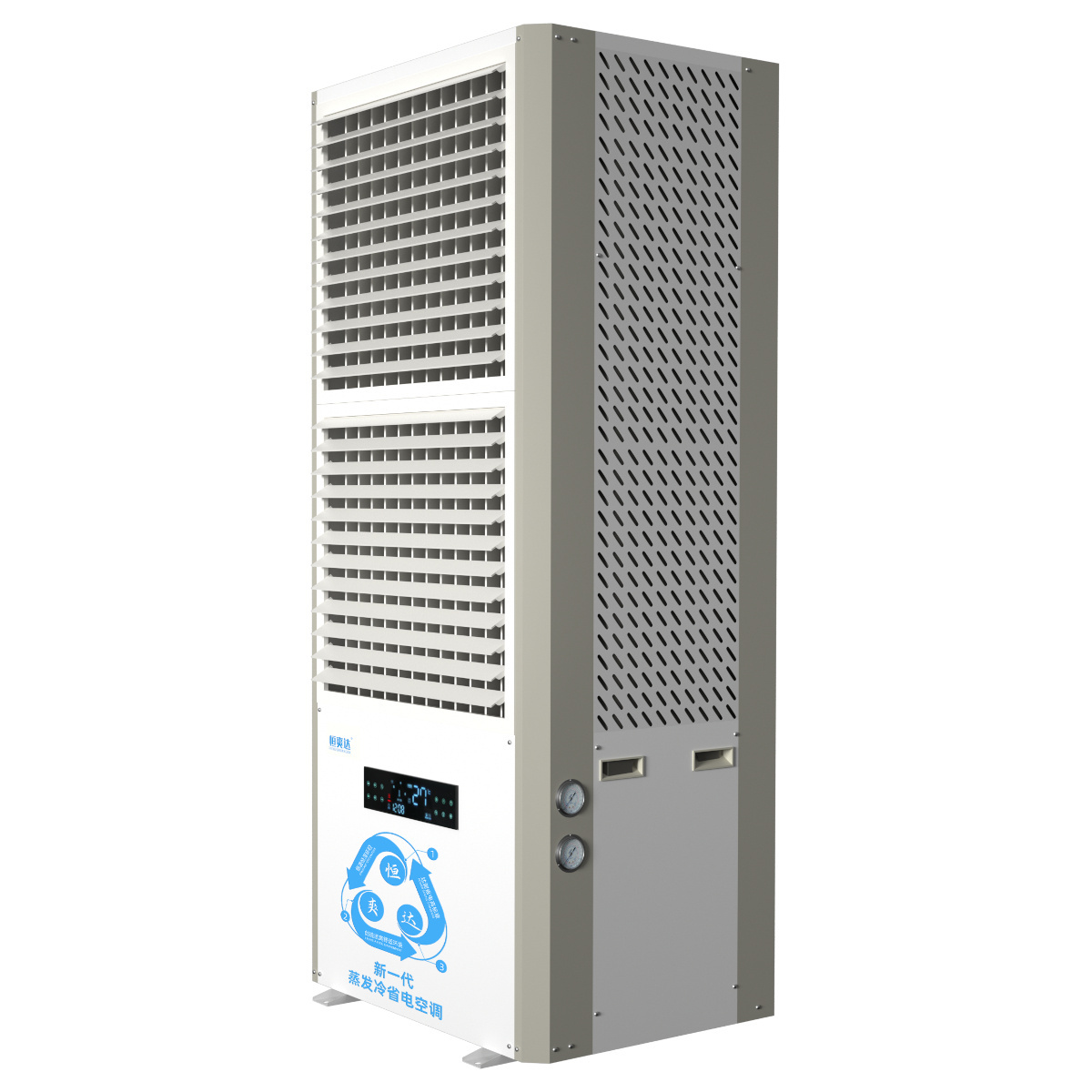

Industrial Heavy Duty Floor Standing Electric Cabinet and Compressor Air Conditioner Cooling Unit for Warehouse Cooling

Industrial Heavy Duty Floor Standing Electric Cabinet and Compressor Air Conditioner Cooling Unit for Warehouse Cooling

FOB Reference Price: Get Latest Price

≥1 Pieces

US $3020

≥10 Pieces

US $2220

≥20 Pieces

US $1370

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Hengshuangda

Dimension(L*W*H):: 765x600x1765

Core Components:: Compressor

Weight (KG):: 300 KG

Product name:: industrical air conditioner

Refrigerant Type:: R22 / 2800g

Cooling capacity:: 25KW

Voltage:: 110-415V

SEER:: 4.60Wh /Wh

Control:: LCD+Remote Control

Function:: Cooling Ventilation Humidification

Application Area:: 150-400 sqm

Application:: Plant

Quick Details

Type:: Cabinet Air Conditioner

Mounting:: Floor Standing

Airflow:: 8000m³/h

Place of Origin:: Guangdong, China

Brand Name:: Hengshuangda

Dimension(L*W*H):: 765x600x1765

Core Components:: Compressor

Weight (KG):: 300 KG

Product name:: industrical air conditioner

Refrigerant Type:: R22 / 2800g

Cooling capacity:: 25KW

Voltage:: 110-415V

SEER:: 4.60Wh /Wh

Control:: LCD+Remote Control

Function:: Cooling Ventilation Humidification

Application Area:: 150-400 sqm

Application:: Plant

Energy-Saving Air Conditioner with Professional Panasonic Compressor

1.Energy-Saving

Saves more than 40% electricity, only around 4 kw·h electricity a day.

2.Efficient cooling

Fast cooling and brilliant cooling effect.

3.Low Noise

Low noise operation.

4. Wide area coverage

Cover large area 150-400㎡ (according to different models).

5.I ntelligent control

Remote control and app control.

6.Compressor

Compressor air conditioner (main machine) + water evaporate cooling machine.

7.Easy to Install

Easy to install, no copper pipes needed, plumbers can install. Includes UV sterilization, air purify and dehumidify functions.

8.Air Outlet

3 types of air outlet to choose from, meets all kinds of cooling requirements.

For products that require installation and use, we can provide online installation guidance and installation tools. A professional design team can design Cooling and Ventilation solutions for free. Respond to after-sales issues within 24 hours.

Product Parameters

Inner M odel number：HSD-A-10PD

Rated voltage/frequency：380V3N/50HZ

Compressor: Panasonic Cooling Capacity：20KW = 68288BTU Maximum air volume：8000m³/h Rated power：4.5KW Maximum operating current： 7.5A Water flow：4.2m³/h Protection against electric shock grade： I Applicable temperature range： 5℃-43℃ Noise level (Class A sound pressure)： ≤68dB Water inlet pipe： DN20 Water outlet pipe：DN32 Application area： 150-200㎡ Refrigerant type： R22/2800G Size： 765*600*1765MM Weight：165KG

Inner Model number：HSD-A-16PS Rated voltage/frequency：380V3N/50HZ

Compressor: Copeland Cooling Capacity：28KW = 95603BTU Maximum air volume：16000m³/h Rated power：4.2KW Maximum operating current： 11.5A Water flow： 4.2m³/h Protection against electric shock grade： I Applicable temperature range： 5℃-43℃ Noise level (Class A sound pressure)： ≤68dB Water inlet pipe： DN20 Water outlet pipe：DN32 Application area： 250-350㎡ Refrigerant type： R22/2950G Size： 765*600*1970MM Weight：216KG

Inner Model number：HSD-A-12PSL Rated voltage/frequency：380V3N/50HZ

Compressor: Panasonic Cooling Capacity：20KW = 68288BTU Maximum air volume：8000m³/h Rated power：4.5KW Maximum operating current： 7.5A Water flow： 4.2m³/h Protection against electric shock grade： I Applicable temperature range： 5℃-43℃ Noise level (Class A sound pressure)： ≤68dB Tap water inlet pipe： DN20 Tap water outlet pipe：DN32 Application area： 100-150㎡ Refrigerant type： R22/2950G Size： 765*600*1770MM Weight：187KG

Inner Model number：HSD-A-21PSL Rated voltage/frequency：380V3N/50HZ

Compressor: Copeland Cooling Capacity：28KW = 95603BTU Maximum air volume：16000m³/h Rated power：6.5KW Maximum operating current ：11.5 A Water flow： 4.2m³/h Protection against electric shock grade： I Applicable temperature range： 5℃-43℃ Noise level (Class A sound pressure) ： ≤68dB Tap water inlet pipe： DN20 Tap water outlet pipe：DN32 Application area：150-200㎡ Refrigerant type： R22/2800G Size： 765*600*1770MM Weight：200KG

Inner Model number：HSD-A-21PGD Rated voltage/frequency：380V3N/50HZ

Compressor: Panasonic Cooling Capacity：20KW = 68288BTU Maximum air volume：8000m³/h Rated power：4.5KW Maximum operating current： 7.5A Water flow：4.2m³/h Protection against electric shock grade： I Applicable temperature range： 5℃-43℃ Noise level (Class A sound pressure)： ≤68dB Tap water inlet pipe： DN20 Tap water outlet pipe：DN32 Application area： 150-200㎡ Refrigerant type： R22/2800G Size： 765*600*1770MM Weight：187KG

Outer Model number：HSD-A-10PDW

Rated voltage/frequency：380V3N/50HZ Maximum air volume：8000m³/h Rated power：550W Maximum operating current： 1.61A Water flow： 4m³/h Protection against electric shock grade： I Noise level (Class A sound pressure)： ≤63dB Tap water inlet pipe： DN20 Tap water outlet pipe：DN32 Size：910*750*1455MM Weight：109KG

Outer Model number：HSD-A-16PDW

Rated voltage/frequency：380V3N/50HZ Maximum air volume：8000m³/h Rated power：550W Maximum operating current： 1.61A Water flow： 7.2m³/h Protection against electric shock grade： I Noise level (Class A sound pressure)： ≤63dB（A） Tap water inlet pipe： DN20 Tap water outlet pipe：DN32 Size：910*750*1455MM Weight：119KG

Innovation VS Traditional

Why choose power saving air conditioner：

Innovation

1. Extra power saving

2. Fast cooling

3. Long distance air supply and cover large area

4. Any time anywhere, APP remote control

Saves about 15120 kW/h electricity in half a year

Traditional

1. High power consumption

2. Slow cooling

3. Short distance

4. Manual switch

Products Description

Compressor

Professional Panasonic

air conditioner compressor allows high performance.

High quality condenser

Internal thread copper pipe technology increase contact area, improve refrigerant utilization.

Extra large casing

Greatly improve compressor energy efficiency.

Water pump

Branded water pump.

Durable and high performance.

PVC water pipes

Durable and reasonable layout

Pressure gauge

Easy to judge if the machine is not running normally

Water inlet & outlet

Clear marking interface, neat and reasonable design

Any time anywhere, remote control and app control

UV ultraviolet sterilization make clean and fresh air

Original imported chip.

Precise refrigerant flow control, avoid uneven air flow, more power saving.

Water evaporate cooling machine has 5 different layers of filter.

1.External dust filter.

2.Incoming water purification and filtration.

3.Internal water debris filtration.

4.Water circulation filter.

5.Impurity purification.

Intelligent automatic dehumidification

Cooling Principle

1 Cool air 2 UV Sterilization Lamp

3 Evaporator 4 Air cooler

5 Filter 6 Compressor

7 Condenser 8 Water cooling

9 Cooling pump 10 Outdoor Air

11 Cooling pad 12 cooling pad

13 Outdoor Air 14 Air cooler

15 Hot air

why our air conditioner saves more energy？

Traditional air conditioners use air-cooled heat exchange mode, which is less efficient. Hengshuangda evaporative power-saving air conditioner uses water cooling combined with compressor air cooling to exchange heat. This allow more heat exchange and the refrigerant transported out more efficiently, reduce compressor load, thereby improve cooling efficiency. Energy efficiency ratio increased to 5.3-5.8.

Features： 1.Super power saving, only a quarter of electricity consumption comparing to normal air conditioners. No external copper pipe required, lowering cost. 2.Large air volume, air filter, fast cooling, brilliant cooling effect 3.Long distance air flow, wide angle wind flow. 4.Cover large area. 1 machine can cover 150-400㎡ according to different models. Saves energy and space. Wide application.

water evaporation machine structure and assembly

1 Exhaust vent 2 Water cooling pads 3 Filter 4 Water circulation inlet 5 Water circulation outlet 6 Tap water inlet 7 Drain

1 Power cord threading hole

2 Water circulation outlet

3 Water circulation inlet

Widely used in: Suitable for restaurant, exhibition hall, greenhouse, warehouse, workshop, factory, super market, shopping mall, etc.

LED control panel: multifunction and clear indication

1 Up and down wind swing button 2 wind speed

3 Water temperature light (can see compressor temperature) 4 room temperature 5 Fault light 6 WiFi indicator ,UV sterilize light 7 Up Switch 8 Mode Switch 9 Left and right wind swing button 10 timer button 11 time and time setting display 12 Left and right wind swing indicator 13 Up and down wind swing indicator 14Defrost indicator 15 drain indicator 16 auto mode indicator 17 cooling mode indicator 18 wind mode indicator 19 dehumidify indicator 20 Down switch 21 On/off switch 22 Lock button

Installation Instruction：

Confirm installation location (make sure the water evaporate cooling machine is at least 20cm apart from obstacles on 4 sides), Install ball valve in front and at the back of filter, connect water pipes, open water valve, run and test.
