Quick Details
-
Accuracy:
-
±0.5%F.S
-
Display range:
-
-1999~9999
-
Measured input:
-
Current 4-20mA
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KINGCREATE
-
Model Number:
-
KCM-84ARS
-
Accuracy:
-
±0.5%F.S
-
Display range:
-
-1999~9999
-
Measured input:
-
Current 4-20mA

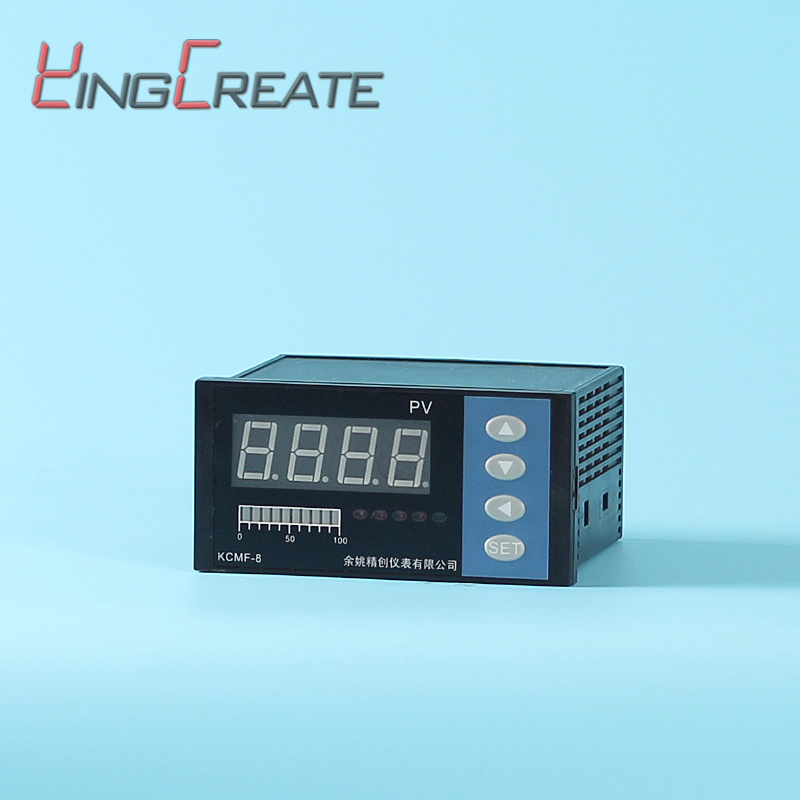

Digital Indicator features
1. The products is fully conpatible with pressure sensors, temperature sensors, displacement sensors and liquid-level sensors.
2. Display Mode:Digital display: -1999~9999, decimal place optional through settings;lightness bargraph display(level beams): 0-100%
3. Scale Display:This is a function of displaying Measured value (PV),PV is displayed in a span of from 0 to 100 %.
4. Can be output an alarm when the deviation, process value, set point, or manipulated value reaches a specified value.
5. With any model that supports communications, you can use communications , Modbus-RTU
6.With any model that provides a transfer process value as a 4 to 20 mA or 1 to 5 V transfer output.
There are 6 kinds of size for you to choose from:Panel mounted 96x96mm,72x72,80x160,48x96,96x48 or DIN Rail Mounted 107x88.
