Water mist cannon spraying machine is a kind of machine which can spray water and pesticides and other chemicals to disinfecting schools, and streets to protect the environment from the polluting of dust.
The intelligent controller mainly include: high pressure dust fan, water pump, nozzle, electric control box, remote control receiver, speed reducer, electric hydraulic push rod, rotating mechanism and the base.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
YK-SU60
-
Product name:
-
360 degree 60M rotation long range fog sprayer cannon for dust control
-
Application:
-
Street Dust Control, Industrial Dust Suppression
-
Function:
-
reducing the dust in the air, odor and chemical particles
-
Keywords:
-
fog sprayer, fog cannon sprayer
-
Fan power:
-
18.5kw
-
Spray distance:
-
30-150M
-
Spray flow:
-
60-80 m³ adjustable
-
Pump pressure:
-
1.5-3.0MPa adjustable
-
Atomized particles:
-
20~100μm
-
Air volume:
-
46800 m³
Quick Details
-
Sprayer Type:
-
Pump
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YORK
-
Model Number:
-
YK-SU60
-
Product name:
-
360 degree 60M rotation long range fog sprayer cannon for dust control
-
Application:
-
Street Dust Control, Industrial Dust Suppression
-
Function:
-
reducing the dust in the air, odor and chemical particles
-
Keywords:
-
fog sprayer, fog cannon sprayer
-
Fan power:
-
18.5kw
-
Spray distance:
-
30-150M
-
Spray flow:
-
60-80 m³ adjustable
-
Pump pressure:
-
1.5-3.0MPa adjustable
-
Atomized particles:
-
20~100μm
-
Air volume:
-
46800 m³
Product Description

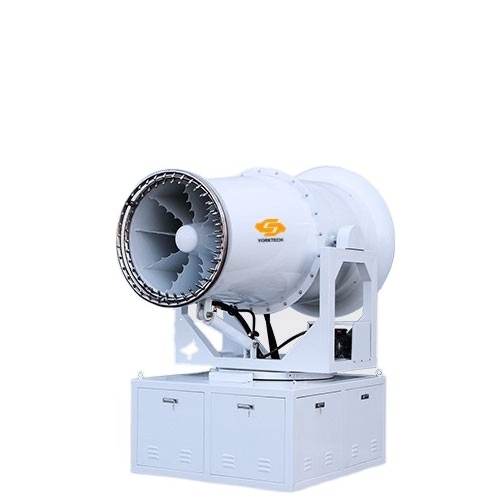

360 Degree 60M Rotation Long Range fog Sprayer Cannon for Dust Control
Product Paramenters
|
Model
|
Distance
m
|
Fan diameter
mm
|
Power
kw
|
Air volume
m³/h
|
Air pressure
Pa
|
Spray flow
I/min
|
|
YK-SU25
|
25
|
500
|
3.54
|
14200
|
1578
|
16-20
|
|
YK-SU30
|
30
|
520
|
5.05
|
14800
|
1578
|
25-30
|
|
YK-SU40
|
40
|
650
|
9.75
|
34560
|
2275
|
35-40
|
|
YK-SU50
|
50
|
650
|
14.75
|
36900
|
2275
|
40-60
|
|
YK-SU60
|
60
|
750
|
23.25
|
46800
|
2275
|
80-120
|
|
YK-SU70
|
70
|
1000
|
30.60
|
115000
|
3106
|
80-120
|
|
YK-SU80
|
80
|
1000
|
45.60
|
127500
|
3106
|
160-200
|
|
YK-SU100
|
100
|
1100
|
68.20
|
162000
|
3635
|
240-280
|
|
YK-SU120
|
120
|
1200
|
93.00
|
212000
|
3635
|
290-340
|
|
YK-SU130
|
130
|
1400
|
110.00
|
286000
|
3700
|
300-350
|
Features
1. Professional manufacturers with years of experience.
2. Good dust control effect, fine and even fog particles.
3. Significant humidification and cooling effect.
4. Strong power, long range, wide coverage, high efficiency, strong penetration.
5. Flexible installation, fixed to concrete platform or diesel generator driven vehicle.
6. Flexible,safe and reliable use.Remote control and manual control operations.
7. Effective water saving, 70-80% water saving compared with tank cars,with larger coverage area.
2. Good dust control effect, fine and even fog particles.
3. Significant humidification and cooling effect.
4. Strong power, long range, wide coverage, high efficiency, strong penetration.
5. Flexible installation, fixed to concrete platform or diesel generator driven vehicle.
6. Flexible,safe and reliable use.Remote control and manual control operations.
7. Effective water saving, 70-80% water saving compared with tank cars,with larger coverage area.
Application range
Wide Application of the Water Mist Cannon Spraying Machine:
The scope of application of smart dust controller products widely applicable to a variety of industry applications, usually smart dust machine controller, the uniform spray pattern and small droplet size has been shown to be effective in reducing the dust in the air, odor and chemical particles. Its main applications include:
1. Disinfection sprayer fog cannon machine to sterilize streets;
2. Control of excessive urban air, pollution, dust and haze, and urban environment;
3. Dust and temperature reduction in demolition sites, water conservancy dams, highways and bridges.
4. Dust pollution control in coal yard, mining area, port coal yard, power plant, steel plant, coke and so on.
5. Large-scale disinfection and epidemic prevention after airports, highways, stations, wharfs, garbage dumps and natural disasters;
6. Dust-lowering, moisturizing and temperature-lowering disinfection in sports venues, hot venues, etc.
7. Agricultural trees spraying, Spraying pesticide for vegetables.
1. Disinfection sprayer fog cannon machine to sterilize streets;
2. Control of excessive urban air, pollution, dust and haze, and urban environment;
3. Dust and temperature reduction in demolition sites, water conservancy dams, highways and bridges.
4. Dust pollution control in coal yard, mining area, port coal yard, power plant, steel plant, coke and so on.
5. Large-scale disinfection and epidemic prevention after airports, highways, stations, wharfs, garbage dumps and natural disasters;
6. Dust-lowering, moisturizing and temperature-lowering disinfection in sports venues, hot venues, etc.
7. Agricultural trees spraying, Spraying pesticide for vegetables.
