Quick Details
-
Brand Name:
-
YUYE
-
Model Number:
-
YES1-63MA
-
Rated Current:
-
63A
-
Product name:
-
ATS Changeover Switch
-
Pole:
-
3P,4P
-
Rated working voltage:
-
AC400V
-
Rated working current:
-
6A-63A
-
Frequency:
-
50/60Hz
-
Rated Impulse Withstand Voltage:
-
8kV
-
Transfer Time:
-
20ms
-
Weight (4 pole):
-
1KG
-
ODM&OEM:
-
Accepted
-
Warranty period:
-
12-18 months
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUYE
-
Model Number:
-
YES1-63MA
-
Rated Current:
-
63A
-
Product name:
-
ATS Changeover Switch
-
Pole:
-
3P,4P
-
Rated working voltage:
-
AC400V
-
Rated working current:
-
6A-63A
-
Frequency:
-
50/60Hz
-
Rated Impulse Withstand Voltage:
-
8kV
-
Transfer Time:
-
20ms
-
Weight (4 pole):
-
1KG
-
ODM&OEM:
-
Accepted
-
Warranty period:
-
12-18 months
Why Choose Us
Our advantage
One Two Three ELectric Co.,Ltd is the biggest ATS,LOAD BREAKER,CIRCUIT BREAKER manufacturer in China - more than 300 companys make
OEM,ODM order from us
OEM,ODM order from us
Rich Experience
Our factory was founded in 2004, have a long history in manufacturing and We have export to all over the world till now, The total
Annual sales is about USD17,000,000.We firmly promise to top quality, competitive price, quick delivery and good before/after
sales services. OEM,ODM service is welcomed.
Annual sales is about USD17,000,000.We firmly promise to top quality, competitive price, quick delivery and good before/after
sales services. OEM,ODM service is welcomed.
Quality warranty
We have our own factory, engi neer team and a set of equipment&n bsp;for the product test, Beside,we can control the production
(also mean we can control the lead -time) quality of the product very well. We have passed ISO9001:2008 Quality Management System
and CCC, CE
(also mean we can control the lead -time) quality of the product very well. We have passed ISO9001:2008 Quality Management System
and CCC, CE
Products Description

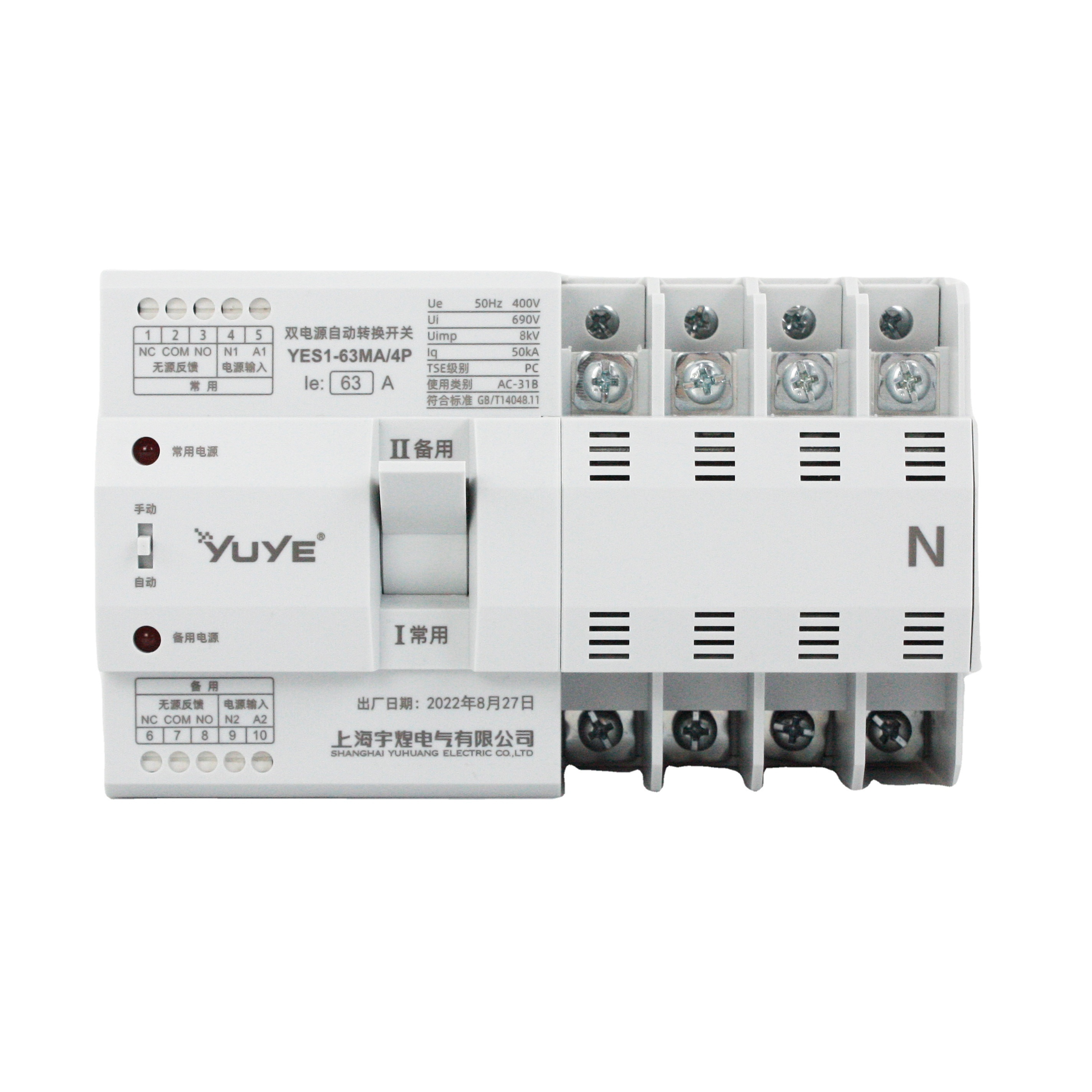

YUYE MA-63 II 4P Generator ATS daul power changeover automatic transfer ats din rail switch 63amp 4p cabinet 4 ways
This series of household dual power automatic transfer switchis the late st micro household power transfer switch
developed by our company. The switch belongs to the PC class infrequent transfer switch , two positions structure ,
suitabl e for AC 50 / 60Hz , rated current 6A - 63A AC power distributi on system, mainly used to detect whether the user's
power supply is normal or standby. When the common power supply is abnormal , immediately switch to the standby power supply, Switch inside the used mechanical and electric interlock, put an end to clear condition of two way power
switch at the same time. so as to ensure the continuity, reliability and security of the power supply.
Technology Parameters
YUYE MA-63 II 4P Generator ATS daul power changeover automatic transfer ats din rail switch 63amp 4p cabinet 4 ways
|
Frame Class
|
63A
|
|
|
|
|
|
|
|
|
||||||||
|
Rated working current le
|
6A
|
10A
|
16A
|
20A
|
25A
|
32A
|
40A
|
50A
|
63A
|
||||||||
|
Rated Insulation votlage Ui
|
690V
|
|
|
|
|
|
|
|
|
||||||||
|
Rated Impulse withstand voltage Uimp
|
8kV
|
|
|
|
|
|
|
|
|
||||||||
|
Rated working voltage Ue
|
AC400V
|
|
|
|
|
|
|
|
|
||||||||
|
Rated frequency
|
50/60hZ
|
|
|
|
|
|
|
|
|
||||||||
|
Using Category
|
AC-31B
|
|
|
|
|
|
|
|
|
||||||||
|
Transfer Time
|
20ms
|
|
|
|
|
|
|
|
|
||||||||
|
Mechanical time
|
≥6000 times
|
|
|
|
|
|
|
|
|
||||||||
|
Electrical time
|
≥1500 times
|
|
|
|
|
|
|
|
|
||||||||
ATS SWITCH FUNCTION
The excitation electromagnet is adopted for actuation, the conversion speed is extremely fast, and the control voltage is
AC220V(AC110V can be customized).
The switch body is provided with power-on indication of common power supply/standby power supply, and the switch state is clear.
Rail installation mode, modular structure design, total weight <0.9Kg,compact structure, small volume and convenient
installation and maintenance.
Automatic mode has the function of self-input and self-recover.When two power supplies exist at the same time, the common
power supply gives priority to power supply.
