Quick Details
-
Type:
-
Industrial Continuous Mesh Belt Dryer, Coal food dryer dehydrator
-
Voltage:
-
220/380V, Customized
-
Power:
-
13.72kw
-
Weight:
-
5000 KG
-
Dimension(L*W*H):
-
6*2*2.5m
-
Product name:
-
Industrial Food Cassava Konjac Dryer Drying Machine
-
Host material:
-
Stainless steel
-
Heating source:
-
Coal (or Electricity, Gas, Wood, Oil, Biomass)
-
Usage:
-
Drying food, vegetable, fruit, etc
-
Drying temperature:
-
40 - 120℃, Adjusted
-
Feature:
-
Continuous, High efficiency
-
Application material:
-
Vegetable, spice, herb, chilli, cassava, mushroom, tea leaf, konjac
-
Drying time:
-
0.5-5h
-
Capacity:
-
200-400kg/h
Quick Details
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
China
-
Brand Name:
-
Baixin
-
Type:
-
Industrial Continuous Mesh Belt Dryer, Coal food dryer dehydrator
-
Voltage:
-
220/380V, Customized
-
Power:
-
13.72kw
-
Weight:
-
5000 KG
-
Dimension(L*W*H):
-
6*2*2.5m
-
Product name:
-
Industrial Food Cassava Konjac Dryer Drying Machine
-
Host material:
-
Stainless steel
-
Heating source:
-
Coal (or Electricity, Gas, Wood, Oil, Biomass)
-
Usage:
-
Drying food, vegetable, fruit, etc
-
Drying temperature:
-
40 - 120℃, Adjusted
-
Feature:
-
Continuous, High efficiency
-
Application material:
-
Vegetable, spice, herb, chilli, cassava, mushroom, tea leaf, konjac
-
Drying time:
-
0.5-5h
-
Capacity:
-
200-400kg/h
Products Description

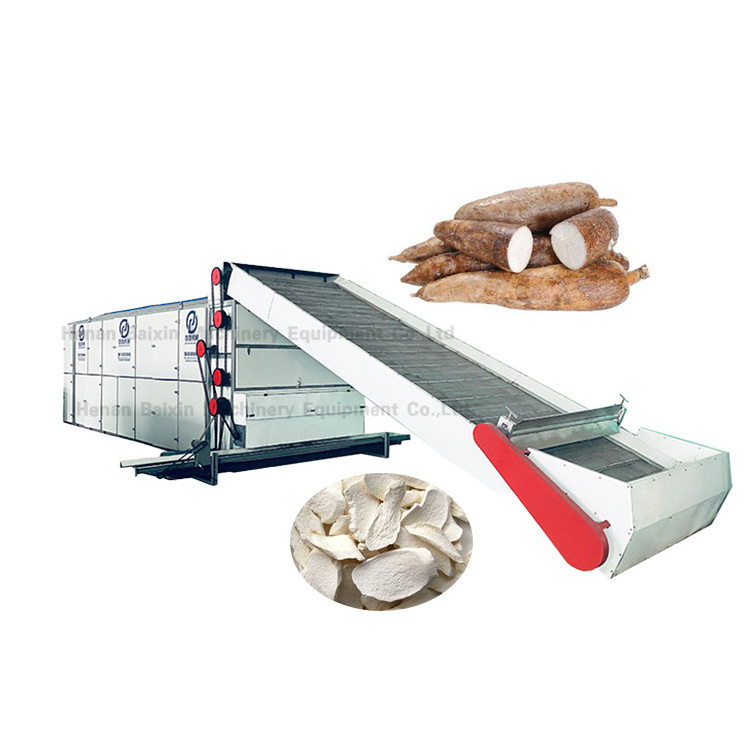

Industrial Food Drying Gas Biomass Dryer Machine
The mesh belt dryer is a kind of continuous drying equipment, the main heating way has electric heating, steam heating, gas heating and coal heating. Its main working principle is to spread the material evenly in the network. The material is moved in the dryer by the operation of the machine, and the hot air draws out the water vapor of the material. so as to achieve the purpose of drying. The operation temperature is 40-120℃. And the dry cycle is 1-5 hours.
It is mainly used for fruit and vegetable, herb, chilli, spice, mushroom, cassava, etc. The equipment easy to operate, save time, drying process health and protect environment.
Working Principle
Material are transported by the feeding conveyor to the inside of the mesh belt dryer. The food passes from the first layer to the last layer via the conveyor belt, and the dried food is conveyed by the discharge conveyor. The belt dryer is using hot air as the drying medium. The hot air passes through the material from the bottom to top. The final moisture comes out of the top of the dryer.The drying machine not only according to heat to dry, but also according to strong air. So it can increase the drying efficiency and drying time.
|
Industrial Food Cassava Konjac Dryer Drying Machine
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Temperature
|
Drying time
|
Material thickness
|
Dryer container size
|
Capacity
|
Heat source
|
Total power
|
|||||||
|
BX-2*6M
|
40-120℃
|
0.5-5h
|
50-200mm
|
6*2*2.5m
|
200-400kg/h
|
electricity
|
66.5kw
|
|||||||
|
|
|
|
|
|
|
gas
|
12.22kw
|
|||||||
|
|
|
|
|
|
|
coal
|
13.72kw
|
|||||||
|
|
|
|
|
|
|
steam
|
11.22kw
|
|||||||
|
BX-2*9M
|
|
|
|
9*2*2.5m
|
500-800kg/h
|
electricity
|
79.76kw
|
|||||||
|
|
|
|
|
|
|
gas
|
20.12kw
|
|||||||
|
|
|
|
|
|
|
coal
|
23.12kw
|
|||||||
|
|
|
|
|
|
|
steam
|
16.62kw
|
|||||||
|
BX-2*12M
|
|
|
|
12*2*2.5m
|
1000-1500kg/h
|
electricity
|
153.12kw
|
|||||||
|
|
|
|
|
|
|
gas
|
33.12kw
|
|||||||
|
|
|
|
|
|
|
coal
|
36.12kw
|
|||||||
|
|
|
|
|
|
|
steam
|
25.62kw
|
|||||||
|
Continuous mesh belt dryer machine can be equipped according to your requirement and the production demands.
|
|
|
|
|
|
|
|
|||||||
Product & Details
Application
1. Fruit: Almonds, jujube, peanuts, longans, walnut, papaya tablets, apple slices, lemon, hawthorn pills, banana, mango, grape etc.
2. Vegetable: Asparagus, beans, kidney beans, lentils, eggplant, red pepper, chinese prickly ash, black fungus, tremella, papaya tablets, bitter melon, radish, cucumber slices, mushrooms, ginger, garlic,Onion etc.
3. Meat material: Beef, seafood, shrimp, fish, catfish etc.
4. Herbs: Black pepper, cardamon, hemp, cannabis, etc.
About Us
Henan Baixin Machinery Equipment Co.,Ltd is a set of technology development, manufacturing, operating services as one of the high-paying technology state enterprises, the central plains regions is the largest drying equipment, food equipment research and development and production base.
Products are exported to the world more than 90 countries and regions, favored by customers.
The main products are continuous mesh dryer, heat pump dryer, drying ovens, microwave drying sterilization equipment, vegetables & fruits processing line, such as slicing machine, peeling machine, packaging machine, grinder, so on. Equipments is wide used in agriculture, industry, food, and other industries, to meet the existing more than 85% of raw materials, drying and deep processing.
Packing & Delivery
FAQ
Now we plan to make the drying project, what should we do?
Firstly, we need to know the original moisture content of the material and after drying the final moisture content that you want to achieve.
Secondly, please tell us what is your required capacity per hour or per day?
Thirdly, what kind of fuel do you want to use? Coal, gas, electrical or others.
We can according to your answer recommend you the accurate drying model and design the matching heating system for your project.
What kind of drying machine is suitable for me?
We offer three types of food dryer machine: multi-layer mesh belt drying machine, food heat pump drying machine and microwave drying machine. Generally speaking, multi-layer belt dryer machine is more suitable for large-scale food drying, heat pump dryer tends to be easier to operate and frequently used in the small and medium drying process, and The microwave dryer has higher drying efficiency. Based on your production situation, you can choose the suitable one.
Can I specify the heat source?
Yes, the general machine can use electricity or natural gas as a heat source. Mesh belt dryers can use electricity, natural gas, steam or coal. A wide range of heat sources, which is available for customers to choose independently.
What factors affect the drying time?
That depends on a number of variables so there is no fixed answer to this question.
There are some factors for your reference.
◆
The water content of the materials,
◆
The sugar content of materials
◆
The size of the piece of raw materials
◆
T
he temperature you want to dry
◆
T
he surrounding environment
◆
T
he desired texture of the end result
The most important is that whether the dryer you chose is suitable for drying
