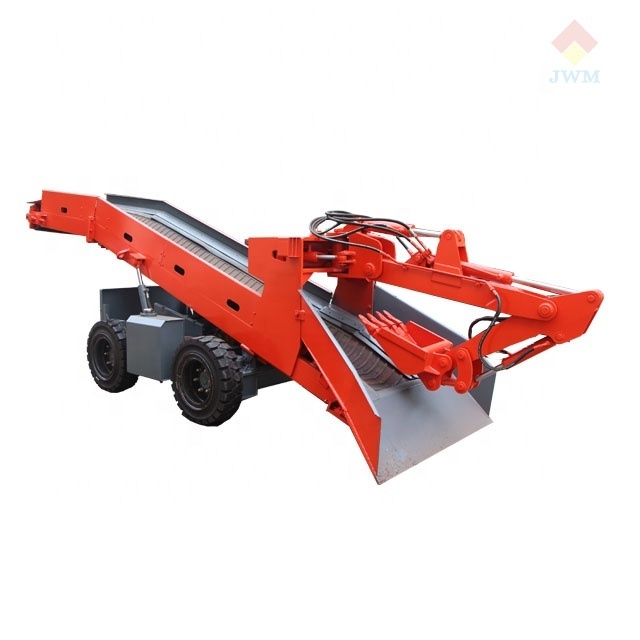

Jinwang Widely Used Backhoe Loader Electric Mucking Loader Skid Steer Loader with Diesel Engine

Jinwang Widely Used Backhoe Loader Electric Mucking Loader Skid Steer Loader with Diesel Engine

FOB Reference Price: Get Latest Price

≥1 Sets

US $15800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: JINWANG

Product name:: Mini Wheel Mucking Loader

Keyword:: Wheeled Rock Loader Narrow Size Wheel Mucking Loader

Drive type:: 4x4 Chain Drive

Color:: Customer's Requiement

Machine name:: Mini Mucking Loader

Usage:: Multiple Purpose

Function:: Multi Purpose Function

Name:: Wheeled Mucking Loader With Drilling

Tire:: Engineering solid tire

After Warranty Service:: Spare Parts Support

Quick Details

Weight (KG):: 3400

Marketing Type:: Hot Product 2023

Place of Origin:: Henan, China

Brand Name:: JINWANG

Product name:: Mini Wheel Mucking Loader

Keyword:: Wheeled Rock Loader Narrow Size Wheel Mucking Loader

Drive type:: 4x4 Chain Drive

Color:: Customer's Requiement

Machine name:: Mini Mucking Loader

Usage:: Multiple Purpose

Function:: Multi Purpose Function

Name:: Wheeled Mucking Loader With Drilling

Tire:: Engineering solid tire

After Warranty Service:: Spare Parts Support

Product Overview

This series of skimming machine set walking, digging, collecting, conveying, loading in one. Compact structure, large pushing force, wide range of pickling, flexible lifting positioning, fast transport speed, can be full section rock loading, leaving no dead Angle, do not need manual assistance to clean the working face, with smooth loading, flexible operation, environmental protection, energy saving, no exhaust gas, low use cost, continuous high efficiency, labor saving and so on.

Product Paramenters

Traveling Speed	2km	Machine Weight	3400kg
Ground Clearance	200mm	Minimum Turning Radius	4m
Wheel Tread	1480mm	Digging Width	2400mm
Wheel Base	1500mm	Digging Height	1900mm
Rated Working Pressure	16mpa	Digging Depth	700mm
Big Arm Maximum Turning Angle	±73˚	Digging Distance	1550mm
Total Motor Power	15kw	Dumping Height	1480-1700mm
Maximum Material Dimension	600500500	Dumping Distance	1400mm
Adaptive Tunnel Gradient	≤15°	Grade ability	≤15°
Belt speed	0.63m/s	Diameter of hammer rod	45mm
Overall Dimensions	520015001600mm	Working flow of crushing hammer	20-40L/min
Adaptive Tunnel Minimum Fracture	1.8*2m	Impact frequency of crushing hammer	700-1200bmp
