Quick Details
-
Brand Name:
-
IWIN
-
Model Number:
-
IWIN-SCPT
-
Product name:
-
ASTM CPT static cone penetration test procedure test of soil
-
Force:
-
30KN
-
Depth:
-
20-30m
-
Test ranges:
-
0-130KPa
-
Speed:
-
0.5-1m/min
-
Probe diameter:
-
10CM 15CM
-
Cross plate shear:
-
<132Kpa
-
Weight:
-
100kg
-
Software:
-
APK
-
Keyword:
-
Static Cone Penetration Test
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
IWIN
-
Model Number:
-
IWIN-SCPT
-
Product name:
-
ASTM CPT static cone penetration test procedure test of soil
-
Force:
-
30KN
-
Depth:
-
20-30m
-
Test ranges:
-
0-130KPa
-
Speed:
-
0.5-1m/min
-
Probe diameter:
-
10CM 15CM
-
Cross plate shear:
-
<132Kpa
-
Weight:
-
100kg
-
Software:
-
APK
-
Keyword:
-
Static Cone Penetration Test
ASTM CPT static cone penetration test procedure test of soil

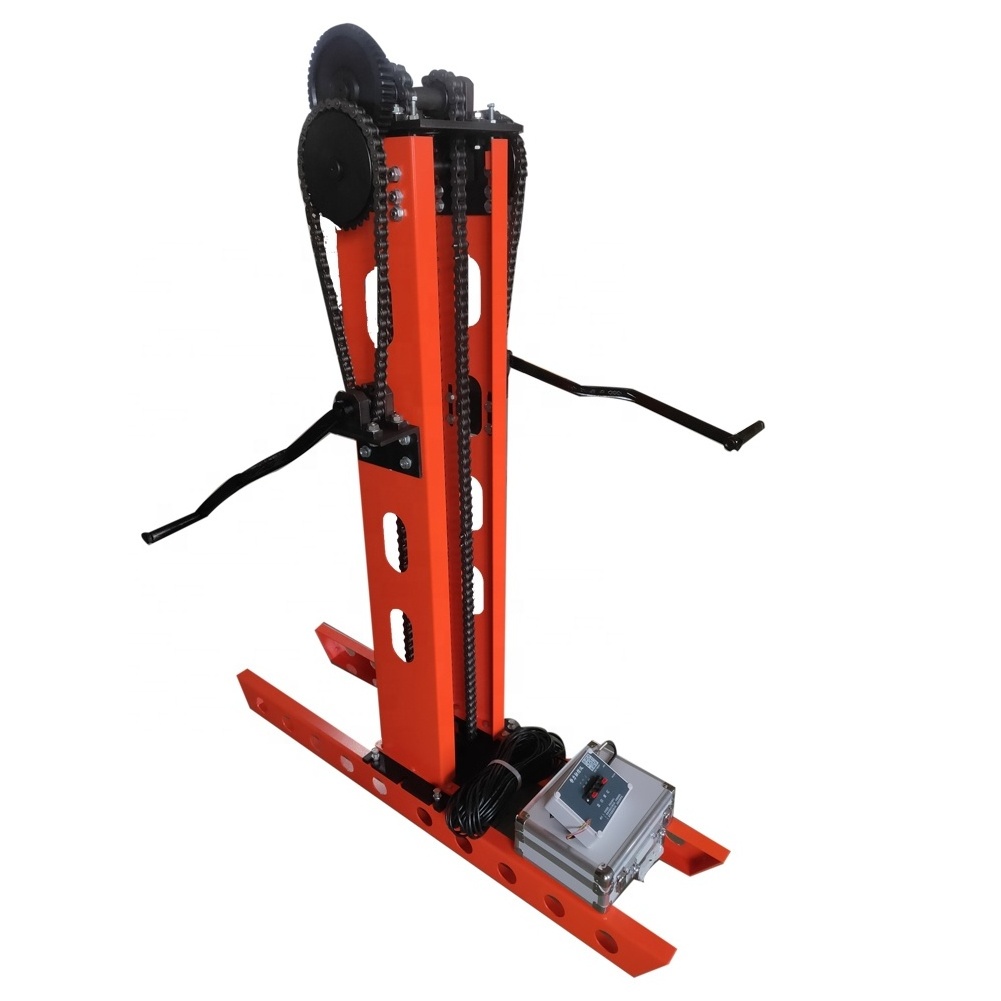

It is not only just the lightest CPT machine, but also vane shear test machine (i.e. VST). Its rated penetration force is 30KN (3t) and the test depth is up to 30m (in soft soil area). While doing CPT test, it could work with 10cm2 probe, also 10cm2 pore-pressure probe while doing CPTu test. This machine is manual operation, suitable for clay, silt, sand, etc. After over 20 years application and development, now it is improved to put up a perfect performance. Vane shear test ranges 0 ~130KPa, Cross Board To Board head configuration 50 × 100 (mm) (general) or 75 × 150 (mm) 75 × 100 (mm) (special).
Packing List:
| No. | Name | Amount | Unit |
| 1 | Main Frame | 1 | pcs |
| 2 | Probe | 20 |
pcs |
| 3 | Ground anchor | 2 | pcs |
| 4 | Ground anchor iron | 2 | pcs |
| 5 | Ground anchor clamp | 2 | pcs |
| 6 | Anchor booster | 2 | pcs |
| 7 | Rocker | 2 | pcs |
| 8 | Mountain plate | 1 | pcs |
| 9 | Block | 1 | pcs |
| 10 | Guide sleeve | 2 | set |
| 11 | Probe Connector | 1 | pcs |
| 12 | Gauge | 1 | pcs |
| 13 | Single bridge probe | 1 | pcs |
| 14 | Adjustable joints | 20 | pcs |
| 15 | 4 core cable | 20 | m |
