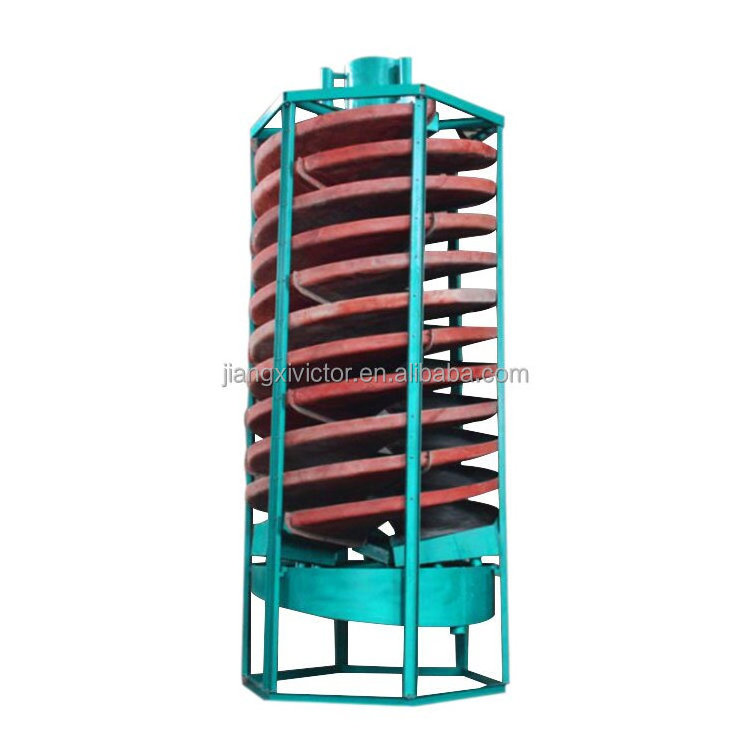

Mineral Processing Spiral Concentrator Chrome Spiral Chute for Monazite Ore Beneficiation
Mineral Processing Spiral Concentrator Chrome Spiral Chute for Monazite Ore Beneficiation
Mineral Processing Spiral Concentrator Chrome Spiral Chute for Monazite Ore Beneficiation
Mineral Processing Spiral Concentrator Chrome Spiral Chute for Monazite Ore Beneficiation
Mineral Processing Spiral Concentrator Chrome Spiral Chute for Monazite Ore Beneficiation
Mineral Processing Spiral Concentrator Chrome Spiral Chute for Monazite Ore Beneficiation
Mineral Processing Spiral Concentrator Chrome Spiral Chute for Monazite Ore Beneficiation
Mineral Processing Spiral Concentrator Chrome Spiral Chute for Monazite Ore Beneficiation

Mineral Processing Spiral Concentrator Chrome Spiral Chute for Monazite Ore Beneficiation

FOB Reference Price: Get Latest Price
≥1 Sets
US $600
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
220V/380V
Dimension(L*W*H):
4360*1360*1360
Weight:
600 KG
Product name:
Gravity Spiral Concentrator
Color:
Customizable
Material:
Fiberglass
Feeding size:
0.02-4MM
Capacity:
0.1-40t/h
Usage:
mining concentration
Installation:
Technical Guidance
OEM:
Yes
Keywords:
Gravity Spiral Concentrator
Certification:
ISO9001:2008

Quick Details

Production Capacity:
90% Recovery Rate
Place of Origin:
Jiangxi, China
Brand Name:
WKD
Voltage:
220V/380V
Dimension(L*W*H):
4360*1360*1360
Weight:
600 KG
Product name:
Gravity Spiral Concentrator
Color:
Customizable
Material:
Fiberglass
Feeding size:
0.02-4MM
Capacity:
0.1-40t/h
Usage:
mining concentration
Installation:
Technical Guidance
OEM:
Yes
Keywords:
Gravity Spiral Concentrator
Certification:
ISO9001:2008
Product Description

Introduction


Spiral chute, a new gravity separation machine, applicable to processing iron, tin, tungsten, tantalum, niobium, gold, coal and other metal separation from particle size 0.6mm to 0.05mm.


It has been used in to enrichment the particle size 0.3-0.02 millimeters fine grain like iron, tin, chromite, ilmenite, tungsten, zinc, tantalum-niobium, gold, coal, monazite, rutile, zircon and other low-grade ores. The non-metallic minerals which have a big enough specific gravity difference.

Technical parameters
Model
5LL-1500
5LL-1200
5LL-900
5LL-600
5LL-400
Outside
dia(mm)
1500
1200
900
600
400
Pitch(mm)
540/720
900/720/540
675/540/405
450/360/270
240/180
Pitch Dia
Ratio
0.75/0.6/0.45
0.75/0.6/0.45
0.75/0.6/0.45
0.75/0.6/0.45
0.6/0.45
Lateral slope
9
9
9
9
9
Maximum starts
per column
4-2
4-2
4-2
3
2
Feeding
Size(mm)
0.3-0.02
0.3-0.03
0.3-0.03
0.2-0.02
0.2-0.02
Feeding
Density(%)
25-55
25-55
25-55
25-55
25-55
Capacity(T/H)
8-6
4-6
2-3
0.8-1.2
0.15-0.2

External size
(mm)
Length
1560
1360
1060
700
460
Width
1560
1360
1060
700
460
Height
5230
5230
4000
2600
1500
Weight (Kg)
800
600
400
150
50
Main Features for spiral separator machine
1. Reasonable structure and small occupation area
2. High recovery, high efficiency, and precise separation
3. Non-required power
4. Light in weight, anti corrosion, rust and wear resistant
5. Simple installation and Minimal maintenance requirements
6. Low operating cost and long working life
7. Reliable running with minimal operator attention
8. Strong adaptability to fluctuation of feeding amount, density, size and grade
9. The surface of corundum forms strong friction the concentration effect surpass plastic surface

Working Principle for humphrey spiral separator

Spiral chute is to Use physics and a precisely designed piece of equipment, the material is discharged onto a banked metal flight which is spirally wound around a central shaft. As the material flows down the separator, its speed increases, and centrifugal force carries it toward the outer edge of the flight.

Advantage for spiral gravity separator
1.Precise separation
2.Non-required of electricity
3.Light weight, anti corrosion, rust and wear resistant
4.Simple installation and minimal maintenance requirements
5.Low operating cost and long service life
6.Reliable running with minimal operator attention
7.Strong adaptability to fluctuation of feeding amount, density, size and grade
