Quick Details
-
Product name:
-

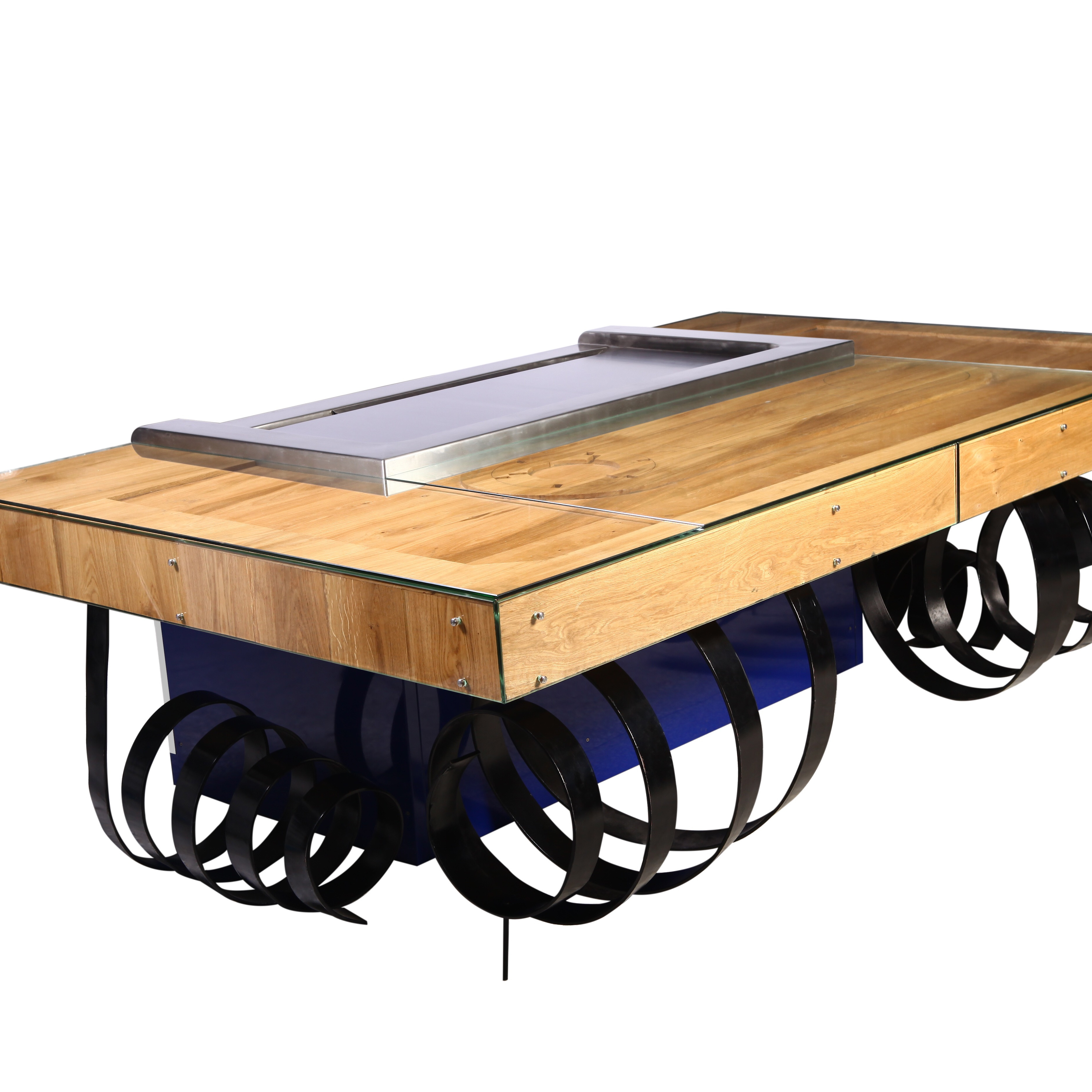

Multifunction Grill Table Built In Air Blower Teppanyaki Table Grill
-
Material:
-
Stainless Steel
-
Size:
-
2200*850*800 0mm
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Greenark
-
Model Number:
-
TR14-00-89-58-00
-
Product name:
-
Multifunction Grill Table Built In Air Blower Teppanyaki Table Grill
-
Material:
-
Stainless Steel
-
Size:
-
2200*850*800 0mm
PRODUCT DESCRIPTION
FEATURES AT A GLANCE
Multifunctional
Teppanyaki Grill
Set soup, barbecue, iron plate in one
Subvert tradition, innovate and create intelligently
High human efficiency, high production and high experience!
This series of products received great attention as soon as they appeared
Left elevation
Middle elevation
Right elevation
PRODUCT OVERVIEW
Chuanglv GREENARK Teppanyaki
1.The electromagnetic system is the exclusive design by Chuanglv Group and we are also the only manufacturer and exporter in China producing the electromagnetic plate and motor for teppanyaki equipment by ourselves.
2.The grill body is made of German 304 stainless steel, heating plate made of special alloy steel with thickness of 20 mm, one-piece unibody, no deformation or discoloration after long time use.
3.The built-in air blower for customers' option has a high temperature resistant and makes the teppanyaki grill equipment with low noise.
4.Air Inlet has exclusive arch design to absorb the smoke on the grill top faster and better.
5.The waste container has Sunk pull handle and plate is impact molded , and all corners are rounded to ensure good looking, easy cleaning and long shelf-life.
6.Air Valve Device has three levels of open, semi-open, close function for cooking performance with flame.
7.Electricity Control Box is an Individual electric box to hold dangerous electrical components such as leakage protection device and overload protection device.
3.The built-in air blower for customers' option has a high temperature resistant and makes the teppanyaki grill equipment with low noise.
4.Air Inlet has exclusive arch design to absorb the smoke on the grill top faster and better.
5.The waste container has Sunk pull handle and plate is impact molded , and all corners are rounded to ensure good looking, easy cleaning and long shelf-life.
6.Air Valve Device has three levels of open, semi-open, close function for cooking performance with flame.
7.Electricity Control Box is an Individual electric box to hold dangerous electrical components such as leakage protection device and overload protection device.
8.Front Air Supply Device A line of air blowing holes opposite to the air inlet blowing the smoke towards exhaust efficiency. 9.Operation Control Panel is an individual sunk panel is impact molded for good looking and easy maintenance. The removable Double Fume Filters between the air inlet and interior tank for easy cleaning and inspection.
10.Heat Dissipation Device Electrostatic fume purifier to remove fume particles and cooling fan to lower the
temperature to lengthen the equipment safety and shelf-life.
temperature to lengthen the equipment safety and shelf-life.
11.Low Noise Blower is to assist the air exhaust of the general duct or individual straight pipe within 3 meters to better remove the fume and smoke on the cooking plate.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
|
|
1
|
Heating
|
Electricial Tube And Induction
|
|
|
|
2
|
Material
|
Stainless Steel
|
|
|
|
3
|
Shape
|
Rectangle/circle/semi-circle/oval/fan shape/U shape/arch shape
|
|
|
|
4
|
Main Cook Area
|
450*400mm Or 600*400mm
|
|
|
|
5
|
Exhaustion
|
Optional built-in air blower & fume purifier
|
|
|
|
6
|
Application
|
Outdoor barbecue, restaurant, hotel, food plazza, buffet car
|
|
|
|
7
|
Cookable Food
|
Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle
|
|
|
|
8
|
Packaging
|
Standard Shipping Wooden Case
|
|
|
PRODUCT CONFIGURATION
Rectangular Shape
U-shape
Sector Shape
Semicircle Shape
Circle Shape
Elliptical Shape
SUCCESSFUL PROJECTS
Project in Thailand
Project in India
Project in Russia
RELATED PRODUCTS
FAQ
Q1： Why choose Chuanglv GREENARK Teppanyaki？
A1： A. Grill body made of German 304 stainless steel, heating plate made of special alloy steel with thickness of 20 mm, one-piece unibody, no deformation or discoloration after long time use.
B.Operation panel, waste container and filter made of 1.0 mm stainless steal, and the air inlet made of 1.5 mm mirror surface stainless steal.
C.Amazing caraft of cutting, bending and polishing by imported intelligent processing machines.
D.Electromagnetic(Induction)Teppanyaki:
1)The only manufacturer in China who specially designed and assembles electromagnetic plate and motor for teppanyaki equipment;
2) German Infinon power module and NEC rectifier;
3)The circuit board material is in conformity with UL and ROHS certification, the master chip is with imported 32'sDSP
digital processing unit, and the 6-layered heat resistant insulative material makes the motor work for a much longer time; 4)Electromagnetic radiation is only 18k-35k, which is much lower than the European standard limit of 100k.E.
digital processing unit, and the 6-layered heat resistant insulative material makes the motor work for a much longer time; 4)Electromagnetic radiation is only 18k-35k, which is much lower than the European standard limit of 100k.E.
Gas Teppanyaki:
1) Gas consumption: LPG 0.29m3/h(0.6kgs), pipeline gas 0.8m3/h.
2) Thermostat control, automatic electronic ignition device, automatic flame failure protection device.F. Built-in Air Blower:. High temperature resistant; low noise.
G. Built-in Taiwan Electrostatic Fume Purifier.
1) Absorbing fume particles with diameter of over 0.1 um (diameter) with processing efficiency of 93%-97%;
2) High and low voltage dust collecting plate separation technology, easy for cleaning;
3)Advanced point discharging technology;
4)Power-off protection device for output disorder. H. Certification: ISO 9001-2008;CE; CSA & UL certification in process.
