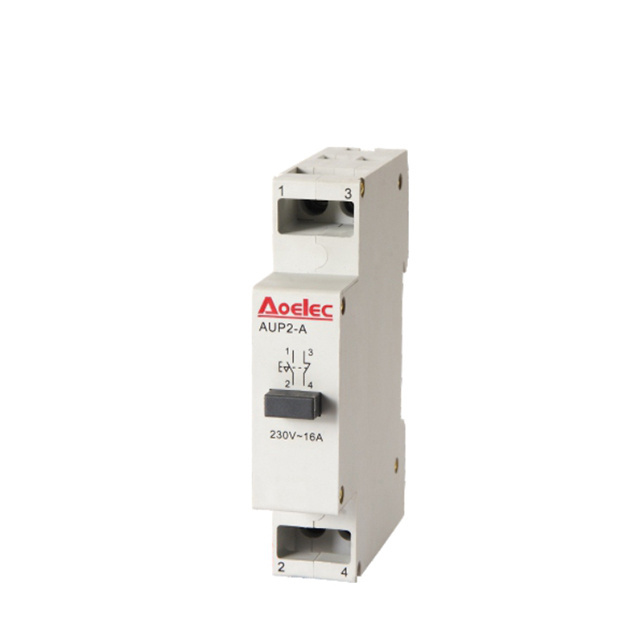

Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Aoelec
-
Model Number:
-
AUP2
-
Enclosure:
-
PA66
-
PA66 cover:
-
Fire resistant
-
Installation:
-
Din Rail mounting
Quick Details
-
Protection Level:
-
IP20
-
Max. Current:
-
16A
-
Max. Voltage:
-
240V
-
Place of Origin:
-
China
-
Brand Name:
-
Aoelec
-
Model Number:
-
AUP2
-
Enclosure:
-
PA66
-
PA66 cover:
-
Fire resistant
-
Installation:
-
Din Rail mounting
Function and Feature:
Controlling electrical either directly or via starters,contactors,relay etc
Pushbutton with lamp could be used as indicator
Technical Data:
Rated operational voltage(Ue):230VAC
Rated operational current:≤20mA
Rated frequency:50/60Hz
Utilization category:AC-14
Rated operational current(Ie):6A
Assembly of contact:1NC+1NO,2NC+1NO,3NO,2NC+2NO
Electrical endurance:100000cycles(AC1,AC7a,AC3,AC7b)
Mechnical endurance:250000cycles
Rated insulation voltage(Ui):500VAC
Rated impulse withstand voltage(Uimp):2KV
Terminal:pillar type
Cable termination:10mm 2
Torque of screw:1.2Nm
IP degree:IP 20
Standards:IEC/EN 60947-5-1
Catalog No. CTN Size:46.5x24x17.5cm
| Model | Description | QTY/Box | QTY/CTN |
| AUP2-A | one button,230VAC 16A | 12 | 120 |
| AUP2-B | two button,230VAC 16A | 12 | 120 |
| AUP2-C | one button with LED light,230VAC 16A | 12 | 120 |
