Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KETAI
-
Weight (KG):
-
50 KG
-
Marking Area:
-
70mm*70mm--- 300mm*300mm
-
Product name:
-
20W 30W laser marking machine
-
Laser Power:
-
20W/30W/50W/60w/80w/100W
-
Laser source:
-
IPG Raycus Max JPT
-
Laser head:
-
Sino-galvo Laser Head
-
Software:
-
JCZ EZCAD Software
-
Laser wavelength:
-
1064nm
-
Applicable Material:
-
Metal Materials
-
Marking Speed:
-
0-7000mm/s
-
Marking Depth:
-
0.01-2mm
-
Power supply:
-
110V/220V 10% 50Hz/60Hz
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KETAI
-
Weight (KG):
-
50 KG
-
Marking Area:
-
70mm*70mm--- 300mm*300mm
-
Product name:
-
20W 30W laser marking machine
-
Laser Power:
-
20W/30W/50W/60w/80w/100W
-
Laser source:
-
IPG Raycus Max JPT
-
Laser head:
-
Sino-galvo Laser Head
-
Software:
-
JCZ EZCAD Software
-
Laser wavelength:
-
1064nm
-
Applicable Material:
-
Metal Materials
-
Marking Speed:
-
0-7000mm/s
-
Marking Depth:
-
0.01-2mm
-
Power supply:
-
110V/220V 10% 50Hz/60Hz
Product Description

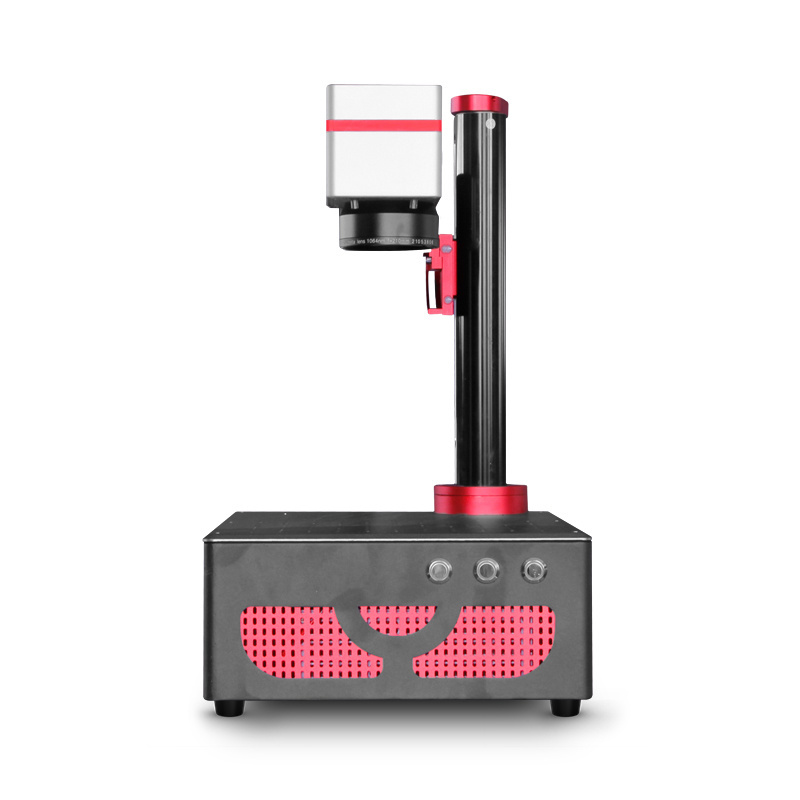

Fiber laser marking machine
The fiber laser marking machine can also cut thin metals, such as stainless steel, aluminum, alloy, brass, sliver,gold,titanium,etc.
Specification
|
Laser Type
|
Fiber Laser
|
|
Cooling Mode
|
Air Cooling
|
|
Control Software
|
EZCAD
|
|
Brand Name
|
KETAI
|
|
Laser Source Brand
|
RAYCUS JPT MAX IPG
|
|
Control System Brand
|
BJJCZ
|
|
Weight (KG)
|
50KG
|
|
Marking Area
|
70mm*70mm--- 300mm*300mm
|
|
Warranty of core components
|
3 years
|
|
Feature
|
Air-cooled
|
|
Laser Power
|
20W/30W/50W/60w/80w/100W
|
|
Laser head
|
Sino-galvo Laser Head
|
|
Applicable Material
|
Metal Materials
|
|
Marking Speed
|
0-7000mm/s
|
|
Marking Depth
|
0.01-2mm
|
|
Power supply
|
110V/220V 10% 50Hz/60Hz
|
Details Images
Modular design,exquisite and simple, the life of the whole machine isabout 100,000 hours,the electro-optical conversion efficiency is morethan 28%, and it has outstanding performance in energy saving and envi-ronmental protection.
Unique rotatable light path system design,can rotate freely and flexiblymark, intelligent and friendly operation is simple.
Vertical direction Can be rotated 90 degrees.
Horizontal direction Can rotate 360 degrees
All optical fiber, no space optical element, few faults; The beam quality is good, the pulse width is small, and the marking pattern is more refined; The built-in cooling fan can intelligently adjust the wind speed, which is convenient for energy conservation; Fully sealed structure, dust-proof and moisture-proof, to ensure long-term operation of the machine· Optional Raycus/MAX laser
The main board adopts Beijing Jinchengzi optical fiber board. The system is stable and reliable, easy to learn and use, with superior performance and powerful functions.
Accessories
The auto-focus laser marking machine
The auto-focus laser marking machine realizes auto-focus marking through the visual positioning system, which can be completed without physically moving the workpiece or the laser marking machine. The focus can be automatically adjusted, even if there are slight differences in thickness, automatic tracking and marking can be achieved. Not only can the workload be reduced, but also the quality of product marking can be significantly improved, and the operation is simple and convenient.
Sample
Mopa laser application
1.
Alumine sheet stripped surface: No deformation,fine marking.
2.
Alumine sheet black color marking.
3. Metal depth marking.
4. Stainless steel color marking: marking different colors by setting the parameters.
5. PCB, ABS, plastic without yellow color.
6. Light transmission paint keyboard: easy to make it pervious to light.
7. Electronic, semiconductor components, ITO precision machining: the pulse can be adjusted to get best facula, and make the power balance.
3. Metal depth marking.
4. Stainless steel color marking: marking different colors by setting the parameters.
5. PCB, ABS, plastic without yellow color.
6. Light transmission paint keyboard: easy to make it pervious to light.
7. Electronic, semiconductor components, ITO precision machining: the pulse can be adjusted to get best facula, and make the power balance.
Packing & Delivery
1.
We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam,to protect the machine from shaking.For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2.
Air-WorthyPacking
or Sea Packing which comply with international standard.
or Sea Packing which comply with international standard.
