Caiweile traffic facilities co., LTD
is a professional supplier of roadway safety and traffic facilities products with purpose "
Keep the road more safety ,
Fast and efficient construction
". We export our products worldwide and with main markets include Europe, America, Middle East, Southeast Asia, Africa. etc.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
1200*900*950
-
Weight:
-
100 kg
-
Features:
-
Thermoplastic
-
Product Name:
-
Thermoplastic Paint Making Machines
-
Application:
-
Pavement
-
Mark width:
-
100-450 ( Adjustable)
-
Mark thickness:
-
1.0-4.0mm (adjustable)
-
Paint Tank Capacity:
-
60kg*2
-
Engine:
-
Gasline Engine
-
Line width:
-
Optional 150/200/300/400/450mm(customizable)
-
Certificate:
-
CE ISO
-
Heating Temperature:
-
180-210
-
Line Types:
-
Thermoplastic Line
Quick Details
-
Power:
-
Engines
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CWL
-
Dimension(L*W*H):
-
1200*900*950
-
Weight:
-
100 kg
-
Features:
-
Thermoplastic
-
Product Name:
-
Thermoplastic Paint Making Machines
-
Application:
-
Pavement
-
Mark width:
-
100-450 ( Adjustable)
-
Mark thickness:
-
1.0-4.0mm (adjustable)
-
Paint Tank Capacity:
-
60kg*2
-
Engine:
-
Gasline Engine
-
Line width:
-
Optional 150/200/300/400/450mm(customizable)
-
Certificate:
-
CE ISO
-
Heating Temperature:
-
180-210
-
Line Types:
-
Thermoplastic Line
Products Description

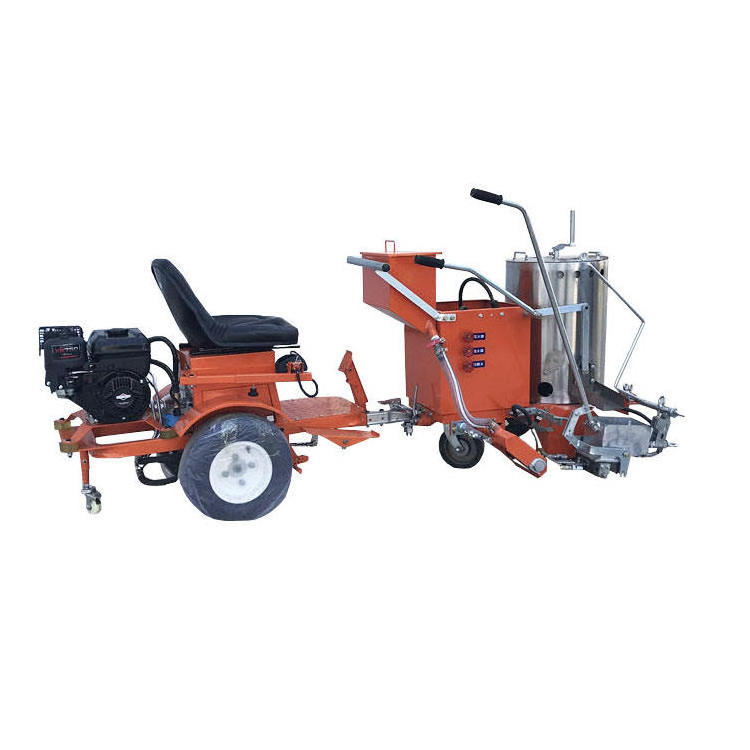

Hand-Push Thermoplastic Road Marking Machine
construction operation
Road marking Machine (one stop solution)
Hand-Push Thermoplastic Road marking Machine
1.will be poured high-precision cast iron marking shoe to
ensure
that the marking came to uniform side and thickness, linear appearance
2.the
glass beads
spread complete with automatic speed control buffer devices ,
3.the positioner upon back wheel make sure the machine
go straight.
Feature :
This machine has the advantage of high -construction ,fast ,flexible operation ,convenient maintenance and so on
Applications:
Highway , municipal roads , vllage or town road , guiding arrows words parking lines , factories etc
product specification
|
Type
|
CWL380
|
|
Thermoplastic Tank
|
Double stainless steel heating insulation barrels , capacity 100kg, plug-in manually mixer devices , removable devices
|
|
Glass Bead Container
|
100KG /Box
|
|
Adjustable Glass Beads Dispenser
|
Glass Beads Dispenser for dispensing glass beads synchronously and quantitatively . makes the dispensing synchronization with the marking line and ensures the quantity of the dispensing is controllable and adjustable , the dispense width of this dispenser is adjustable 50mm to 200mm
|
|
Marking Rquipment
|
150mm marking shoe (High-precision ultra-thin material manufacturing, scraper- type structure)
|
|
Knife Underframe The Thickness of the scope marking
|
Carbide ,with eccentric sleeve device can
adjustable the 1-2.5mm
|
|
Tire
|
Alloy Wheel, a special heat-resistant rubber
|
|
Rear Wheel Directional Device
|
Ensure the machine moving in straight line or turning freely in curved road
|
|
Heating Method
|
Liquefied Petroleum Gas
|
|
Hopper Marking width
|
100mm, 150mm , 200mm, 250mm, 300mm, 400mm, 450mm, (at customers' Option)
|
|
Dimesions
|
1200MM*900MM*950MM
|
|
Weight
|
100KG
|
Road marking machine
Noted
:
Hoppers are available in different sizes (100mm-450mm) one stop solution
1. High-precision one-piece cast iron marking shoe.
2. The edge of the marking shoe is uniform, the thickness is equal, and the
line shape is beautiful.
line shape is beautiful.
Application case
Customer Feedback：
CWL Can offer you one stop solution services , pls send your requirement on inquiry !!!
Our Advantages
Caiweile traffic facilities co., LTD
is an expert manufacturing company ,which focus on manufacturing ,research and development road marking machinery ,
We have a variety of product series .as follow :
Series of pre-heater
Series of Marking Machine
Series of Auxiliary Machine
Series of CWL Cold Solvent Road marking Machine
The series of Glisten scutcheon Equipment
The series of Glisten Scutcheon Equipment
What about you ?
1.If you are a
project buyer
,
we can provide a one-stop solution service.
2.If you are a
wholesaler
, we can provide customized service and competitive market price
3.If you are a
trader
, we can preside over multi-regional delivery assistance, door-to-door delivery, which can solve your storage problems and avoid unnecessary storage costs
Pls contact with us , will offer the one stop solution services for you !!!
