Quick Details
-
Model Number:
-
PT206
-
Output signal of PT206 sensor:
-
4~20mA 0~5Vdc 1~5Vdc 0~10Vdc 0.5~4.5Vdc
-
Accuracy:
-
0.1, 0.25, 0.5, 1.0%
-
power supply:
-
10.5-55V DC, 10.5-30V DC
-
Pressure range:
-
0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa
-
pressure type:
-
gauge (G), absolute (A), sealed gauge (S)
-
Protection class:
-
IP65
-
Ex-proof:
-
ExiaII CT4/CT6, ExidIICT6
-
Housing material:
-
304SST
-
Certification:
-
CE, RoHs
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Atech
-
Model Number:
-
PT206
-
Output signal of PT206 sensor:
-
4~20mA 0~5Vdc 1~5Vdc 0~10Vdc 0.5~4.5Vdc
-
Accuracy:
-
0.1, 0.25, 0.5, 1.0%
-
power supply:
-
10.5-55V DC, 10.5-30V DC
-
Pressure range:
-
0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa
-
pressure type:
-
gauge (G), absolute (A), sealed gauge (S)
-
Protection class:
-
IP65
-
Ex-proof:
-
ExiaII CT4/CT6, ExidIICT6
-
Housing material:
-
304SST
-
Certification:
-
CE, RoHs
The Series PT206 Sanitary Pressure Transmitter is designed to meet the applications in food, dairy, beverage and pharmaceutical processing, liquid level control, and sanitary pipelines. The unit is fully sealed to withstand high pressure wash-down in Clean-in-Place and Sterilize-in-Place installations.
Tri-clamps are one of the most common types of pipe connections in the food, beverage, biotech, and pharmaceutical industries. This type of connection consists of a gasket compressed between two tri-clamp ferrules or flanges which are mechanically compressed in place with a clamp. Tri-clamp fittings are available in a variety of sizes, can be constructed from either steel or plastic, and can be either permanent or temporary. The clamp itself also comes in a variety of designs for ease of disassembly and cleaning.
It is therefore essential to select the right type of tri-clamp fitting to ensure the connection operates effectively in a given application. Choosing the right size and type
OEM, ODM, Customization welcome!
|

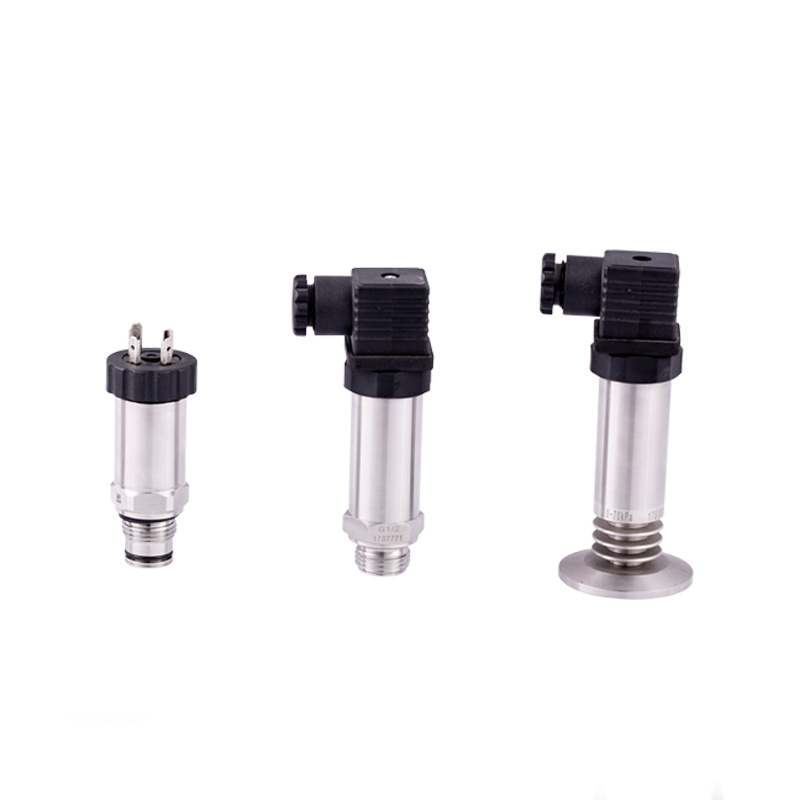

High Temperature Sanitary Clamp Flush Type Pressure Transmitter
|
|
|
Applicable media
|
Liquid, Gas, Steam
|
|
Pressure measurment
|
Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
|
|
Pressure range
|
0-0.2 ...100kPa, 0-0.2 ...1000kpa, 60 MPa
|
|
Output signals
|
Typical output 4...20mA, 0.5...4.5VDC, For option: 1-5V, 0-5V, 0-10V DC
|
|
Accuracy
|
0.25%, 0.5%, 1.0%FS
|
|
Stability
|
±0.25% FS/year
|
|
Zero drift
|
50% of full range span.
|
|
Max overload
|
200% of sensor range
|
|
Display
|
LED (Optional)
|
|
Housing material
|
304SS, 316L
|
|
Mechanical connection
|
Clamp,Flush and Flange
|
|
Non-explosion: 10.5~45V DC
|
|
| Power supply |
EEX ia:10.5~30 V DC
|
|
Ambient temperature
|
-40~85℃
|
|
Process temperature
|
-40~85℃
|
