Quick Details
-
Features:
-
mobile corn drying equipment
-
Production Capacity:
-
7-10 t/h
-
Dimension(L*W*H):
-
6200*2200*3400mm
-
Power:
-
8.5-36KW
-
Voltage:
-
380V
-
Weight (KG):
-
1000
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
GOLMYT
-
Application:
-
mobile corn drying equipment
-
Features:
-
mobile corn drying equipment
-
Production Capacity:
-
7-10 t/h
-
Dimension(L*W*H):
-
6200*2200*3400mm
-
Power:
-
8.5-36KW
-
Voltage:
-
380V
-
Weight (KG):
-
1000
-
After-sales Service Provided:
-
Free spare parts

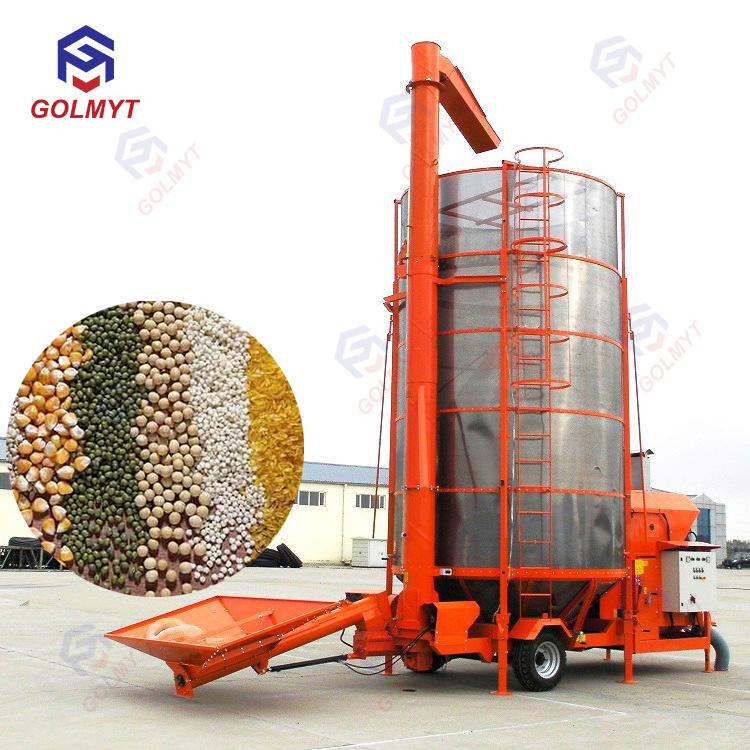

Grain dryer Movable tower grain dryer mobile corn drying equipment
Introduction
Today cereal drying technology is as important as cereal storage. GOLMYT do our best to meet customer’s requirement and supply high efficiency and quality grain dryer.It is widely use for corn, paddy, wheat, sesame,bean,and other particle material,etc.
Advantage:
1.Adopt advance technology from Europe:With Short drying time, keep cereal feature with suitable temperature, reduce drying cost.
2.Body compact, easy operation, especially design for small and middle farmer and company
3.High drying efficiency, easy transport, save space, it can be moved to farm and drying everywhere.
4.Widely use for corn, paddy, wheat, sesame, etc.
Features:
1.Mobile,it with mobile wheel and device, can be towed by tractor.
2.Cereal without pollution, fresh air as input and make sure cereal clean without pollution.
3.Automatic control system for temperature and moisture.
4.Display on time
5.Machine can be separate and install together, easy transport
Fuel can choose
1.Coal,wood,biomass materials(Just need use fuel oven as photos show)
2.Gas (Can use gas burner)
3.Diesel oil(Can add diesel engine generator)
Product parameter
|
Model |
2D |
4D |
6D |
10D |
||
|
Silo Volume |
3.8m³ |
6.5m³ |
9.6m³ |
15.6m³ |
||
|
Dry type |
Low temperature hot air and grain Mixed flow cycle |
|||||
|
Hot air temperature |
Paddy:45-60℃;Corn:100-130℃;Wheat:90-110℃
|
|||||
|
Transport height |
2.7m |
2.9m |
2.9m |
2.95m |
|
|
|
Operation height |
3.46m |
3.85m |
4.92m |
6.65m |
|
|
|
Area |
13m2 |
15.5m2 |
16.3m2 |
25m2 |
|
|
|
Oven |
Clean oven Ignition by manual Fuel can be coal,desiel oil,natural gas,etc |
|||||
|
Fuel consumption |
Coal |
(Standard conditions)18kg/t |
||||
|
Gas |
(Standard conditions)7m³/t |
|||||
|
Diesel oil |
(Standard conditions)7.5L/t |
|||||
|
Total power |
8.5 |
12.9 |
19.4 |
36 |
|
|
|
Daily Production: |
20 t/day |
35 t/day |
50 t/day |
80-100 t/day |
|
|
|
Room temperature |
-10-40℃ |
|||||
|
Feeding time |
8-10 min |
12-16 min |
18-22 min |
22-28 min |
|
|
|
Discharging time |
8-10 min |
10-15 min |
15-20 min |
20-25 min |
|
|
|
Precipitation rate (%/h) |
Paddy:1.7-2.5℃;Corn:3.8-6;Wheat:2.8-4.5℃ |
|||||
|
Safety Devices |
Thermal relay,Error alarm, Times Switch, Overheat alam |
|||||
|
The performance of above parameter and Precipitation rate is for reference value,the actual value will be different due to atmospheric temperature,relative humidity,dry species,hot air temperature and moisture content and drying rate.Daily production is calculated by the condition from25% to 14% moisture. |
||||||
