Quick Details
-
Dimension(L*W*H):
-
800*800*2700mm
-
Weight:
-
200 KG
-
Mobility:
-
Can Move
-
Name:
-
well drilling machine
-
Product name:
-
hydraulic water well drilling machine
-
Drilling depth(m)::
-
200 well drilling machine
-
Drill rod diameter (mm):
-
42-60
-
Drill angle:
-
90-75
-
Matching power(KW):
-
14.7kw well drilling machine
-
Stroke(mm):
-
450
-
Drilling method:
-
drilling water rigs
-
Feature:
-
portable hydraulic drilling machine
-
Engine:
-
Disel Engine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hiyoung
-
Voltage:
-
220/380v,50/60HZ
-
Dimension(L*W*H):
-
800*800*2700mm
-
Weight:
-
200 KG
-
Mobility:
-
Can Move
-
Name:
-
well drilling machine
-
Product name:
-
hydraulic water well drilling machine
-
Drilling depth(m)::
-
200 well drilling machine
-
Drill rod diameter (mm):
-
42-60
-
Drill angle:
-
90-75
-
Matching power(KW):
-
14.7kw well drilling machine
-
Stroke(mm):
-
450
-
Drilling method:
-
drilling water rigs
-
Feature:
-
portable hydraulic drilling machine
-
Engine:
-
Disel Engine
200m water well drilling rig drill pump driller hydraulic geothermal boring equipment well drilling machine
Product Description
CHARACTERISTICS :
(1)light weight, easy portable, suitable for different working environment, like plain or valley places.
(2)Handle rack, easy operation, safe for body.
(3)Hydraulic power drilling device, high effiency.
(4)Fast Drilling speed; horizontal and vertica direction drill.
(1)light weight, easy portable, suitable for different working environment, like plain or valley places.
(2)Handle rack, easy operation, safe for body.
(3)Hydraulic power drilling device, high effiency.
(4)Fast Drilling speed; horizontal and vertica direction drill.
|
The whole machine parameters
|
|
|
|
|||
|
Model
|
HY-130Y/130YY
|
HY-180Y/180YY
|
HY-200Y/200YY
|
|||
|
Drill hole depth
|
130m
|
180m
|
200m
|
|||
|
Maximum opening diameter
|
Φ75-Φ220mm
|
Φ75-Φ220mm
|
Φ75-Φ325mm
|
|||
|
Final hole diameter
|
Φ75mm
|
Φ75mm
|
Φ75mm
|
|||
|
Take the initiative to drill pipe
|
53/59*4200mm
|
53/59*4200mm
|
53/59*4200mm
|
|||
|
Drill pipe diameter
|
Φ42-60mm
|
Φ42-60mm
|
Φ42-60mm
|
|||
|
Borehole inclination
|
90°- 75°
|
90°- 75°
|
90°- 75°
|
|||
|
Power(diesel engine)
|
13.2/2200kw/r/min
|
13.2/2200kw/r/min
|
15/2200kw/r/min
|
|||
|
Size
|
2.4*0.8*1.4m
|
2.4*0.8*1.3m
|
2.7*0.9*1.5
|
|||
|
Vertical shaft
|
|
|
|
|||
|
Vertical spindle speed
|
142,285,570r/min
|
130,480,730,1045r/min
|
64,28,287,557r/min
|
|||
|
Vertical stroke
|
450mm
|
450mm
|
450mm
|
|||
|
Hoist
|
|
|
|
|||
|
Single rope lift
|
2000
|
2100
|
2500
|
|||
|
Single rope winding speed
|
0.41-1.64m/s
|
0.35-2.23m/s
|
0.12-0.95m/s
|
|||
|
Drum diameter
|
Φ140mm
|
Φ140mm
|
Φ140mm
|
|||
|
Diameter of wire rope
|
Φ9.3mm
|
Φ9.3mm
|
Φ13mm
|
|||
|
Wire rope capacity
|
27m
|
27m
|
35m
|
|||
|
Rig
|
|
|
|
|||
|
Rated load
|
18t
|
18t
|
18t
|
|||
|
Effective height
|
6.5m
|
6.5m
|
6.5m
|
|||
|
Tower leg specifications
|
Φ73mm
|
Φ73mm
|
Φ89mm
|
|||
|
Mud pump
|
|
|
|
|||
|
Model
|
BW95
|
BW95
|
BW145
|
|||
|
Flow
|
95L/min
|
95L/min
|
145L/min
|
|||
|
Maximum pressure
|
1.2Mpa
|
1.2Mpa
|
2Mpa
|
|||
|
Reciprocating frequency
|
93times/min
|
93times/min
|
93times/min
|
|||
|
Suction pipe diameter
|
Φ51mm*4.5m
|
Φ51mm*4.5m
|
Φ51mm*4.5m
|
|||

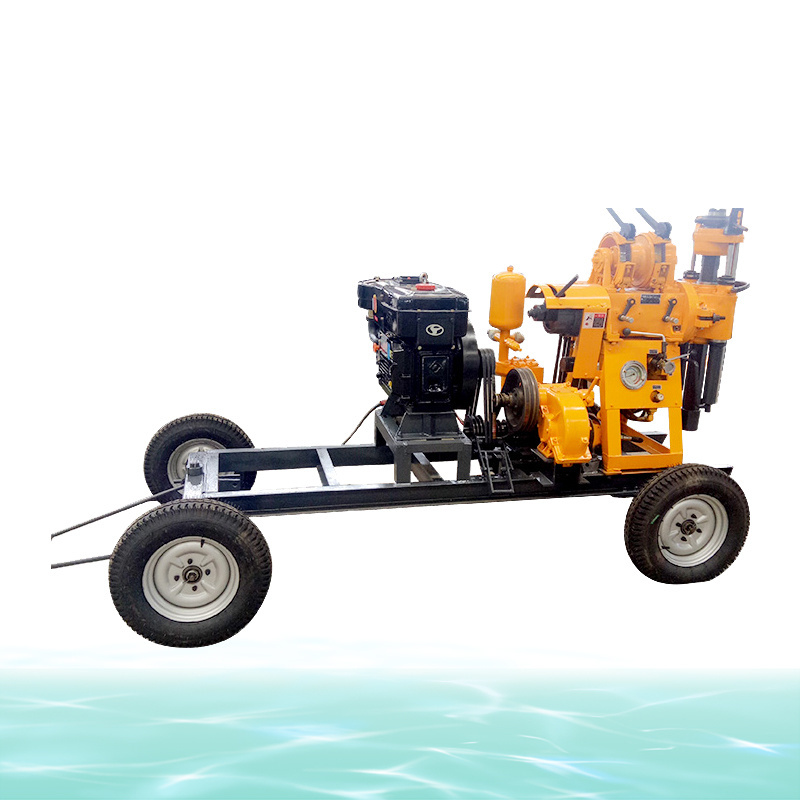

Product photo
Details Images
Host
The host consists of a drum, a planetary drive mechanism, a water cooling device and a lock.
Chuck
drilling process.
winch
The winch can lift vertically, horizontally or tilt to pull heavy objects.It is widely used for its simple operation, large amount
of rope winding and convenient displacement.
Vertical shaft
The main feature is that the rotary drill has a long vertical shaft, which can play a good role in guiding and fixing the
direction of the drill in drilling.
