Captain have gained trust and favor from clients by means of their superior quality, prompt delivery time and considerate best quality service.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
as customer's request
-
Disc Dia.:
-
N/A
-
No Load Speed:
-
0.7 m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Captain
-
Model Number:
-
CPYE 9275 - 1
-
Warranty:
-
24 months
-
Front Door Size:
-
2340*2280 mm(W*H)
-
Service Door Size:
-
1950x940mm
-
Window:
-
1 set , 1300x1190mm
-
Basement:
-
Galvanized non-slip floor
-
Wall Panel:
-
3 sides rock wool wall panels
-
Air Exhaust:
-
3 kW centrifugal fan ,air capacity is 5000 -8000m³/h
-
Ceiling Lights:
-
2 sets Atex LED Lights
-
Heater system:
-
1 set 12kw Hot air blower
-
Triple filtration:
-
Ceiling filter + Folded dry-type filter paper + Fiber-glass filter
-
Certification:
-
CE
Quick Details
-
Power:
-
14 KW
-
External Size:
-
6058x2438x3303mm
-
Internal Size:
-
5000x2250x2300 mm
-
Voltage:
-
as customer's request
-
Disc Dia.:
-
N/A
-
No Load Speed:
-
0.7 m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Captain
-
Model Number:
-
CPYE 9275 - 1
-
Warranty:
-
24 months
-
Front Door Size:
-
2340*2280 mm(W*H)
-
Service Door Size:
-
1950x940mm
-
Window:
-
1 set , 1300x1190mm
-
Basement:
-
Galvanized non-slip floor
-
Wall Panel:
-
3 sides rock wool wall panels
-
Air Exhaust:
-
3 kW centrifugal fan ,air capacity is 5000 -8000m³/h
-
Ceiling Lights:
-
2 sets Atex LED Lights
-
Heater system:
-
1 set 12kw Hot air blower
-
Triple filtration:
-
Ceiling filter + Folded dry-type filter paper + Fiber-glass filter
-
Certification:
-
CE
Product Description
We have a strong R&D team to ensure the quality and accuracy of products. Outline the most spiritual space with minimalist lines. Our simple and durable design concept and exquisite workmanship will not only be products, but also bring you aesthetic artistic enjoyment.
Captain have gained trust and favor from clients by means of their superior quality, prompt delivery time and considerate best quality service.
Inside DETAILS
Want to read more? Contact us.
Specification
|
Designed for the application of paint, glue, varnish or other solvent-based products. The layout possibilities are endless
Perfectly suited for liquid application and for powder application, as well as for paint storage, while respecting current standards. |
|
|
||
|
Inside Dimensions (L-W-H)
|
|
5000×2250×2300 mm(L×W×H)
|
||
|
Outside Dimensions (L-W-H)
|
|
6058×2438×2591 mm(L×W×H)
|
||
|
Air exhaust fan
|
|
one set 3 kW centrifugal fan
|
||
|
Air flow
|
|
5000-8000 m3/h
|
||
|
Average suction speed
|
|
0.7 m/s
|
||
|
Inside height
|
|
2000mm
|
||
|
Inside width
|
|
2000mm
|
||
|
Window
|
|
1300x1190mm
|
||
|
Service door
|
|
1950x940mm
|
||
|
Outside Height without fan
|
|
2591 mm
|
||
|
Voltage
|
|
220v-240v,1ph ;380v-400v,3ph
|
||
|
Advantage:
• Modular, providing many equipment • Triple filtration (Ceiling filter + Folded dry-type filter paper + Fiber-glass filter ) • Front door with filter cotton frame to filter the dust • One set 3kw centrifugal fan with strong air flow 5000-8000 m3/h (fan motor with rain protection,with one piece air duct ) • Control box with filter blockage control • Service door and window • Galvanized non-slip floor • 3 sides rock wool wall panels • Atex LED lighting • Equipped with air treatment and compressed air reel • Equipped with hot air blower , can be used in winter and can be used for heating |
|
|
||
|
Payment terms
|
50% PAYMENT IN ADVANCE , 50% AGAINST OF BILL OF LADING
|
|
||
|
Delivery
|
3-4 weeks after receievd the deposit
|
|
||
|
Warranty
|
12 months
|
|
||
|
|
|
|
||
|
Note:
|
|
|
||
|

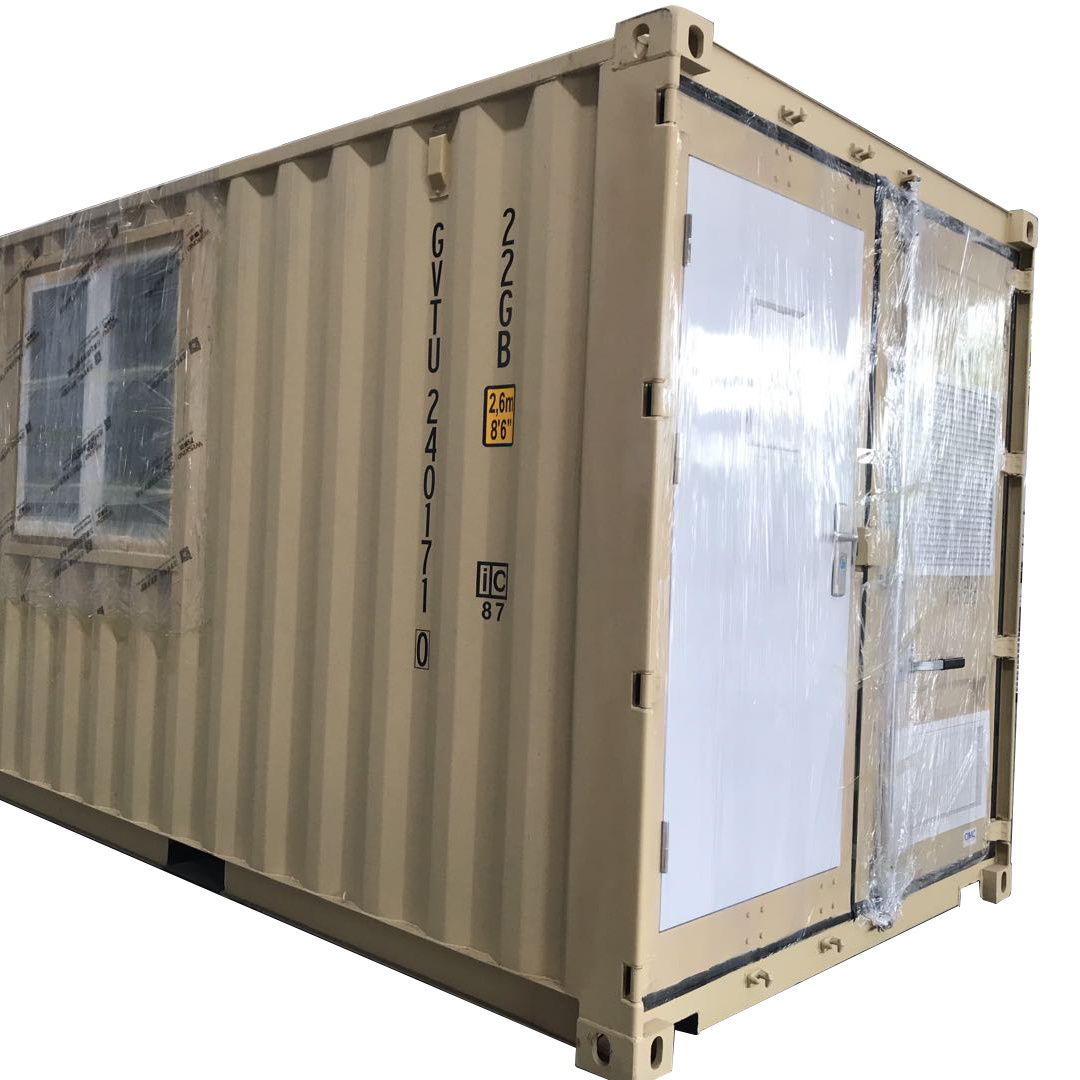

1. The outside color of container is blue or yellow
|
|
|
||
|
2. Can be shipped as the SOC (Shipper's Own Container)
|
|
|
||
|
3 .Optional: Not equipped with fire extinguisher, can provide a fire extinguisher shelf (because the fire extinguisher may explode
during container transportation, it is recommended to buy a fire extinguisher locally) |
|
|
||
Packing & Delivery
suitable for ocean shipping
