Designed to satisfy the needs of industrial users, the IPS- 8510 touch thermal inkjet (TIJ) printer is the ideal coding and
marking solution for a range of applications, from serialization to simple date and lot coding, suitable for both stand-alone
operation and fully integrated into production line equipment. From basic alphanumeric codes to complex bar codes and graphics,
the IPS-8510 has the capability to print a wide range of codes on fast production lines. The 8510 TIJ printer helps customers
improve their productivity, quality and efficiency targets
- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
Fast Dry Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IPS
-
Voltage:
-
220V 50-60HZ
-
Dimensions(L*W*H):
-
45*25*15cm
-
Weight:
-
8 KG
-
Marketing Type:
-
Other
-
Product name:
-
TIJ printer
-
Model:
-
IPS-8510
-
Technical support:
-
online
-
Interface:
-
7 inch touch screen
-
Print Speed:
-
0~200m/min(300DPI)
-
Max head:
-
4 head with one controller
-
Power supply:
-
110-220VAC 50/60Hz
-
Font:
-
true type
-
Print Height:
-
12.7mm/25.4mm/38.1mm/50.8mm
-
Technology:
-
HP 2.5
Quick Details
-
Print Dimension:
-
1-12.7mm, 1-25.4mm
-
Condition:
-
New
-
Color & Page:
-
single color
-
Ink Type:
-
Fast Dry Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IPS
-
Voltage:
-
220V 50-60HZ
-
Dimensions(L*W*H):
-
45*25*15cm
-
Weight:
-
8 KG
-
Marketing Type:
-
Other
-
Product name:
-
TIJ printer
-
Model:
-
IPS-8510
-
Technical support:
-
online
-
Interface:
-
7 inch touch screen
-
Print Speed:
-
0~200m/min(300DPI)
-
Max head:
-
4 head with one controller
-
Power supply:
-
110-220VAC 50/60Hz
-
Font:
-
true type
-
Print Height:
-
12.7mm/25.4mm/38.1mm/50.8mm
-
Technology:
-
HP 2.5
How to contact us
Product Description
IPS-8510 A self-installed, high-resolution TIJ printer for your primary packaging and outer case coding needs
Simple Usability
Intuitive, graphical user interface with easy to learn icon-based controls.
Global language interface and keyboard by Android system. Four printhead designs to aid packing line integration.
Maintenance free
No wear items or replacement parts except ink cartridge. Simple cartridge change can happen in less than one minute, without specialized training.
Clean, no-mess operation. t Quick update of system by cloud internet.
Clean, no-mess operation. t Quick update of system by cloud internet.
High Efficient
High speed printing of 208 meter per minute at 300*300 dpi. High resolution print (up to 600 dpi) suitable for
high quality small and large font codes. t Ink level real time tracking.
high quality small and large font codes. t Ink level real time tracking.
Multiple ink solutions for different type of products.
Openness and Compatibility
Openness and Compatibility
OEM/ODM service available.
Distributor can set their unique boot screen and chip code. t Hardware and software are open for secondary development.
|
MODEL
|
IPS-8510
|
IPS-8520
|
IPS-8530
|
IPS-8540
|
|||
|
Maximum Print Resolution
|
600*600 dpi
|
|
|
|
|||
|
Print Speed
|
208 meter/minute at 300*300 dpi (Faster at lower dpi)
|
|
|
|
|||
|
Single Printhead Height
|
12.7mm (0.5 inch)
|
|
|
|
|||
|
Number of Printheads
|
1
|
2
|
3
|
4
|
|||
|
User interface
|
7 inch full-color LCD (1280*800) and touch screen
|
|
|
|
|||
|
Memory
|
DRAM: 1G, FLASH: 8G
|
|
|
|
|||
|
Controller Dimensions
|
L230mm*W157mm*H34mm
|
|
|
|
|||
|
Printhead Dimensions
|
L145mm*W66mm*H40mm
|
|
|
|
|||
|
Barcode
|
Multiple linear and 2D bar codes available including DataMatrix. EAN8, EAN13, CODE 128, GS1,QR，etc.
|
|
|
|
|||
|
Date Interfaces
|
Ethernet, RS232, USB interface, alarm, photocell, synchronizer
|
|
|
|
|||
|
Operation System
|
Android
|
|
|
|
|||
|
Language
|
Global language by Android system
|
|
|
|
|||
|
Keyboard
|
Global keyboard swift by Android system
|
|
|
|
|||
|
Temperature Range
|
(-20°C to 70°C )
|
|
|
|
|||
|
Electronical Requirements
|
100-240 VAC 50/60Hz
|
|
|
|
|||
|
Packing Size
|
54cm*38cm*15cm
|
|
|
|
|||
|
Ink Solutions
|
42ml of water based and solvent based ink cartridge available, multiple color of ink cartridge available.
|
|
|
|
|||
Detailed Images

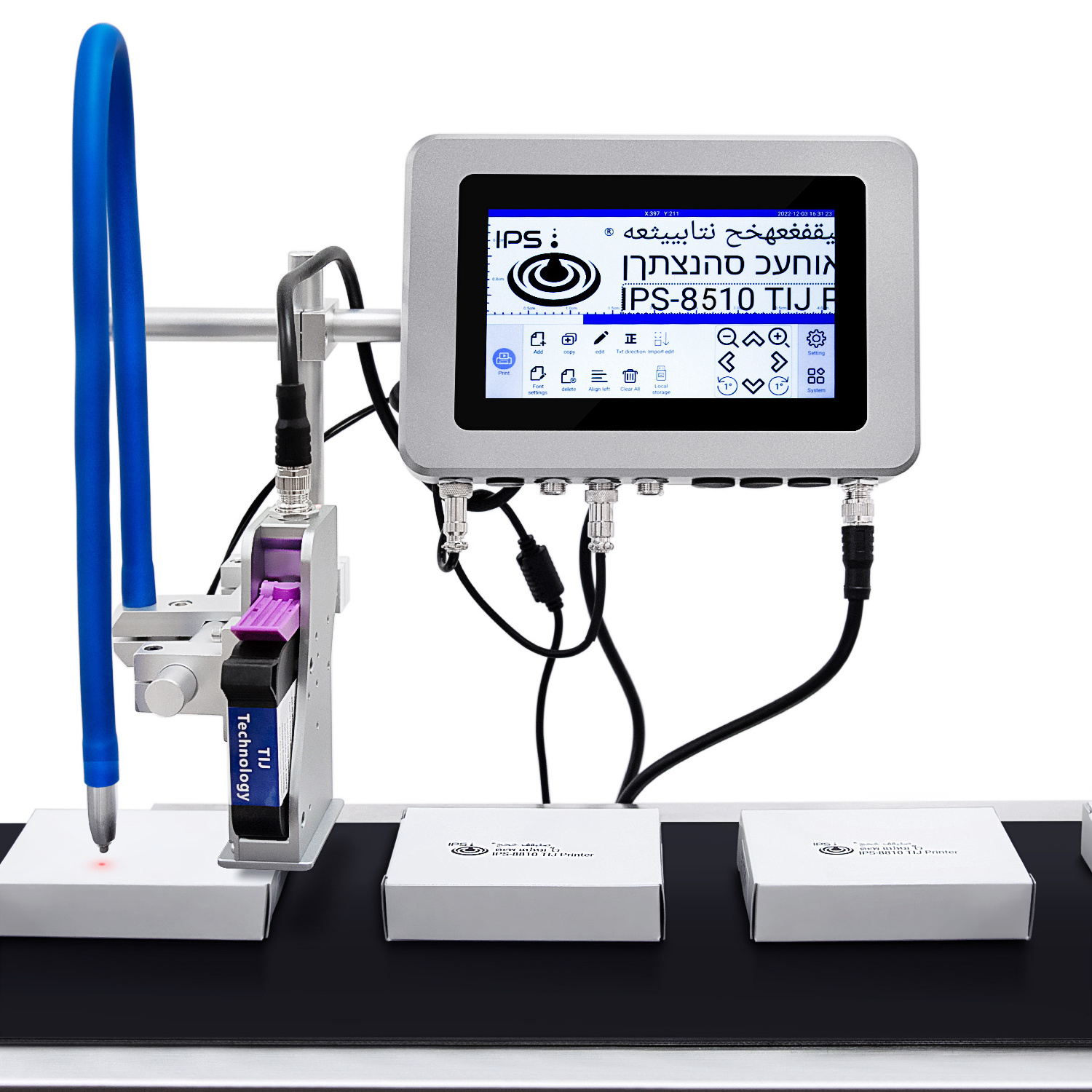

Touch screen
1.Operation interface with 7 inch touch screen make it easier to operate.
2.High system integration, small size, less component and easy to install and maintain.
3.Full metal shell, industrial design and stronger.
1-4 print head
1.Take HP original driving board to make print effect higher quality
2.Wireless print head verify tech , more stable and intelligent
