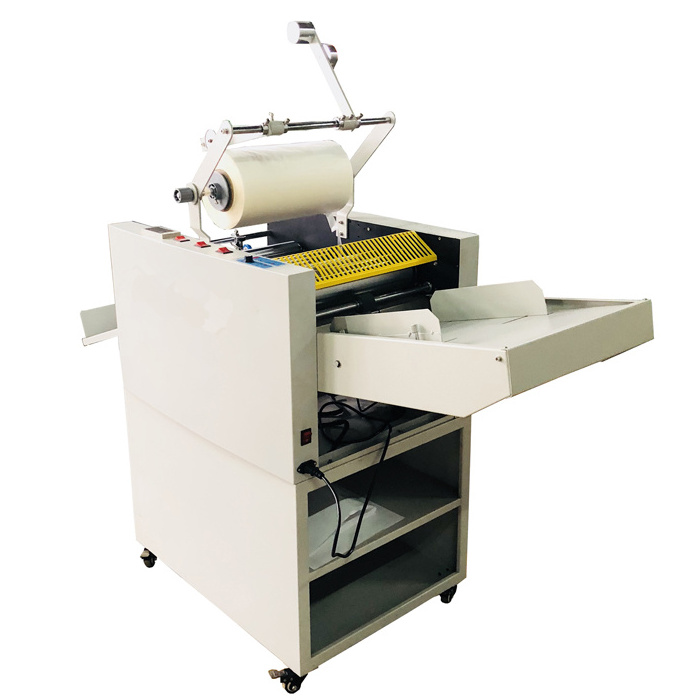

1 Year Warranty 520E Automatic LCD Laminating Machine

1 Year Warranty 520E Automatic LCD Laminating Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2300

≥3 Pieces

US $2250

≥5 Pieces

US $2200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Keyword:: Automatic LCD Laminating Machine

Max. Laminate width:: 490mm

Laminate Thickness:: 60-800gsm

Max. Laminate speed:: 0-10m/min

Heating Way:: By oil

Feeding pape:: Automatic

Cut paper to sheet:: Automatic

Cutting and Perforating knife:: Yes

Collect paper:: Automatic

Input paper capacity:: 500 Sheets or less than 5cm

Quick Details

Packaging Type:: Film, Foil, Pouch, case

Packaging Material:: Plastic, Metal, Wood

Driven Type:: Pneumatic

Keyword:: Automatic LCD Laminating Machine

Max. Laminate width:: 490mm

Laminate Thickness:: 60-800gsm

Max. Laminate speed:: 0-10m/min

Heating Way:: By oil

Feeding pape:: Automatic

Cut paper to sheet:: Automatic

Cutting and Perforating knife:: Yes

Collect paper:: Automatic

Input paper capacity:: 500 Sheets or less than 5cm

Product Description

Product Application

This machine is automatic feeding of paper and automatic separation paper and collecting,with advantages of compact structure, stability,safe and reliable operation, ultra-small footprint and convenient mobility that are ideal for printing store and package printing houses.

The unit adopts programmable reduction box, which makes it a stable and energy-saving equipment. automatically
cutting off excess film, with back-rolling device to adjust the flatness of the paper that produce a fast finished product.

Oil Heating Digital Automatic Laminating Machine
Model	SG-390E	SG-520E
Max. laminate width	370mm	490mm
Laminating thickness	60-800 gsm	60-800 gsm
Laminating speed	0-10m/min	0-10m/min
Temperature	80-120 degree	80-120 degree
Heating	By Oil	By Oil
Feeding paper	Automatic	Automatic
Slitting paper to sheet	Automatic pneumatic	Automatic pneumatic
Cutting & perforating blade	Yes
Collect paper	By Tray
Power	1.6KW
Pressure	1-10Mpa
Air pump	$60(Optional)

Main Features

1) SG-520E is one full automatic oil heating laminating machine( automatic paper feeding by rubber roller, automatic paper seperating after laminating), the machine occupy a small area, operate easy, speed can be controled

2) The machine is with trimming blade, can cut off the extra film when paper laminating, this machine can be laminate paper thickness from 100gsm to 350gsm, the laminated item is water proof,durable and clear.

3) Heating by hot oil, so the temperature on the roller surface are the uniform.

4) Equipped with anti-curl device, ensure there is no curl after the thin paper laminating.

Packing & Delivery

1 Year Warranty 520E Automatic LCD Laminating Machine

Packaging for Automatic LCD Laminating Machine
Size	130 (L) * 89 (W) * 110 (D)
Weight	130KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Certifications

Hangzhou Fuyang Sigao Office Supplies CO., LTD was founded in 2016. Our company is a synthetical enterprise occupying more than ten thousand square meters of factory building. We own import and export right.
The major products of our corporation are paper cutter, perfect binding machine, glue binding machine, wire binding machine, card cutter, laminating machine, laminaor, card cutter, creasing machine and various of binding materl (Binding plstic comb, double loops wire, spiral coil, paper cover, PVC cover, slide binder,etc). In addition, we also deal with office consumption, such as cover paper of binding,clamp bars, plastic and rubber rings, and iron rings, file bag, ruler.etc. Our products have won high reputation among customer at home and abroad for the reliable performance and novel design.
Welcome to visit our company and cooperate with us.

FAQ

1.Are you a factory or trading company ?

Yes, we are factory. Our factory located in Fuyang, Hangzhou.

1hour from "Hanghou Internatil Airport "to our factory. All our clients, from home or abroad, are warmly welcome to visit us!

2.How does your factory do regarding quality control?

Quality is priority. Our factory always attach great importance to quality controlling from the verybeginning to the very end. Our factory has gained CQC, ISO, SGS,FSC authentication

3.Can you give us discount if we make big order?

As a factory, we will provide offer with MOQ. If the quantity less than MOQ, we will add inland freight. If the quantity more than MOQ, we can negotiable the price.
