Quick Details
-
Brand Name:
-
NOYAFA, NOYAFA
-
Model Number:
-
NF-8601S
-
Material:
-
ABS+electric parts
-
Port:
-
RJ45, RJ11, BNC,PoE &Ping
-
Test length:
-
RJ11,RJ45 ,BNC
-
Tracking Type:
-
RJ45, RJ11, BNC , and Metal Cable
-
Wiremap Type:
-
RJ45, BNC Cable
-
Other Function:
-
PING&PoE&Portflash function
-
Certification:
-
CE, RoHS, FCC
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
China
-
Brand Name:
-
NOYAFA, NOYAFA
-
Model Number:
-
NF-8601S
-
Material:
-
ABS+electric parts
-
Port:
-
RJ45, RJ11, BNC,PoE &Ping
-
Test length:
-
RJ11,RJ45 ,BNC
-
Tracking Type:
-
RJ45, RJ11, BNC , and Metal Cable
-
Wiremap Type:
-
RJ45, BNC Cable
-
Other Function:
-
PING&PoE&Portflash function
-
Certification:
-
CE, RoHS, FCC

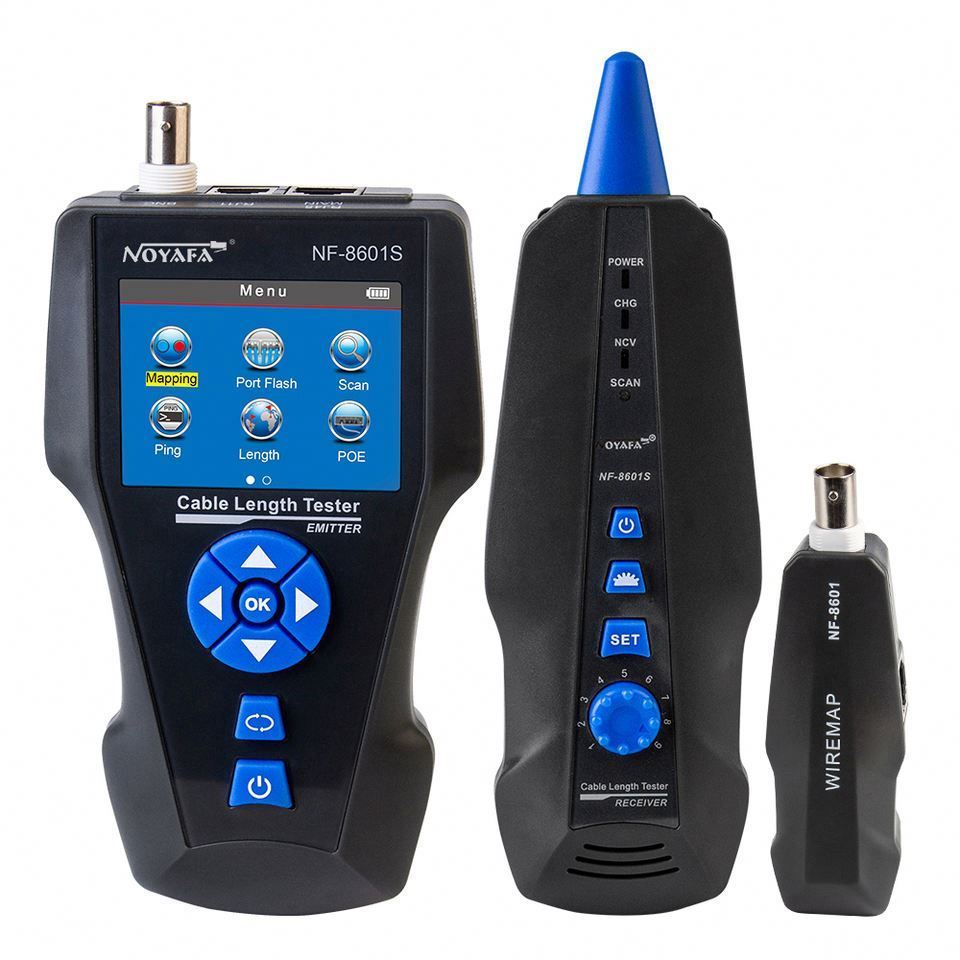

Products Description
|
Main function
|
|
1. TDR theory to measure length of cat5e, cat6 and cat7 cable, coaxil cable, telephone cable.
2. Wiremapping with length and provide the distance to fault information. 3. PoE function: identify which pins are providing power and detect how much voltage. 4. PING function to test network performance, data packet, MIN&MAX time. 5. Quickly find the targeted cable without stripping isolation among unknown cables. 6. Hub blinks for locating network port by the flashing port light on Hub / Switch. 7. Voltage detector: included in receiver (90~1000V) |
|
Benefits:
|
|
1. Tone traces cable with complete AC fliter.
2. TF card function to export data from computer (50sets, TXT format) 3. 2 scan modes: common switch and PoE switch 4. 3.7V lithium battery for power supply and 2.8 inch color screen |
Specification
|
NF-8601S Transmitter specifications
|
|
|
|
Indictor
|
LCD 320x240 mm, with back light
|
|
|
Cable test types
|
STP/UTP 5E,6E network , telephone , coacial cable
|
|
|
Max. distance of wiremap
|
1000m
|
|
|
Max. distance of tracing
|
1000m
|
|
|
Max. distance of cable length
|
1000m
|
|
|
Max. distance of calibration
|
50m
|
|
|
Accuracy
|
up to 98%(after calibration)
|
|
|
Compatible connectors
|
RJ11,RJ45, PING/POE,BNC
|
|
|
Cable map indication
|
LCD (#1-#8)
|
|
|
Battery Type
|
3.7V lithium battery 1800mAh
|
|
|
Work temperature / humidity
|
10℃ ~ -60℃ / 0℃~70℃
|
|
|
Dimension(LxWxD)
|
173x92x34mm
|
|
|
NF-8601S Receiver specifications
|
|
|
|
Cable hunting
|
RJ11,RJ45, BNC
|
|
|
Types of cable
|
≥ 2 cores
|
|
|
Battery Type
|
3.7V lithium battery 1800mAh
|
|
|
Dimension(LxWxD)
|
183x58x35 mm
|
|
|
NF-8601S Remote unit specifications
|
|
|
|
Compatible connectors
|
RJ11,RJ45, BNC
|
|
|
Dimension(LxWxD)
|
106x32x30mm
|
|
Product packaging
|
Packing
|
|
Standard carton :
Weight: 22.2kg Carton size:48.8x43.5x44.5 cm Quantity : 30pcs/ctn Weight: 20.23kg Shipping: All shipping way is available |
