Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Cptech
-
Dimension(L*W*H):
-
3000*1644*1811 mm
-
Weight:
-
1000 KG
-
Machinery Capacity:
-
80-100 minutes
-
Driving Mode:
-
Servo motor
-
Yield(pcs/min):
-
Below 500ml bottle: 100bpm /Above 500ml bottle: 80-90bpm
-
Operating direction:
-
Left or Right
-
Labeling Accuracy:
-
±1.0 mm
-
Inner diameter of label roll:
-
76 mm
-
Outer diameter of label roll:
-
350 mm(max)
-
Suitable label size:
-
Width 15-150 mm length 15-250 mm
-
Suitable labeling products size:
-
With 4 bottle sizes
-
Voltage (can customized):
-
Three phases 380V
-
Printer use air:
-
5kg/cm ²
Quick Details
-
Application:
-
APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Textiles
-
Packaging Type:
-
Wooden Box
-
Packaging Material:
-
Wood
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Cptech
-
Dimension(L*W*H):
-
3000*1644*1811 mm
-
Weight:
-
1000 KG
-
Machinery Capacity:
-
80-100 minutes
-
Driving Mode:
-
Servo motor
-
Yield(pcs/min):
-
Below 500ml bottle: 100bpm /Above 500ml bottle: 80-90bpm
-
Operating direction:
-
Left or Right
-
Labeling Accuracy:
-
±1.0 mm
-
Inner diameter of label roll:
-
76 mm
-
Outer diameter of label roll:
-
350 mm(max)
-
Suitable label size:
-
Width 15-150 mm length 15-250 mm
-
Suitable labeling products size:
-
With 4 bottle sizes
-
Voltage (can customized):
-
Three phases 380V
-
Printer use air:
-
5kg/cm ²

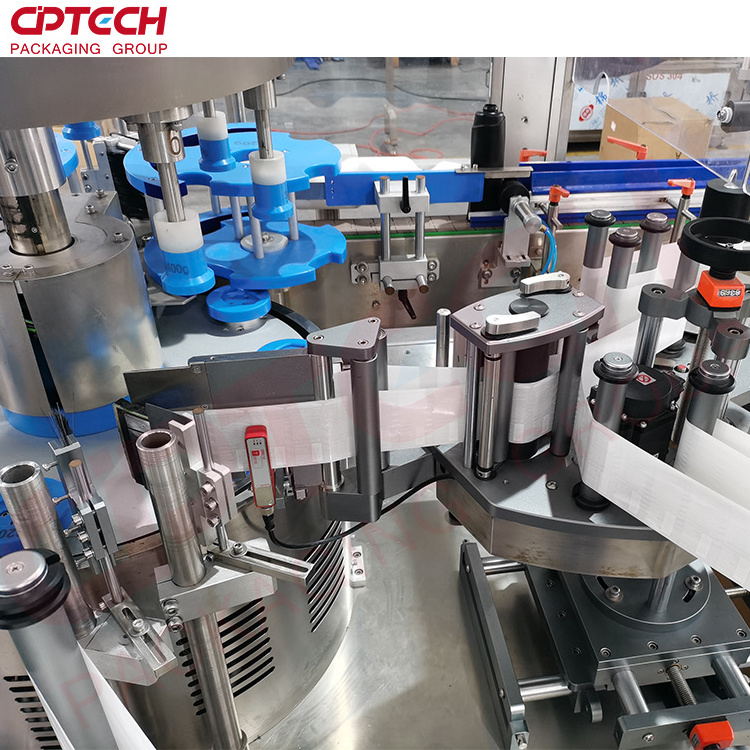

High Speed Labeling Machine
|
Model |
CPT-B100 |
|
Driving Mode |
Servo motor |
|
Yield ( pcs/min ) |
Below 500ml bottle: 100bpm Above 500ml bottle: 80-90bpm |
|
Operating direction |
Left or Right |
|
Labeling Accuracy |
±1.0 mm |
|
Inner diameter of label roll |
76 mm |
|
Outer diameter of label roll |
350 mm(max) |
|
Suitable label size |
Width 15-150 mm length 15-250 mm |
|
Suitable labeling products size |
With 4 bottle sizes |
|
Printer use air |
5kg/cm ² |
|
Voltage (can customized) |
Three phases 380V |
|
Power ( w ) |
11KW |
|
Weight ( kg ) |
800KGS |
| ltems | Description | Unity | Brand |
| 1 | HMI (Touch screen) | 1 Set | Mitsubishi |
| 2 | programmable control (PLC) | 1 Piece | Mitsubishi |
| 3 |
Labeling engine (servo system ) |
1 Set | Japan Mitsubishi |
|
1 Set
|
Japan Mitsubishi | ||
| 4 | Sensor (check product) | 5 set s | Sick, Germany |
| 5 | Sensor (check label) | 1 set | German LEUZE |
| 6 | Low voltage circuit breaker, terminal, relay | Each 1set | France Schneider |
| 7 | Pressing heads system ( servo motor ) | 8 sets | Mitsubishi |
| 8 | Frequency converter | 2 set | Mitsubishi |
| 9 | Main motor | 1 set | Italy Transtecno |
| 10 | Conveyor motor | 1 set | Italy Transtecno |
| 11 | Pneumatic | 1 set | Taiwan, Airtac |
FAQ.
Q1: Does 0% advance payment is true?
A: Yes, its true, it is our variety payment terms. It has 0% 30% 50% as option.
Q2: Are you factory or trading company?
A: We are factory and manufacturer, and we are also doing trading to service our client’s variety demand.
Q3: How many years warranty time?
A: We provide 1 year warranty time. And it has one sets spares free together with machine.
Q4: Does video call FAT or visiting available ?
A: Yes, we can doing video call for visiting our plant or doing FAT.
Q5: How can you guarantee your quality?
A: We can provide 0% advance payment for Linear capping machine/Turntable/Elevator/Semi-auto spindle capper, you can take the machine once the FAT is success. This way will bring you 100% safety and make sure that you have the satisfied quality machine.
Q6: How can I make sure that my payment is safe?
A:We can do business by through Alibaba, Alibaba will provide guarantee to make your money is safe.
Q7. Does customized machine is available?
A: Yes, customized machine is one of our strengths.
Q8: can you pls help to buy other machines?
A: The answer will be definite yes. And it will be our pleasure to get your trust.
Q9: Does China going to be a great country?
A: YES, and hope we can be the witness and participant.
