Quick Details
-
Lamp Body Material:
-
Aluminum Alloy
-
Color Temperature(CCT):
-
3000K,4000K,6000K, 2700K, 3000K, 3500K, 4000K, 6000K, 6500K
-
Input Voltage(V):
-
AC 110V / 220V
-
Lamp Luminous Flux(lm):
-
630-810
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jialin
-
Model Number:
-
JL-ESL-9W-D85
-

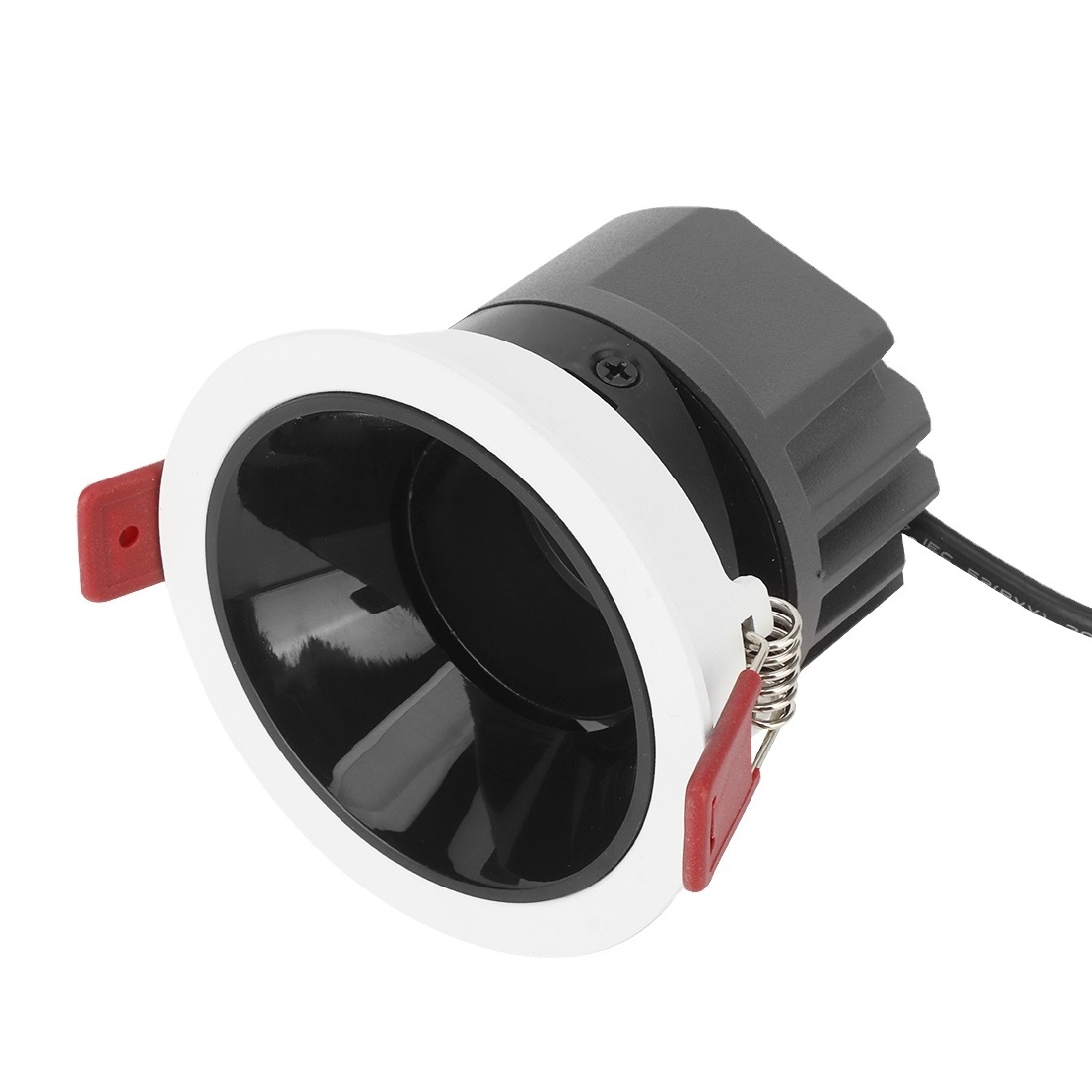

Product name:
-
Led Spot Light
-
Install Style:
-
Embedded
-
Driver:
-
Non Dimmable / Triac / 0-10V / Dali / Tuya
-
Size(mm):
-
D85*H65
-
Cut out size (mm):
-
D75
-
Watts:
-
9W/10W/12W
-
Beam Angle:
-
15 /24 /36 /60
-
Color:
-
White / Black
-
Certification:
-
CE RoHS FCC
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
80
-
Application:
-
Hotel, Restaurant, Home, Shop Mall, Office
-
Design Style:
-
Modern
-
Lamp Body Material:
-
Aluminum Alloy
-
Color Temperature(CCT):
-
3000K,4000K,6000K, 2700K, 3000K, 3500K, 4000K, 6000K, 6500K
-
Input Voltage(V):
-
AC 110V / 220V
-
Lamp Luminous Flux(lm):
-
630-810
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jialin
-
Model Number:
-
JL-ESL-9W-D85
-
Product name:
-
Led Spot Light
-
Install Style:
-
Embedded
-
Driver:
-
Non Dimmable / Triac / 0-10V / Dali / Tuya
-
Size(mm):
-
D85*H65
-
Cut out size (mm):
-
D75
-
Watts:
-
9W/10W/12W
-
Beam Angle:
-
15 /24 /36 /60
-
Color:
-
White / Black
-
Certification:
-
CE RoHS FCC
Product Parameter
led recessed downlight adjustable led spot lights cob downlight led recessed lighting spot lights led ceiling light spot
|
Type
|
LED Spotlight
|
|
|
|
|
|||
|
Color
|
Matt White / Matt Black
|
|
|
|
|
|||
|
Model
|
JL-ASL-10W-D85
|
JL-BSL-9W-D85
|
JL-CSL-12W-D85
|
JL-DSL-9W-D85
|
JL-ESL-9W-D85
|
|||
|
Size(mm)
|
Ø85*H82
|
Ø85*H70
|
Ø85*H67
|
Ø85*H75
|
Ø85*H65
|
|||
|
Cutout(mm)
|
Ø75
|
Ø75
|
Ø75
|
Ø75
|
Ø75
|
|||
|
Beam Angle
|
15° / 24° / 36° / 60°
|
15° / 24° / 36° / 60°
|
15°/24°/
36°/60°
|
15°/24°/
36°/60°
|
15° / 24° /
36° / 60°
|
|||
|
Power
|
10W
|
9W
|
12W
|
9W
|
9W
|
|||
|
LED Type
|
COB
|
|
|
|
|
|||
|
Protection(IP)
|
IP20
|
|
|
|
|
|||
|
CRI
|
80-90
|
|
|
|
|
|||
|
CCT
|
3000/4000/6000K
|
|
|
|
|
|||
|
Warranty
|
2 Years / 3 Years
|
|
|
|
|
|||
