Quick Details
-
Color:
-
full color
-
Panel Size:
-
320X160, 320X160
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
All
-
Specification:
-
Curved video wall
-
Brand:
-
Eagerled
-
Tube Chip Color:
-
full color
-
Display Function:
-
Videos, pictures, words
-
Usage:
-
indoor LED display
-
Pixels:
-
p1.56 p1.667 p1.875 p2 p2.5 p3 p4
-
Pixel Configuration:
-
SMD1010,,SMD1515,SMD2121
-
Brightness:
-
>1000cd/sqm
-
Input Voltage:
-
AC110V - AC240V
-
Package:
-
Carton
-
Warranty:
-
2 years
Quick Details
-
Application:
-
Advertising
-
Type:
-
LED
-
Brand Name:
-
Eagerled
-
Color:
-
full color
-
Panel Size:
-
320X160, 320X160
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
All
-
Specification:
-
Curved video wall
-
Brand:
-
Eagerled
-
Tube Chip Color:
-
full color
-
Display Function:
-
Videos, pictures, words
-
Usage:
-
indoor LED display
-
Pixels:
-
p1.56 p1.667 p1.875 p2 p2.5 p3 p4
-
Pixel Configuration:
-
SMD1010,,SMD1515,SMD2121
-
Brightness:
-
>1000cd/sqm
-
Input Voltage:
-
AC110V - AC240V
-
Package:
-
Carton
-
Warranty:
-
2 years
The reasons you choose our product:
1、
15 different pixel pitch module products
2、
24 hours response about your message
3、
2 years
warranty
4、
10 years experience in cooperation with engineering companies, stage equipment leasing companies and module dealers
Product Description
|
LED lamp brand
|
HS,Kinglight,Nationstar
|
|
Pixel pitch
|
1.56/1.66/1.87/2/2.5/3/4mm
|
|
Refresh Rate
|
>1920Hz or 3840Hz
|
|
Brightness
|
> 800cd/sqm
|
|
Gray Scale
|
14/16bit +/-
|
|
Control system
|
Novastar,Linsn and so ne
|
|
Voltage
|
110-230V
|
|
Connection from card to modules
|
Cables
|
|
Maintenance way
|
Front service
|
|
Application
|
Curved big LED display screen video wall
|
Virtual film Curved big LED wall
We can make curved LED steel cabinet to make curved LED display ,Good sulotion for circle or curved LED wall.

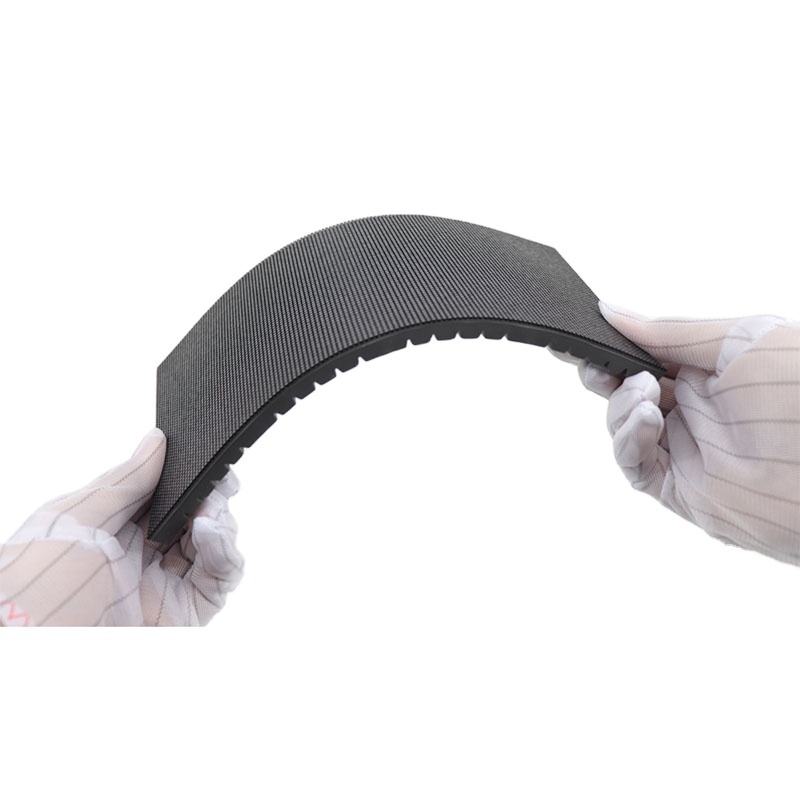

Second：Flexible LED modules
We also provide the flexible LED modules to our customers.
1、Modules size
320x160mm : P1.86/P2/P2.5/P3.07/P4
240x160mm: P1.58/P1.66/P1.87/P2/P2.5/P3/P4
2、
Product Features
●
Large Radian and High Flexibility
●
Ultra-thin And Ultra-light
●
Simple And Quick Installation
●
Magnetic Front Service Design
●
Higher Contrast Ratio And Definition
●
Customized Shape, Wide Application
For specific product parameters, please refer to the form at the bottom of this page
Product Application&Case
Product Parameters
|
240x120mm Series Flexible Soft LED LED Display Module
|
|
|
|
|
|
|
|||||
|
Pixel Pitch
|
LED Type
|
Module Size（MM）
|
Module Resolution
|
Driving Mode
|
Refresh Rate(Hz)
|
Brightness(Nits)
|
|||||
|
P1.579mm
|
SMD1010
|
240*120
|
152*76
|
1/38Scan
|
3840
|
≥800
|
|||||
|
P1.667mm
|
SMD1010
|
240*120
|
144*72
|
1/36Scan
|
3840
|
≥800
|
|||||
|
P1.875mm
|
SMD1515
|
240*120
|
128*64
|
1/32Scan
|
3840
|
≥1000
|
|||||
|
P2.5mm
|
SMD1515
|
240*120
|
96*48
|
1/24Scan
|
1920 / 3840
|
≥800
|
|||||
|
P2.mm
|
SMD1515
|
240*120
|
120*60
|
1/30Scan
|
3840
|
≥1000
|
|||||
|
P3mm
|
SMD2121
|
240*120
|
80*40
|
1/20Scan
|
1920 / 3840
|
≥1000
|
|||||
|
P4mm
|
SMD2121
|
240*120
|
60*30
|
1/15Scan
|
1920 / 3840
|
≥700
|
|||||
|
320x160mm Series Flexible Soft LED Screen Module
|
|
|
|
|
|
|
||||||
|
Pixel Pitch
|
LED Type
|
Module Size（MM）
|
Module Resolution
|
Driving Mode
|
Refresh Rate(Hz)
|
Brightness(Nits)
|
||||||
|
P1.86mm
|
SMD1515
|
320*160
|
172*86
|
1/43Scan
|
3840
|
≥800
|
||||||
|
P2.mm
|
SMD1515
|
320*160
|
160*80
|
1/40Scan
|
3840
|
≥800
|
||||||
|
P2.5mm
|
SMD1515
|
320*160
|
128*64
|
1/32Scan
|
1920 / 3840
|
≥800
|
||||||
|
P3.076mm
|
SMD2121
|
320*160
|
104*52
|
1/26Scan
|
1920 / 3840
|
≥800
|
||||||
|
P5mm
|
SMD2121
|
320*160
|
64*32
|
1/16Scan
|
1920 / 3840
|
≥800
|
||||||
|
Other Series Flexible Soft LED Display Panel
|
|
|
|
|
|
|
||||||
|
Pixel Pitch
|
LED Type
|
Module Size（MM）
|
Module Resolution
|
Driving Mode
|
Refresh Rate(Hz)
|
Brightness(Nits)
|
||||||
|
P1.56mm
|
SMD1010
|
250*125
|
160*80
|
1/40Scan
|
3840
|
≥800
|
||||||
|
P2mm
|
SMD1515
|
256*128
|
128*64
|
1/32Scan
|
3840
|
≥1000
|
||||||
|
P4mm
|
SMD2121
|
256*128
|
64*32
|
1/16Scan
|
1920 / 3840
|
≥1000
|
||||||
