Quick Details
-
Brand Name:
-
AICHENER
-
Voltage:
-
110V/220V/380V/415V, 110V/220V/380V/415V
-
Weight (KG):
-
220 KG
-
Power (kW):
-
2.2
-
Product Name:
-
MQ443 combined wood hand planer saw, diy planer thicknessers machine
-
Other:
-
Other demand can be customized
-
Max. Planing depth(mm):
-
3
-
Max. Sawing thickness(mm):
-
60/80
-
Max. Mortise depth(mm):
-
120
-
Spindle speed (r/min):
-
3500
-
Max. Cutting depth(mm):
-
16
-
whatsapp:
-
+8615684053496
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Certification:
-
ISO,CE
Quick Details
-
Max.Planing Depth(mm):
-
3 mm
-
Max.Planing Width(mm):
-
300
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AICHENER
-
Voltage:
-
110V/220V/380V/415V, 110V/220V/380V/415V
-
Weight (KG):
-
220 KG
-
Power (kW):
-
2.2
-
Product Name:
-
MQ443 combined wood hand planer saw, diy planer thicknessers machine
-
Other:
-
Other demand can be customized
-
Max. Planing depth(mm):
-
3
-
Max. Sawing thickness(mm):
-
60/80
-
Max. Mortise depth(mm):
-
120
-
Spindle speed (r/min):
-
3500
-
Max. Cutting depth(mm):
-
16
-
whatsapp:
-
+8615684053496
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Certification:
-
ISO,CE
MQ443 combined wood hand planer saw, diy planer thicknessers machine
MQ443 is a multi-functional heavy-duty woodworking combination machine, which has multiple functions such as cutting, planing, planing, grooving, tenoning, drilling, sharpening, sharpening saw blades, and cutting. The cast iron of the planer is finely ground as a whole, with high machining accuracy and good jointing effect. Standard mobile sliding table, can cut and cut small materials at an oblique angle, standard saw blade and planer guard, safer to use.
Feature of MQ443 combined wood hand planer saw, diy planer thicknessers machine
1. Press Thickness planing anti-rebound device, safer to use.
2. Precision grinding and thickening cast iron table and base, prolong the service life.
3. 120mm maximum pressing thickness, more stable locking .
4 . highstability t able lifting adjustment .
5. Equipped with precise backing and protective cover, it is safer to use.
6. C onvenient movable sliding table .
Parameter of MQ443 combined wood hand planer saw, diy planer thicknessers machine
|
Model |
MQ443 |
|
Max. Planing width |
300mm |
|
Max. Planing depth |
3mm |
|
Scale of thickness planing |
6~120mm |
|
Min. planing length |
150mm |
|
Max. Sawing thickness |
85mm |
|
Max. Drilling diameter |
13mm |
|
Max. Width of square mortise |
16mm |
|
Max. Width of the tenon cut |
16mm |
|
Spinlde speed |
3500RPM |
|
Motor power |
2.2kw |
|
Blade number |
3PCS |
|
Feeding speed |
6.5m/min |
|
Max.cutting depth |
10mm |
|
Package Dimension |
1250*650*450mm |
|
Weight |
220kg |
Usage of MQ443 combined wood hand planer saw, diy planer thicknessers machine

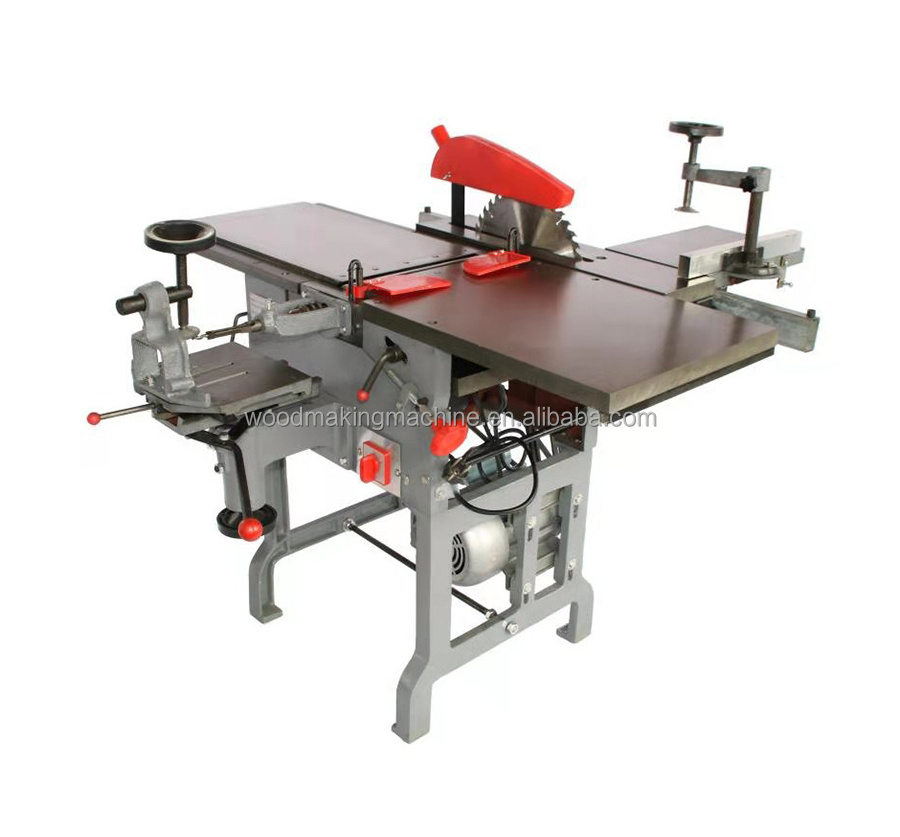

Photo of wood hand planer saw, diy planer thicknessers
Package and delivery of MQ443 combined wood hand planer saw, diy planer thicknessers machine
Shandong Aichener Machinery Co., Ltd . mainly supply woodworking thicknesser, flat planer, Multi-functional combination planer,sander machine, polish machine, wood router and miller, band saw, slide table saw, simple or precision panel saw, scroll saw, circular saw ,Woodworking edge banding machine,Rocker saw,Drilling machine, wood engraving machine, splicing machine, finger joint machine, sharpening machine,Log peeling saw,etc , widely used in Logs, solid wood panels, splice panels, plywood and sandwish wood, warm welcomed by Lumber mill and furniture processing plant,highly valued by woodworking enthusiasts.
