Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RISESAT
-
Model Number:
-
RS-G01
-
Name:
-

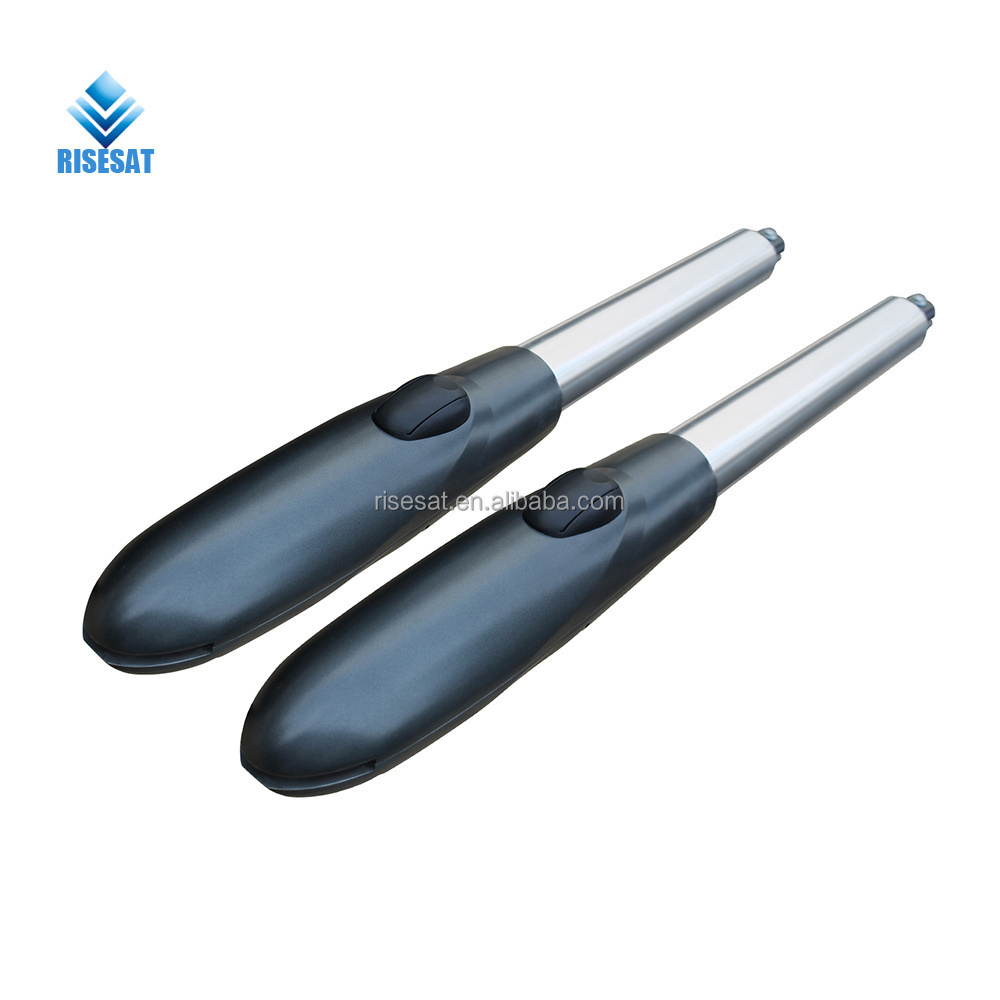

Electric swing gate opener
-
Power supply:
-
110V AC - 240V AC
-
Output Power:
-
24V DC
-
Output Torque:
-
2500N.m
-
motor power:
-
100w
-
Max. gate weight:
-
500kg
-
opening time:
-
18s per swing
-
Max. gate section width:
-
4m
-
Noise:
-
<=56dB
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Villa
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RISESAT
-
Model Number:
-
RS-G01
-
Name:
-
Electric swing gate opener
-
Power supply:
-
110V AC - 240V AC
-
Output Power:
-
24V DC
-
Output Torque:
-
2500N.m
-
motor power:
-
100w
-
Max. gate weight:
-
500kg
-
opening time:
-
18s per swing
-
Max. gate section width:
-
4m
-
Noise:
-
<=56dB
Product Description
Products Features:
1, Single-leaf or double-leaf: operated by remote controller or control panel, it can open and close by single-leaf or double
–leaf.
2,Automatically stop when meet obstacles: It will stop by itself to ensured the safety if there has someone or something shall stop its running. Resistance is set in the control box.
3,Infrared sensor protected: Installed infrared sensor, it will stop and run back by itself if someone or something in there.
4, Open and close in order: adapt to the seal gate.
5, Auto-close: After open the gate, it will automatically close in the right time.
6, Soft start and stop: it can protect gate and gate opener makes its running normal.
1, Single-leaf or double-leaf: operated by remote controller or control panel, it can open and close by single-leaf or double
–leaf.
2,Automatically stop when meet obstacles: It will stop by itself to ensured the safety if there has someone or something shall stop its running. Resistance is set in the control box.
3,Infrared sensor protected: Installed infrared sensor, it will stop and run back by itself if someone or something in there.
4, Open and close in order: adapt to the seal gate.
5, Auto-close: After open the gate, it will automatically close in the right time.
6, Soft start and stop: it can protect gate and gate opener makes its running normal.
Product Paramenters
|
Model
|
RS-G01 Series
|
|
Driving method
|
Screw driven piston type
|
|
Operating Voltage
|
DC24V for normal speed
|
|
/
|
DC12V for cushioning speed
|
|
Max.Output power
|
80W per driver
|
|
Max.piston stroke
|
30cm
|
|
Max.piston speed
|
3cm/sec
|
|
Operating cycle
|
12second per 90(approx)
|
|
Max. single-leaf weight
|
300kg per leaf
|
|
Max. single-leaf length
|
2.1M(7 feet)
|
|
DSPS device
|
Electronic timing tracker
|
|
Gearbox
|
Planetary gear
|
|
Safety clutch
|
Electronic current sensing
|
|
Release Key
|
with
|
|
Backup battery
|
12V /2.6A
|
|
Safety barrier
|
Photocells(optional)
|
|
Main supply
|
AC110V/220V,60Hz/50Hz
|
|
Electronic controller
|
Microcomputer based
|
|
Remote controller
|
UHF Digital PWM type
|
|
Temperature
|
-20 to +80C
|
|
Protection Class
|
IP54
|
