Quick Details
-
Brand Name:
-
Kepuni
-
Voltage:
-
110/220, 220V 50Hz
-
Rated Power:
-
50/60
-
Weight (KG):
-
65
-
Product name:
-
Orbital Pipe Cutting Machine
-
Power:
-
1300W
-
Rotating Speed:
-
30-160rpm
-
Cutting size:
-
12.7-114.3mm(0.5-4.5 Inch)
-
Cutting material:
-
Plastic Pipe,Copper pipe,Cast iron pipe,Aluminum pipe...
-
Cutting Diameter Range:
-
6-76.2mm
-
Pipe Diameter:
-
19~325mm
-
Weight:
-
65kg
-
Certificate:
-
ISO9001,ISO45001
Quick Details
-
Cutting Thickness (mm):
-
7
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Kepuni
-
Voltage:
-
110/220, 220V 50Hz
-
Rated Power:
-
50/60
-
Weight (KG):
-
65
-
Product name:
-
Orbital Pipe Cutting Machine
-
Power:
-
1300W
-
Rotating Speed:
-
30-160rpm
-
Cutting size:
-
12.7-114.3mm(0.5-4.5 Inch)
-
Cutting material:
-
Plastic Pipe,Copper pipe,Cast iron pipe,Aluminum pipe...
-
Cutting Diameter Range:
-
6-76.2mm
-
Pipe Diameter:
-
19~325mm
-
Weight:
-
65kg
-
Certificate:
-
ISO9001,ISO45001
Products Description

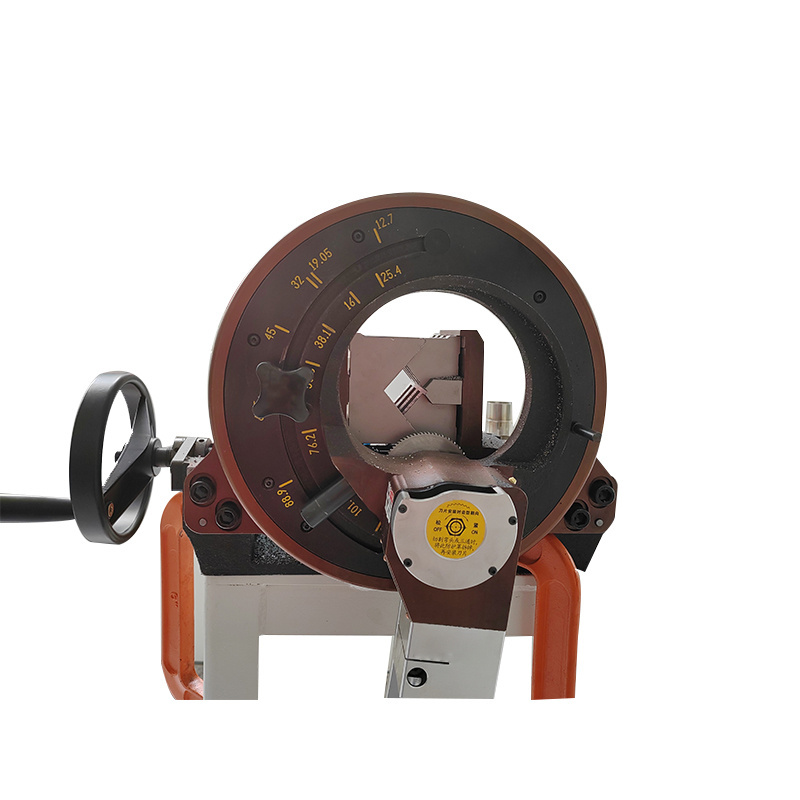

Orbital Pipe Cutting Machine
Planetary orbital pipe cutting machine is the best choice for direct welding after pipe cutting in semiconductor, electronic equipment, beer, biotechnology, beverage, dairy, pressure vessel, petroleum, natural, aviation and aerospace industry,shipbuilding, power construction, boiler, water treatment and other industries.
Application
• Copper pipe
• Cast iron pipe
• Ordinary structural steel pipe
• Galvanized pipe
• Aluminum pipe
• 304 stainless steel pipe
Product Paramenters
|
Model
|
XD-Q3
|
XD-Q4
|
|
|
Cutting Range
|
6-76.2mm
|
12.7-114.3mm
|
|
|
Maximum Cutting Wall Thickness
|
1-5mm
|
1-7mm
|
|
|
Motor Power
|
1300W
|
|
|
|
Motor Voltage
|
220V/50HZ
|
|
|
|
Blade speed
|
30-160RPM, when the pipe diameter is larger, the speed should be reduced accordingly.
|
|
|
|
Equipment size
|
600*420*540mm
|
640*465*540mm
|
|
|
Net weight
|
38.5KG
|
50KG
|
|
|
Gross weight
|
55KG
|
60KG
|
|
Our Advantages
Product Advantages
1.
The motor speed can be adjusted, and different speeds can be selected according to different wall thicknesses
2.
The blade of the planetary pipe cutter only cuts into the best position at one point and cuts from the inside to the outside
3.
The planetary pipe cutting machine can quickly change the blade, and the blade can be used for AXXAIR CC120 and GF+ pipe cutting machine
4.
The
verticality of the cutting section is high, and it can be used for automatic welding after cutting.
5.
Multi-point clamping is used
to ensure that the pipeline does not deform
6.
The pipe diameter adjustment of pipe cutting is fast and can be completed within a
few seconds
7.
The motor has its own air cooling system and temperature control protection system, which makes the motor durable.
8.
The pipe bevel can be beveled by using the special planetary bevel cutter.
