Quick Details
-
Voltage:
-
380V/50Hz
-
Power:
-
100kw
-
Weight:
-
9000 KG
-
Dimension(L*W*H):
-
50*20*6m
-
Material:
-
SUS316L/SUS304
-
Automation:
-
Automatic/Manual
-
Application:
-
Milk
-
Capacity:
-
500L~200000L/H
-
Final product:
-
Milk Drink
-
Raw material:
-
Fresh Liquid Milk Milk Powder
-
After Warranty Service:
-
Video Online Technical Support
-
Advantage:
-
High Quaility
-
Function:
-
Industrial Milk Production
-
Processing Types:
-
Complete Processing Line
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
WZD Machinery
-
Voltage:
-
380V/50Hz
-
Power:
-
100kw
-
Weight:
-
9000 KG
-
Dimension(L*W*H):
-
50*20*6m
-
Material:
-
SUS316L/SUS304
-
Automation:
-
Automatic/Manual
-
Application:
-
Milk
-
Capacity:
-
500L~200000L/H
-
Final product:
-
Milk Drink
-
Raw material:
-
Fresh Liquid Milk Milk Powder
-
After Warranty Service:
-
Video Online Technical Support
-
Advantage:
-
High Quaility
-
Function:
-
Industrial Milk Production
-
Processing Types:
-
Complete Processing Line
Product Description
In a modern UHT plant (Ultra High Temperature) the milk is pumped through a closed system. On the way it is preheated, highly heat treated, homogenized, ultra highly heat treated, cooled and packed aseptically. Low acid (pH above 4.5 - for milk more than pH 6.5) liquid products are usually treated at 135 - 150C for a few seconds holding, by either indirect heating or direct steam injection or infusion. High acid (pH below 4.5) products such as juice are normally heated at 90 - 95C for 15 - 30 seconds holding. All parts of the system downstream of the actual highly heating section are of aseptic design to eliminate the risk of reinfection, include aseptic packaging in packages protecting the product against light and atmospheric oxygen. Ambient storage is normal.
The Whole line including:
1.Milk Receiving or powder dissolving Section
2.Standardisation Section
3.UHT Sterilization Section
4.Filling & Packaging Section
5.CIP Cleaning Section
6.Water Treatment section
7.Chiller
8.Compressor
9. Steam Boiler
10. Installation Material
The Whole line including:
1.Milk Receiving or powder dissolving Section
2.Standardisation Section
3.UHT Sterilization Section
4.Filling & Packaging Section
5.CIP Cleaning Section
6.Water Treatment section
7.Chiller
8.Compressor
9. Steam Boiler
10. Installation Material
Specification
|
Raw material
|
Fresh milk , powder milk
|
|
Production
|
UHT whole milk UHT skimmed milk UHT flavor milk
|
|
Capacity
|
1T/D-500T/D
|
|
End product package
|
Brick shape aseptic carton, (like Tetrapack) ,Pillow shape aseptic pouch, plastic bottle, etc
|
Main machine details
Cooling tank
Milk cooling storage of fresh milk, milk, goat milk, raw fresh milk, the storage tank is made of stainless steel 304 or 316 stainless steel, with pressurized automatic rotary cleaning CIP spray head and automatic stirring device. The insulation layer is made of polyurethane foam, which has good heat insulation performance.
Homogenizer
This machine can be widely used in production, scientific research and technology development in the fields of food, dairy products, beverages, pharmaceuticals, fine chemicals and biotechnology.
Homogenizing milk, soybean milk and other dairy materials under high pressure can significantly refine the fat globules in the dairy liquid, making the products easy to digest and absorb after eating, and improving the edible value.
Homogenizing milk, soybean milk and other dairy materials under high pressure can significantly refine the fat globules in the dairy liquid, making the products easy to digest and absorb after eating, and improving the edible value.

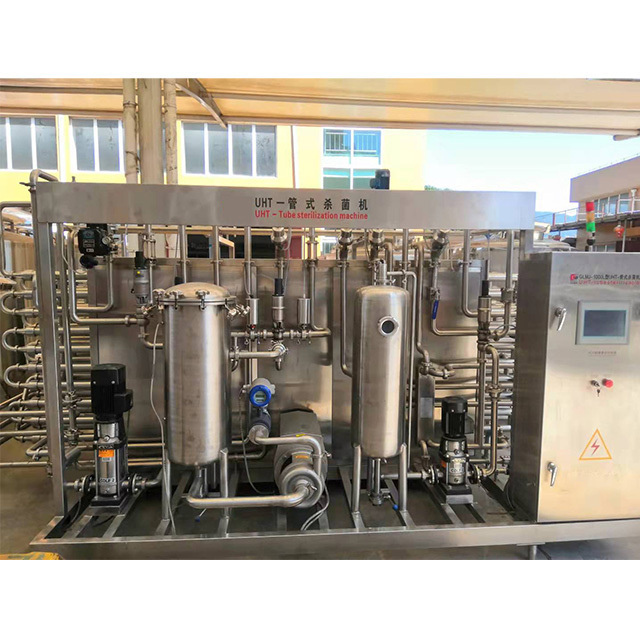

UHT sterilizer machine
The sterilization process of tubular ultra-high temperature sterilizer not only can be suitable for common products, but also can satisfy special requirements of customers,for example:long term production of products with granules or medium and high viscosity. Such an cream,pure milk etc.products(milk, fruit juice and cream )of high viscosity:products containing fiber and larger pulp granules, products of high acidity and products corrosive to the dead angle. The products can be sterilized at high temperature and ultra-high temperature of 120~140℃.
Project picture
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
