Quick Details
-
Model Number:
-
HBY-30H
Quick Details
-
Sprayer Type:
-
Pump
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
CNCMC
-
Model Number:
-
HBY-30H
Product Description
Fog cannon is a device that uses high-pressure pumps and fine atomizing nozzles to atomize water, and then sends the atomized water mist to a longer distance while covering a large area so that the water mist and dust condense and fall to achieve the purpose of dust reduction. For construction sites, factories, roads
Specification
model
|
HBY-30H
|
HBY-30D
|
HBY-40H
|
HBY-40D
|
HBY-60H
|
HBY-60D
|
control form
|
manual
|
automatic
|
manual
|
automatic
|
manual
|
automatic
|
Appearance parameters (L*W*H)
|
1300*1000*1700
|
1300*1000*1700
|
1700*1150*1800
|
1700*1150*1800
|
1700*1150*1800
|
1700*1150*1800
|
weight(KG)
|
200
|
200
|
300
|
300
|
600
|
650
|
Number of nozzles (pcs)
|
10
|
10
|
16
|
16
|
32
|
32
|
Fan power(KW)
|
3
|
3
|
5.5
|
5.5
|
11
|
11
|
Pump power(KW)
|
3
|
3
|
3
|
3
|
5.5
|
5.5
|
Pitch angle
|
-10°-45
|
-10°-45°
|
-10°-45°
|
-10°-45°
|
-10°-45°
|
-10°-45°
|
Rotation angle
|
340°
|
340°
|
340°
|
340°
|
340°
|
340°
|
Water Consumption(T/h)
|
1-3
|
1-3
|
1-4
|
1-4
|
4-6
|
4-6
|

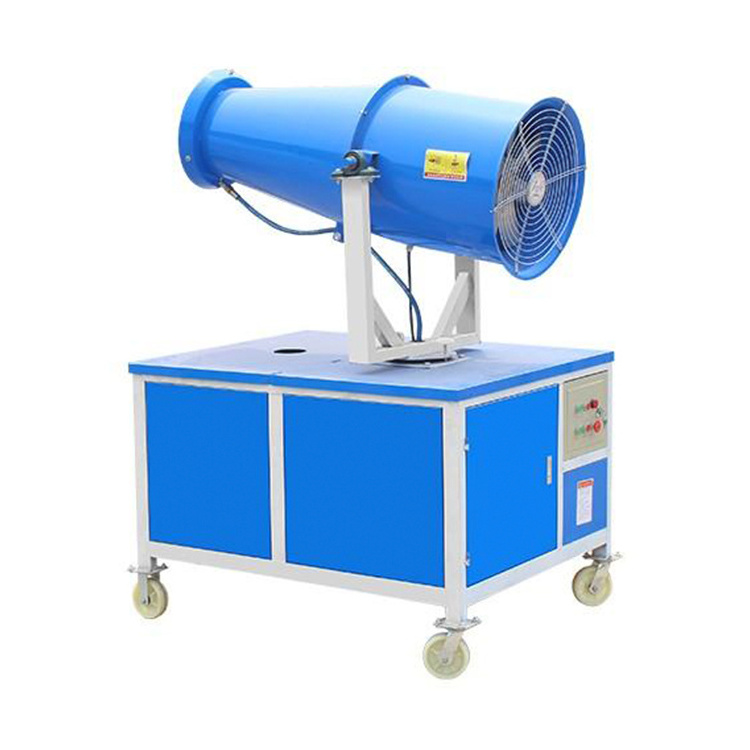

Product pictures
The difference between the manual fog cannon machine and the fully automatic machine is that the air cylinder of the fog cannon machine rotates in different ways.
The blower of the manual fog cannon machine moves up and down, left and right, all by manpower, and the blower of the automatic fog cannon machine moves up and down, left and right, all automatically.
The horizontal rotation of the air duct of the manual fog cannon can be achieved in two ways. The first way is to make the entire gun body rotate and move. The second way is to remove the fixing bolts of the rotating body and move the air duct to drive the rotating body to move After reaching the proper position, install the fixing bolts.
In addition to the horizontal rotation, the manual fog cannon also needs to adjust the pitch angle in the vertical direction. At this time, the pitch angle adjustment lever needs to be rotated.
It can be seen that the use of manual fog cannon machines is very time-consuming and labor-intensive.
The rotation of the automatic fog cannon in the horizontal and vertical directions is very flexible. The operator only needs to give the corresponding command signal through the control panel remote control or the remote control to realize it, saving time and efficiency.
The horizontal rotation of the automatic fog cannon machine is realized by the rotating motor driving the horizontal rotation structure, the horizontal rotation angle is adjustable, and the horizontal direction can be rotated 340 degrees.
The blower of the automatic fog cannon rotates up and down, left and right, and is controlled by giving corresponding command signals. These command signals can be realized by buttons. There is such a button design on the power distribution box on the side of the gun body. .
The staff can press these buttons to realize all the operations of the fog cannon machine. But this method has a disadvantage, that is, the staff must stand next to the power distribution box of the fog cannon machine. To address this determination, technicians designed remote controls that could be remotely controlled. The remote control distance of this remote control is 100 meters. Within 100 meters, the fog cannon can be controlled, which greatly facilitates the use of the fog cannon.
