Quick Details
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
3050
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts
-
Brand Name:
-
YISHAN
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
3950*2650*2100
-
Cargo Tank Dimension:
-
1*1*1
-
Engine Model:
-
Weichai 4102
-
Engine type:
-
In-line, water-cooled, 4 cylinders ,Diesel Engine
-
Rated Power:
-
43kw
-
Rated Speed:
-
2200 r/min
-
Bucket Capacity:
-
2.5CBM
-
Rated Loading Weight:
-
5000 kg
-
Operating Weight:
-
3050 kg
-
Wheel base:
-
1360 mm
-
Tread:
-
1960 mm
Quick Details
-
Condition:
-
New
-
Horsepower:
-
150 - 250hp
-
Emission Standard:
-
Euro 3
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
3050
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts
-
Brand Name:
-
YISHAN
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
3950*2650*2100
-
Cargo Tank Dimension:
-
1*1*1
-
Engine Model:
-
Weichai 4102
-
Engine type:
-
In-line, water-cooled, 4 cylinders ,Diesel Engine
-
Rated Power:
-
43kw
-
Rated Speed:
-
2200 r/min
-
Bucket Capacity:
-
2.5CBM
-
Rated Loading Weight:
-
5000 kg
-
Operating Weight:
-
3050 kg
-
Wheel base:
-
1360 mm
-
Tread:
-
1960 mm

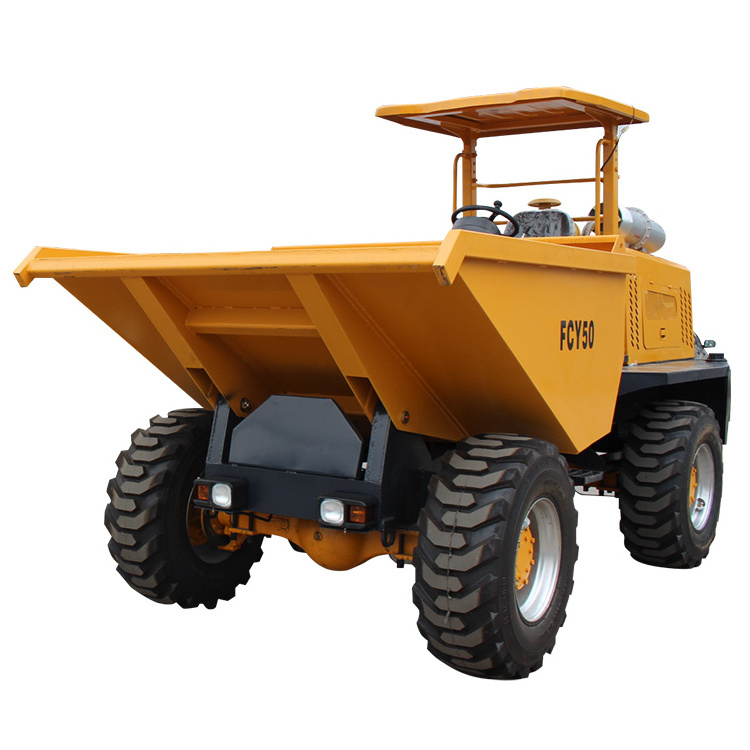

Mini 5ton Dump Truck Fcy50 Site Dumper Construction Equipment 4*4 Site Dumper
Site Dumper are widely used in short-distance transport of bulk material.
Such as the construction industry,the factory floor,battlefield,protecting road section,the municipal engineering,underground mines and so on.
Product Description
|
FCY50 Site Dumper
|
|
|
|
|||
|
Payload
|
5000kg
|
|
|
|||
|
Operating weight
|
3250 kg
|
|
|
|||
|
Hopper capacity
|
2.0m3
|
|
|
|||
|
Maximum speed
|
25.2 km/h
|
|
|
|||
|
Handbrake available on grade
|
18%
|
|
|
|||
|
Max grade ability
|
25%
|
|
|
|||
|
Distance of road after brake
|
≤2.5m with load and speed 10km/h
|
|
|
|||
|
Minimum turn radius
|
4 m
|
|
|
|||
|
Ground clearance
|
248 mm
|
|
|
|||
|
Noise level
|
≤108 db(A)
|
|
|
|||
|
Loading discharge angle
|
48.40
|
|
|
|||
|
Time of discharge
|
6s
|
|
|
|||
|
Hydraulic pressure
|
16 Mpa
|
|
|
|||
|
Wheel base
|
2200 mm
|
|
|
|||
|
Wheel tread
|
1580 mm
|
|
|
|||
|
Engine power
|
47KW
|
|
|
|||
|
Dimensions (LxWxH)
|
4400x2100x2700 mm
|
|
|
|||
|
Engine
|
|
|
|
|||
|
Model/Maker
|
4102
|
|
|
|||
|
Type
|
Diesel 4 stroke engine, 4-cylinder incline, direct fuel
injection, water cooled |
|
|
|||
|
Bore x stroke piston
|
100 x 102 mm
|
|
|
|||
|
Power
|
47KW
|
|
|
|||
|
Speed
|
2400 R/Min
|
|
|
|||
|
Max t
|
120@2100v/p
|
|
|
|||
|
Weight
|
350 kg
|
|
|
|||
|
Transmission system
|
|
|
|
|||
|
Hydraulic Torque Converter
|
2 Forward and 2 reverse gears
|
|
|
|||
|
Type
|
power shift, spur gear constantly in mesh
|
|
|
|||
|
Model
|
265
|
|
|
|||
|
Type
|
3-elements.single stage
|
|
|
|||
|
Torque ratio
|
3.06
|
|
|
|||
|
System pressure
|
160(kgf/c ㎡)
|
|
|
|||
