Outline

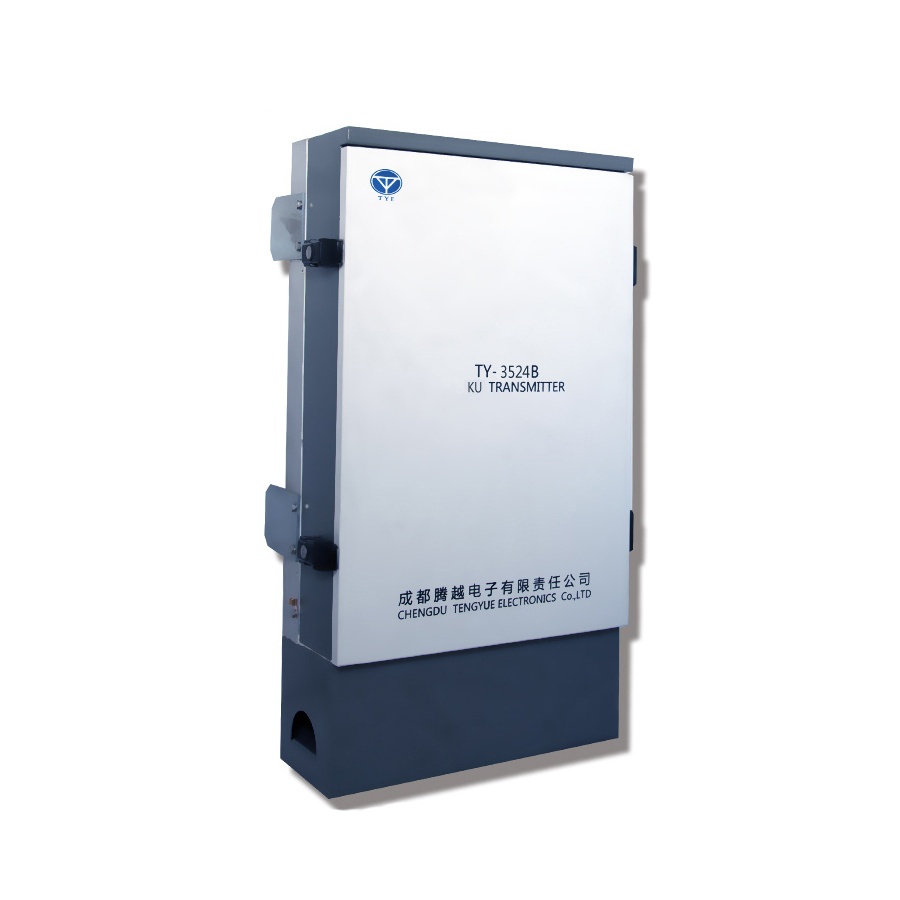

TY-3524 24W Ku band Wireless Digital TV Signal Transmitter is a kind of wireless digital TV signal transmission device newly developed by TYE. It works on Ku band (10.7GHz -12GHz ).The transmitter adopts outdoor water-proof structure, modularization design and high power output. The output power of the TY-35XX series Ku band transmitter is designed from 200mW~24W. The series transmitter can be used in DVB-S/S2 wireless point to point signal transmission system and applies to multiple digital modulation modes and can be used for multi-channel digital TV signal coverage over a range of 30km. It is also widely used as a satellite uplink power amplifier (frequency can be specified by u ser). Today, this kind of transmitter offers the best technical proposal which can replace MMDS signal coverage.

Main features

• The Ku series transmitter is specifically researched, designed and produced according to the demands of customers.
• With a wide frequency band, large program capacity and strong ability of anti-interference. Operation frequency: 10700-12000MHz.
• Optional Output Power: 200mW/2W/4W/ 8W/12W/16W/24W.
• Low cost in receiver: TV signal can be easily received with any Ku Receiving antenna existing in market installed.
• With the all-aluminium material and outdoor structure, its convenient modular design can arrange on antenna directly to reduce the loss of feeder.
• With design of rain-proof and moisture proof around the clock.
• With simple process in installment and debugging.
• Convenience in maintenance.
• Combined Ku series transmitter with MMDS/DVB-T transmitters of TYE, we can build seamless coverage system with higher cost performance.
• With RFU modularization, broadband and high consistency design, super-linear and all-solid-state power amplifier.
• Automatic Level Control in larger dynamic range(ALC); Automatic Gain Control(AGC); adaptation of wide dynamic range in different environments.
• With over-VSWR, over-voltage, over-current, over-heat and lighting auto-protective functions.
• With extended interface for remote control and GSM message auto-alarm system(optional), concentrated monitoring can be achieved.
• With the international and the domestic advanced level of the design and production of equipment.
• Succeed used in Philippines, Laos, Indonesia, Somalia, Mexico, South Africa and other regions and countries.

Specifications
