Quick Details
-
Brand Name:
-
Sanhe
-
Model Number:
-
45-5
-
Material:
-
ABS or PP
-
MOQ:
-
1
-
Weight:
-
1.9KG/2.25KG with foam
-
Flotage:
-
MAX:8.8KG
-
Inner size:
-
358.5x238.5x151.5mm
-
External Size:
-
385x296x166 mm
-
Protection Level:
-
IP67
-
Certification:
-
ISO9001
-
Packing:
-
Carton
Quick Details
-
Color:
-
BLACK
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sanhe
-
Model Number:
-
45-5
-
Material:
-
ABS or PP
-
MOQ:
-
1
-
Weight:
-
1.9KG/2.25KG with foam
-
Flotage:
-
MAX:8.8KG
-
Inner size:
-
358.5x238.5x151.5mm
-
External Size:
-
385x296x166 mm
-
Protection Level:
-
IP67
-
Certification:
-
ISO9001
-
Packing:
-
Carton

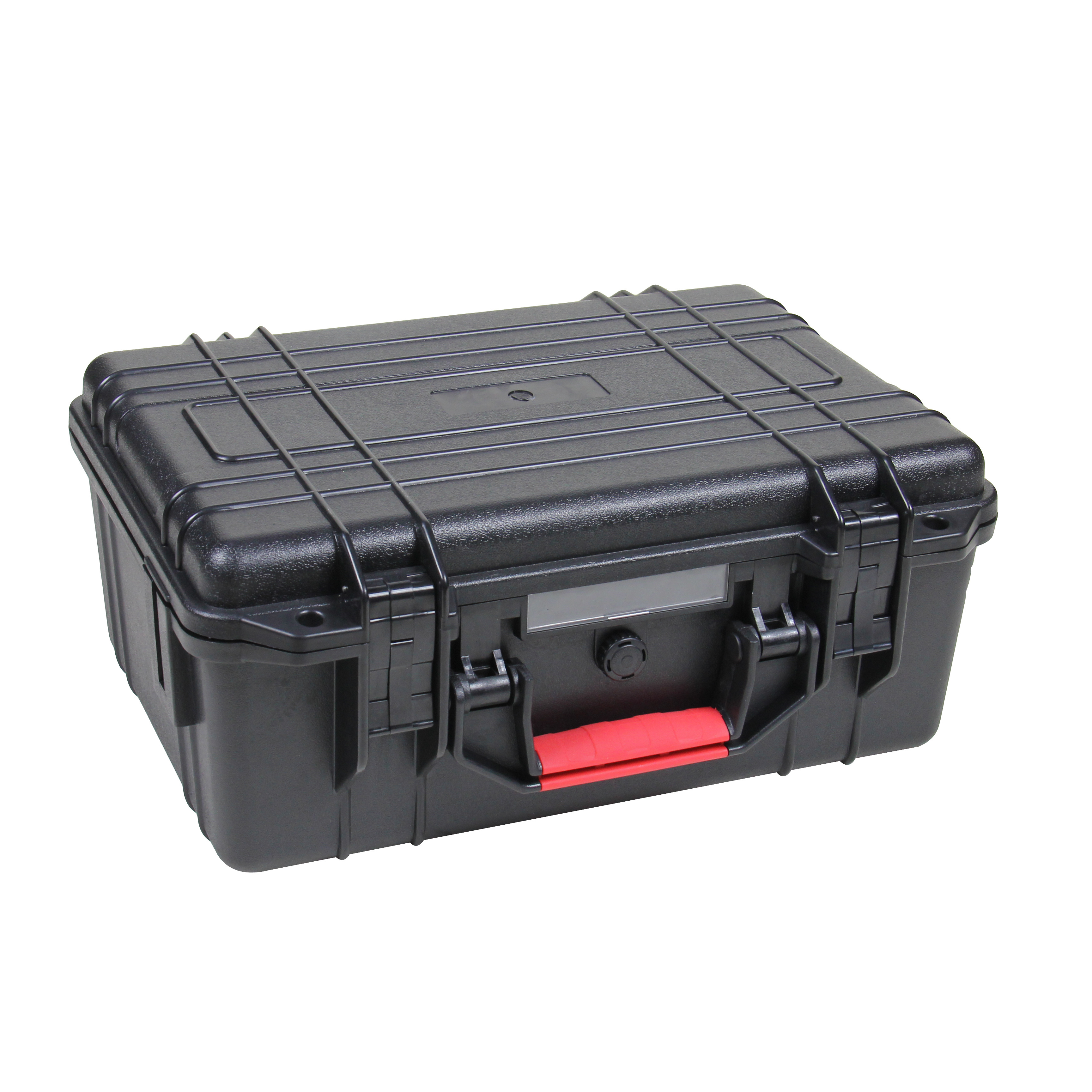

plastic hard shockproof suitcase
r
|
Parameter |
|
| Brand | Sanhe |
| Type | plastic equipment case |
| Model | 45-5 |
| Material | ABS or PP |
| Color | Black |
| OD | 385x296x166 mm |
| ID | 358.5x238.5x151.5mm |
| Weight | 1.9KG/2.25KG with foam |
| Flotage | MAX:12.5KG |
| NO. | Part name | Qty | Material |
| 1 | Cover | 1 | ABS |
| 2 | Bottom | 1 | ABS |
| 3 | Lock catch | 2 | ABS |
| 4 | Lock wrench | 2 | Nylon |
| 5 | Handle | 1 |
Elastomer Plastics |
| 6 | Pin | 12 |
Stainless Iron |
| 7 | Air pressure balance valve | 1 |
ABS |
| 8 | Sealing | 1 |
Silicone Foam |
| MODEL AND SIZE | ||||
| MODEL | Outer Dimension | Inner Dimension | Depth | |
| Lid | Case | |||
| 45-1 | 260*206*106mm | 240*160*92.5mm | 26mm | 66.5mm |
| 45-2 | 260*206*156mm | 240*160*142.5mm | 26mm | 116.5mm |
| 45-3 | 333*236*126mm | 309*189*112mm | 26mm | 86mm |
| 45-4 | 333*236*176mm | 309*189*162mm | 26mm | 136mm |
| 45-5 | 383*296*166mm | 359*239*151.5mm | 30.5mm | 121mm |
| 45-6 | 423*336*126mm | 399*279*111mm | 30mm | 81mm |
| 45-7 | 423*336*196mm | 399*279*181mm | 30mm | 151mm |
| 45-8 | 473*386*206mm | 442*322*190.7mm | 40mm | 150.7mm |
| 45-9 | 610*436*216mm | 547*367*200mm | 50mm | 150mm |
| 45-10 | 610*436*286mm | 547*367*270mm | 50mm | 220mm |
| 45-13 | 762*396*193mm | 697*327*172mm | 36mm | 136mm |
| 45-14 | 473*386*151mm | 442*322*135.7mm | 40mm | 95.7mm |
| 45-15 | 303*250*136mm | 279*199*122mm | 26mm | 96mm |
| 45-16 | 358*281*116mm | 334*229*102mm | 26mm | 76mm |
| 45-17 | 358*281*156mm | 334*229*142mm | 26mm | 116mm |
| 45-18 | 520*466*146mm | 492*402*131mm | 40mm | 91mm |
| 45-19 | 520*486*223.5mm | 492*402*191mm | 40mm | 151mm |
| 45-20 | 647*496*223.5mm | 587*427*189.5mm | 49.5mm | 140mm |
| 45-21 | 647*496*303.5mm | 587*427*269.5mm | 49.5mm | 220mm |
| 45-24 | 538*400*200mm | 492*336*167mm | 40mm | 127mm |
| 45-25 | 260*206*126mm | 236*156*112.5mm | 26mm | 86.5mm |
| 45-26 | 539*398*174mm | 482*336*164mm | 41.5mm | 122.5mm |
| 45-27 | 273x222x84 mm | |||
| 45-28 | 390x314x102 mm | |||
| 45-29 | 256x240x94 mm | |||
| 45-30 | 419*229*382mm | 365x165x301mm | 52mm | 249mm |
| 45-34 | 670*442*170mm | |||
| 45-35 | 492*353*122mm | 459x289x105mm | 34mm | 71mm |
| 46-1455 | 395x302x168mm | 348x228x152mm | 31mm | 121mm |
| 46-1456 | 435x343x150mm | 390x270x134mm | 31mm | 103mm |
| 46-1457 | 435x343x198mm | 390x270x182mm | 31mm | 151mm |
| 46-1655 | 793x426x220mm | 730x350x200mm | 50mm | 150mm |
| 46-1510 | 559x355x239mm | 502x277x193.5mm | 45.5mm | 148mm |
| 46-1610 | 643x505x314mm | 553x419x270mm | 52mm | 218mm |
| 46-1620 | 643x505x363mm | 5448x414x319mm | 52mm | 267mm |
| 46-1630 | 802x629x435mm | 703x533x391mm | 83mm | 308mm |
| 46-1640 | 704x701x397mm | 609x602x353mm | 51mm | 302mm |
| 46-1650 | 813x528x310mm | 724x441x266mm | 47mm | 219mm |
| 46-1660 | 820x600x492mm | 716x499x448mm | 89mm | 359mm |
| 46-1690 | 861x731x425mm | 762x635x381mm | 73mm | 308mm |
| COLOR OPTION | ||||
| Orange | Yellow | Blue | Military Green | Black |
1.Material and color can be customized.
2.For modification, there will be surcharge.
3.Drawings from website is just for reference.
4.Making toolings cooperative, 50% tooling cost will be undertaken for the standard products.
5.The sealing case can be used as meter cabinet with aluminum panel. Foam can be customized.
6.Feature:2 locks at front part,1 folding handle,with label location.Belt,inside bracket and aluminum panel are available,and 4 sets of foam for option.
7.More details you also can visit our company web: www.china-mould.com .
8. OEM/ODM available:
1) Making toolings cooperative, 50% tooling cost will be undertaken for the standard products.
2) Silk print logo on enclosure is available.
3) Change color is available.
9. Lead time:
Sample order in stock, and 15-20 days for bulk production.
10. Payment terms:
You can pay the order via: T/T, Paypal & Cash
11. We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS.
You can also choose your own shipping forwarder.
