Quick Details
-
Material:
-
Plywood Case, Carbon Steel
-
Weight:
-
300-9500KG
-
Size:
-
different as each model
-
Power:
-
different as each model
-
Weight (KG):
-
3000 kg
-
Product name:
-
Dissolved Air Flotation
-
Application:
-
Wastewater Treatment Plant
-
Type:
-
Automatic
-
Control:
-
PLC+Touch Screen
-
After-sales Service Provided:
-
Video Technical Support\Online Support
-
Color:
-
Customizable
-
Technology:
-
Nano Bubble Ultra Fine Bubbles
-
Usage:
-
Automatic Operation
-
Model:
-
Customizable
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhi Mai
-
Material:
-
Plywood Case, Carbon Steel
-
Weight:
-
300-9500KG
-
Size:
-
different as each model
-
Power:
-
different as each model
-
Weight (KG):
-
3000 kg
-
Product name:
-
Dissolved Air Flotation
-
Application:
-
Wastewater Treatment Plant
-
Type:
-
Automatic
-
Control:
-
PLC+Touch Screen
-
After-sales Service Provided:
-
Video Technical Support\Online Support
-
Color:
-
Customizable
-
Technology:
-
Nano Bubble Ultra Fine Bubbles
-
Usage:
-
Automatic Operation
-
Model:
-
Customizable
Products Description

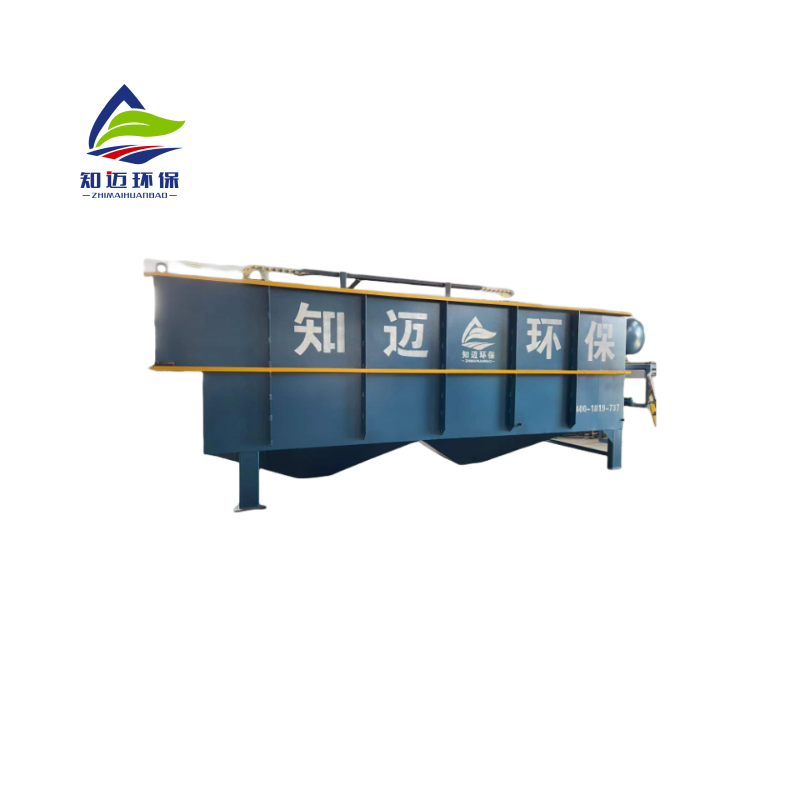

Dissolved air flotation machine
The air flotation machine is a dissolved air system that generates a large number of fine bubbles in water, causing the air to adhere to suspended solid particles in the form of highly dispersed tiny bubbles, resulting in a state where the density is smaller than that of water. It uses the principle of buoyancy to float on the water surface, thereby achieving solidification. -Water treatment equipment for liquid separation. Air flotation machines are divided into super-effective shallow air flotation machines, vortex concave air flotation machines, and advection air flotation machines. It has applications in water supply, industrial wastewater and urban sewage treatment.
Product Advantages
1. The dissolved air pump absorbs air while absorbing water. The pump is pressurized and mixed, with high gas-liquid dissolution efficiency and fine bubbles ≤30um.
2. The dissolved air pump can replace the complex system consisting of circulation pump, air compressor, dissolved air tank, ejector and release head.
3． Operating at low pressure, the gas dissolving efficiency is as high as 99% and the release rate is as high as 99%.
4. The efficient adsorption of microbubbles and suspended particles improves the SS removal effect.
5. The dissolved air water dissolution efficiency is 80-100%, which is 3 times higher than the traditional dissolved air flotation efficiency.
6． The pressure-capacity curve is flat, easy to realize automatic control, easy to operate and maintain, and has low noise.
7. It can effectively remove grease, colloids, suspended particles and fibers in sewage, reduce COD, BOD, SS and other sewage loads in sewage, and can significantly change the color of water quality.
|
Model
|
Capacity(m
3
/h)
|
Dissolved air and water volume (m
3
/h)
|
Main motor power(kw)
|
Scraper power((kw)
|
Air compressor power(KW)
|
Dissolved air tank size(mm)
|
Overall dimension(mm)
|
|
ZMYW-5
|
4-5
|
1.5-2
|
3
|
0.55
|
1.5
|
Φ 400*1000
|
3300*1800*2000
|
|
ZMYW-10
|
8-10
|
2-3
|
4
|
0.55
|
1.5
|
Φ 500*1512
|
4000*2100*2200
|
|
ZMYW-15
|
10-15
|
4-6
|
7.5
|
0.55
|
1.5
|
Φ500*1512
|
4400*2400*2200
|
|
ZMYW-20
|
15-20
|
5-7
|
7.5
|
0.55
|
1.5
|
Φ500*1512
|
4600*2400*2200
|
|
ZMYW-30
|
20-30
|
6-10
|
7.5
|
0.55
|
1.5
|
Φ500*1512
|
5200*2600*2400
|
|
ZMYW-40
|
30-40
|
8-13
|
7.5
|
0.75
|
2.2
|
Φ600*1880
|
6000*2600*2400
|
|
ZMYW-50
|
40-50
|
15-20
|
7.5
|
0.75
|
2.2
|
Φ600*1880
|
7000*2600*2400
|
|
ZMYW-60
|
50-60
|
18-27
|
11
|
0.75
|
2.2
|
Φ600*1880
|
7600*2800*2400
|
|
ZMYW-70
|
60-70
|
22-30
|
11
|
0.75
|
2.2
|
Φ650*2034
|
8400*2800*2400
|
|
ZMYW-80
|
70-80
|
24-32
|
11
|
0.75
|
3
|
Φ650*2034
|
9200*2800*2400
|
|
ZMYW-105
|
90-105
|
30-35
|
15
|
1.5
|
3
|
Φ700*1980
|
10000*2800*2600
|
|
ZMYW-150
|
125-150
|
60-80
|
22
|
1.1
|
4
|
Φ700*1980
|
13500*2800*2600
|
|
ZMYW-200
|
175-200
|
80-100
|
30
|
1.1
|
5.5
|
Φ800*2100
|
15800*2800*2600
|
|
ZMYW-250
|
225-250
|
100-120
|
37
|
1.1
|
5.5
|
Φ800*2400
|
15200*3400*2600
|
|
ZMYW-300
|
280-300
|
120-180
|
37
|
1.1
|
5.5
|
Φ1000*2900
|
19200*3400*2800
|
Application
Municipal sewage, chemical industry, beverage industry, oil refining industry, food industry, textile industry, slaughtering industry, dairy industry, etc., involving suspended solids separation, oil and water separation and purification, coagulation reaction floc separation, activated sludge separation, etc. wastewater treatment
