Quick Details
-
Applicable Material:
-
Solid Particles
-
Marketing Type:
-
New Product 2022
-
Warranty of core components:
-
3 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
wenxiong
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
2200 *1400 *1680
-
Weight (KG):
-
800
-
Product name:
-
LTEC-Series
-
capacity:
-
18000-54000 pcs /min 40-120bottles/min
-
Machine size:
-
2200 * 1400 * 1680
-
weight:
-
800KG
-
Application:
-
Solid Particles
-
Hopper Volume:
-
80L
-
Filling Quantity:
-
15-9999pcs/bottle (adjustable)
-
warranty:
-
5 years
-
Compressed air:
-
0.5Mpa
-
Counting Objects Size:
-
Thickness: 3.5-10mm Diameter: 3.5-15mm Length: 3.5-30mm
Quick Details
-
Capacity (bottle/min):
-
1 - 9999 bottle/min
-
Bottle Capacity (pcs/bottle):
-
40 - 999 pcs/bottle
-
Capacity (pcs/h):
-
9999 pcs/h
-
Applicable Material:
-
Solid Particles
-
Marketing Type:
-
New Product 2022
-
Warranty of core components:
-
3 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
wenxiong
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
2200 *1400 *1680
-
Weight (KG):
-
800
-
Product name:
-
LTEC-Series
-
capacity:
-
18000-54000 pcs /min 40-120bottles/min
-
Machine size:
-
2200 * 1400 * 1680
-
weight:
-
800KG
-
Application:
-
Solid Particles
-
Hopper Volume:
-
80L
-
Filling Quantity:
-
15-9999pcs/bottle (adjustable)
-
warranty:
-
5 years
-
Compressed air:
-
0.5Mpa
-
Counting Objects Size:
-
Thickness: 3.5-10mm Diameter: 3.5-15mm Length: 3.5-30mm
Products Description

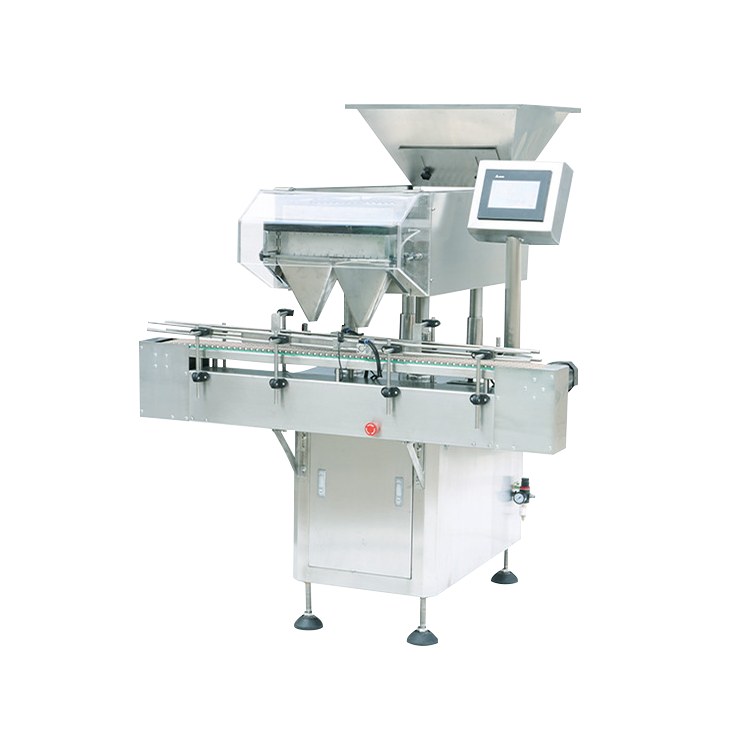

LTEC-Series Automatic Electronic counting machine is special for counting tablets, soft gelatin and chewing gums, Cod liver oil,etc. This machine adopts 16 sets imported counting sensor for counting with 16 Guiding Way and two head. The advantage of the machine is no need change mold when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation control for convenient running.
Technical Parameters
|
Model Name
|
LTEC-8
|
LTEC-16
|
LTEC-24
|
LTEC-32
|
|||
|
Application
|
1. size (00-5#)2. Soft Gelatin 3. Tablets4. Chewing gums
5. Other solid object under machine range
|
|
|
|
|||
|
Hopper Volume
|
20L
|
40L
|
45L
|
80L
|
|||
|
Capacity
|
10-20bottles/min
|
40-60bottles/min
|
40-60bottles/min
|
40-120bottles/min
|
|||
|
Filling Quantity
|
1-9999pcs/bottle (adjustable)
|
|
|
|
|||
|
Bottle Size
|
Diameter: 30-90mm
Height:40-250mm
|
|
|
Diameter: 30-90mm
Height:40-250mm
|
|||
|
Counting Size
|
Thickness: 3-10mm
Diameter: 3-15mm
Length: 3-30mm
|
|
|
Thickness: 3.5-10mm
Diameter: 3.5-15mm
Length: 3.5-30mm
|
|||
|
Compressed air
|
0.5Mpa
|
|
|
|
|||
|
Conveyor Belt Length
|
|
2400mm
|
2400mm
|
3000mm
|
|||
|
Machine Weight
|
120kg
|
650kg
|
750kg
|
1000kg
|
|||
|
Machine Size L × W × H (mm)
|
660*1280*780
|
600*2400*1670
|
2000*1600*1680
|
2200*1400*1680
|
|||
Feature
1.Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets),
Softgel
(transparent, opaque), pill count to bottling;
2.Vibratory cutting
tablets
do not damage;
3.A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;
4.Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;
5.To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools,
convenient and quick;
6.Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;
7.Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.
8.Low prices, especially for small-volume, variety and more manufacturers use.
9.Control chip imported to the United States, photoelectric sensors for Taiwan's imports.
Details Images
LTEC-Series Automatic Electronic counting machine is special for counting tablets, soft gelatin, chewing gums, etc. The advantage of the machine is no need change mold when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.
Mechanism of Push Bottles
Mechanism of Standing Bottle
Conveyor Belt
Blanking
Feeding Mouth and Stop Cylinder:Material: Stainless Steel 304.
Sensor Control Board: Adopts Imported Brand Sensor Accurate, high speed and efficiency.
Vibrating Guide Way: It adopts 3-section electromagnetic Vibrator, frequency is variable and adjustable, to separate counting
objects fast.
Final Product
