Quick Details
-
Brand Name:
-
SUNLIGHT/OEM/ODM
-
Model Number:
-
XL-RA series
-
External Size:
-
any sizes
-
Material:
-
ABS
-
Function:
-
Waterproof
-
Performance:
-
Durable
-
Certification:
-
ROHS CE
-
Size:
-
full range of sizes available
-
Color:
-
White
-
SHIPPING:
-
DHL TNT
Quick Details
-
Protection Level:
-
IP65
-
Type:
-
Junction Box
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SUNLIGHT/OEM/ODM
-
Model Number:
-
XL-RA series
-
External Size:
-
any sizes
-
Material:
-
ABS
-
Function:
-
Waterproof
-
Performance:
-
Durable
-
Certification:
-
ROHS CE
-
Size:
-
full range of sizes available
-
Color:
-
White
-
SHIPPING:
-
DHL TNT
SUNLIGHT/OEM/ODM CE outdoor plastic square connection box
Body material
: ABS
Stopper material
: PVC
Material characteristics
: Impact, heat, low temperature and chemical resistance,
excellent electrical performance and surface gloss, etc.
Certificates
: CE, ROHS
Application
: Suitable for indoor and outdoor electric, communication, fire fighting apparatus,
iron and steel smelting, petrochemical industry, electron, power system, railway,
building, mine, air and sea port, hotel, ship, works, waste water treatment equipment,
environmental equipment and so on.
Installation
: 1. Inside: There are the installation holes in the base for circuit board or din rail.
2. Outside: The products can be directly fixed on the wall or other flat boards with
screws or nails via the screw holesin the base.
Outlet hole : Cutting a hole in the PVC stopper as related cable size or installing cable gland to
get better waterproof performance.
Product Parameters of CE outdoor plastic square connection box
|
Model Code |
Hole Qty. |
Hole Size(mm) |
Protection level |
G. Weight |
N. Weight |
PCS/CTN |
Master carton size |
|
XL-RA 50x50 |
4 |
25 |
IP55 |
13.5 |
12.3 |
300 |
46x38x51cm |
|
XL-RA 80x50 |
4 |
25 |
IP55 |
14.7 |
13.4 |
240 |
53x35x62cm |
|
XL-RA 85x85x50 |
7 |
25 |
IP55 |
17.2 |
16.0 |
200 |
53x41x53cm |
|
XL-RA 100x100x70 |
7 |
25 |
IP65 |
14.9 |
13.5 |
100 |
62x49x35cm |
|
XL-RA 150x110x70 |
10 |
25 |
IP65 |
15.1 |
13.8 |
60 |
67x33x46.5cm |
|
XL-RA 150x150x70 |
8 |
25 |
IP65 |
16.3 |
15.0 |
60 |
84.5x34x45cm |
|
XL-RA 200x100x70 |
8 |
25 |
IP65 |
16.6 |
15.3 |
60 |
64x46x42cm |
|
XL-RA 200x155x80 |
10 |
36 |
IP65 |
14.5 |
13.2 |
40 |
69.5x43.5x42cm |
|
XL-RA 200x200x80 |
12 |
36 |
IP65 |
18 |
16.6 |
40 |
90x46x40.5cm |
|
XL-RA 255x200x80 |
12 |
36 |
IP65 |
21.9 |
20.1 |
40 |
55x45x78.5cm |
|
XL-RA 255x200x120 |
12 |
36 |
IP65 |
21.9 |
20.1 |
30 |
64x55x62cm |
|
XL-RA 300x250x120 |
12 |
36 |
IP65 |
20.3 |
18.4 |
20 |
61.5x55.5x63cm |
|
XL-RA 400x350x120 |
16 |
36 |
IP65 |
15 |
13.3 |
10 |
74.5x42.5x61.5cm |
|

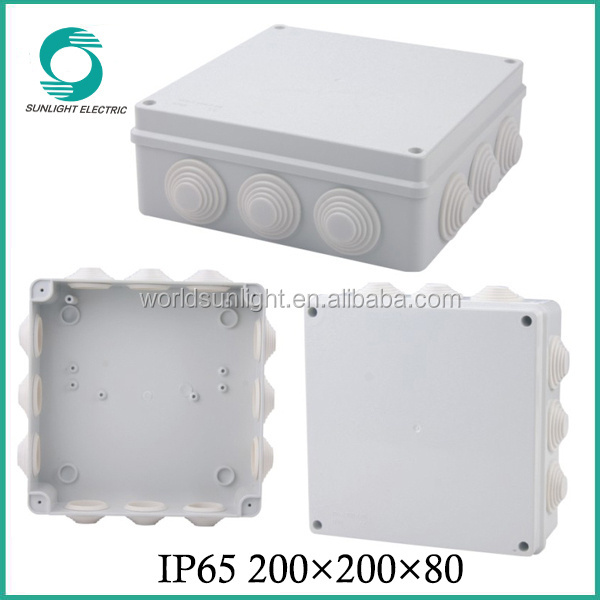

Product Pictures of CE outdoor plastic square connection box
SUNLIGHT/OEM/ODM
CE outdoor plastic square connection box
