Quick Details
-
Dimension(L*W*H):
-
4200*1500*1950mm
-
Power (kW):
-
30
-
Weight (KG):
-
9000 kg
-
Product name:
-
Rubber calender
-
Roll diameter:
-
300mm
-
Working length of rolls:
-
900mm
-
Speed ratio:
-
1:1:1
-
Adjusting nip range:
-
10mm
-
Min. calendaring thickness:
-
0.2mm
-
Calendaring product width:
-
700mm
-
Working linear speed of middle roll:
-
1.7-17m/min
-
Overall:
-
4200
-
Application:
-
Put rubber on fabrics, to rubberize fabrics, or to make rubber sheet
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TOPLIT
-
Voltage:
-
380v, 415V, 420V, 440V
-
Dimension(L*W*H):
-
4200*1500*1950mm
-
Power (kW):
-
30
-
Weight (KG):
-
9000 kg
-
Product name:
-
Rubber calender
-
Roll diameter:
-
300mm
-
Working length of rolls:
-
900mm
-
Speed ratio:
-
1:1:1
-
Adjusting nip range:
-
10mm
-
Min. calendaring thickness:
-
0.2mm
-
Calendaring product width:
-
700mm
-
Working linear speed of middle roll:
-
1.7-17m/min
-
Overall:
-
4200
-
Application:
-
Put rubber on fabrics, to rubberize fabrics, or to make rubber sheet

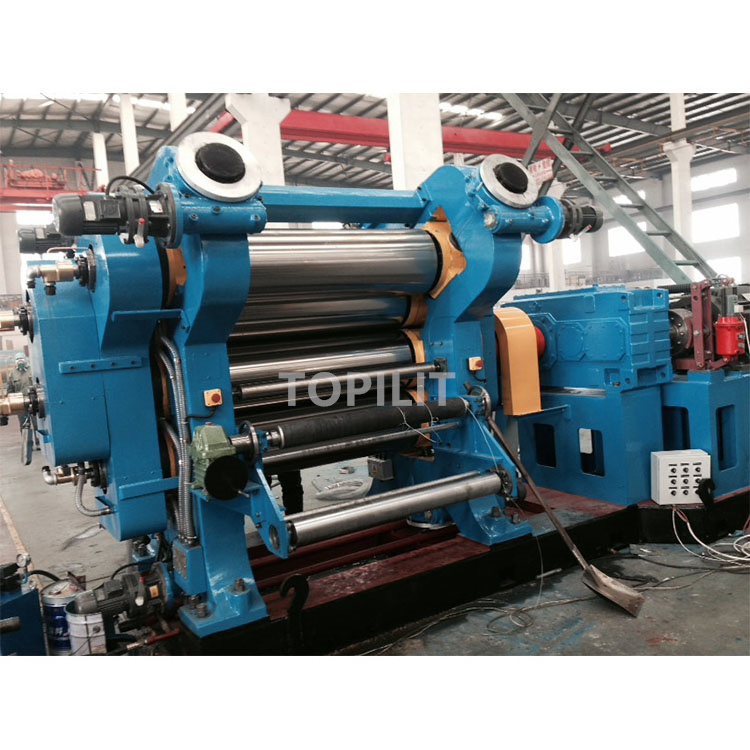

Hot Rolling Triple Roll Mill Roller Die Calenders 3 Rollers Rubber Calender Machine With Feeder
Equipment summary
Introduction:
Rubber calender is the basic equipment in the process of rubber products, it is mainly used to put rubber on fabrics, to rubberize fabrics, or to make rubber sheet.
Application:
Rubber calendering machine is mainly used for: Textile (cloth, canvas, etc.) of glue and eraser; steel cord adhesive; rubber compression and pressure type; cord attached to the fit of the isolation film and multilayer film.
Rubber calendering machine is mainly used for: Textile (cloth, canvas, etc.) of glue and eraser; steel cord adhesive; rubber compression and pressure type; cord attached to the fit of the isolation film and multilayer film.
Features: high specification, high speed of roller, high precision of half products, high level of automation of machine.
1.Rolls:
chilled alloy cast iron rolls with worksurface highhardness 68~72hs, so it is wear-resistant and durable. The rolls are mirror finished & polished, duly grinding and are hollowed for cooling or heating.
2.Roll clearance adjusting unit:
nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.
Roller space can be adjusted both by manual or electric mode.
3.Roll cooling: universal rotary joints with inner spray pipes with hoses and headers. piping is complete up to supply pipe terminal.
4.Journal bearing housing: heavy duty steel casting housing fitted with anti friction roller bearings.
5.Lubrication: full automatic grease lubrication pump for anti friction roller bearings fitted in dust sealed housing.
6.Stand frame & apron: heavy duty steel casting.
7.Gearbox: hard-tooth reduction gearbox, GUOMAO brand.
8.Base frame: common base frame heavy duty, steel channel and ms plate fabricated accurately machined on which whole machine with gearbox and motor are fitted.
9.Electric panel: star delta electric operating panel with auto reversing, voltmeter, ampere, overload protection relay, 3 phase indicator and emergency stop switch.
3.Roll cooling: universal rotary joints with inner spray pipes with hoses and headers. piping is complete up to supply pipe terminal.
4.Journal bearing housing: heavy duty steel casting housing fitted with anti friction roller bearings.
5.Lubrication: full automatic grease lubrication pump for anti friction roller bearings fitted in dust sealed housing.
6.Stand frame & apron: heavy duty steel casting.
7.Gearbox: hard-tooth reduction gearbox, GUOMAO brand.
8.Base frame: common base frame heavy duty, steel channel and ms plate fabricated accurately machined on which whole machine with gearbox and motor are fitted.
9.Electric panel: star delta electric operating panel with auto reversing, voltmeter, ampere, overload protection relay, 3 phase indicator and emergency stop switch.
While using, the steem, cooling water and heat-conducting oil can be passed into the roller's cavity, so that the working
temparature can be adjusted in order to meet the technological requirement.
|
Model
|
XY-3I(r)230*630
|
XY-3I(r)252*720
|
XY-3I(r)300*900
|
XY-3(r)360*1120
|
|
Roll diameter(mm)
|
230
|
252
|
300
|
360
|
|
Working length of rolls(mm)
|
630
|
720
|
900
|
1120
|
|
Working linear speed of middle roll(m/min)
|
0.8-8
|
2-15.9
|
1.7-17
|
3-20
|
|
Speed ratio
|
1:1.1
1:1.42:1 |
1:1:1
|
1:1:1
|
1:1.1
0.733:1:1 0.733:1:0.733 |
|
Adjusting nip range (mm)
|
0-7
|
0-10
|
10
|
0-10
|
|
Min. calendaring thickness(mm)
|
0.2
|
0.2
|
0.2
|
0.2
|
|
Calendaring product width(mm)
|
500
|
550
|
700
|
920
|
|
Driving motor power(kw)
|
7.5
|
22
|
30
|
45
|
|
Overall size(L*W*H) mm
|
3168*890*1830
|
3950*1720*1210
|
4200*1500*1950
|
6300*1500*2440
|
|
weight(ton)
|
3
|
5.5
|
9
|
14
|
|
XY-3(r)
400*1200 |
XY-3(r)
450*1400 |
XY-3(r)
550*1500 |
XY-3(r)
610*1730 |
XY-3(r)
710*1800 |
XY-3(r)
710*2130 |
|
400
|
450
|
550
|
610
|
710
|
710
|
|
1200
|
1400
|
1500
|
1730
|
1800
|
2130
|
|
3-26.39
|
2.62-26.2
|
3-30
|
5.4-54
|
4-40
|
3-30
|
|
1:1:1
1:1.383:1.383 1:1.383:1 |
1:1:1
1:1.5:1 |
1:1:1
1:1.5:1 |
1:1:1
1:1.4:1 |
0.5-1
|
1:1.5:1
|
|
0-10
|
0-10
|
0-10
|
0-20
|
0-30
|
0-20
|
|
0.2
|
0.2
|
0.2
|
0.15
|
0.2
|
0.15
|
|
1000
|
1200
|
1300
|
1500
|
1600
|
1900
|
|
55
|
75
|
110
|
160
|
90kw * 2
110kw*2 |
185
|
|
6300*1500*2440
|
7320*2200*2900
|
7550*2400*3800
|
7010*3950*3730
|
9950*3050*4040
|
8500*2670*4770
|
|
18
|
21
|
|
42
|
90
|
67
|
Qingdao TOPLIT Industry Co.,Ltd
is a professional provider of rubber machine.
Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, extruder, tire reclaimed rubber machines, butyl reclaimed rubber machines, EPDM reclaimed rubber machines, rubber powder machines, and so on.
We enjoy good reputation with reasonable price, best quality and good delivery. And we sincerely welcome clients from home and abroad to establish long and steady business relations and develop domestic and international market jointly on the base of equality and mutual benefit.
Q1.WHO ARE YOU?
A: We are Professional Provider of Rubber Machine in China for many years.
Q2.ARE YOU AN COMPREHENSIVE SUPPLIER FOR RUBBER&PLASTIC MACHINE?
A: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3. HOW ABOUT THE QUALITY CONTROL IN YOUR FACTORY?
A: We has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP.
Q4. WHAT ABOUT THE AFTER-SERVICE? WILL YOU SEND YOUR ENGINEER TO MY COUNTRY TO HELP COMMISSION AND INSTALL THE MACHINE?
A: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers.
Q5. WHAT IS THE DELIVERY TIME OF THE MACHINE?
A: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within10-60 days.
Q6. WHAT IS THE WARRANTY OF THE MACHINE?
A: The whole machine's warranty period is 12 months and spare parts will be depended.
