Quick Details
-
Product Name:
-
BT780 Battery Analyzer
-
Tests multiple rating systems:
-
CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB
-
Applicable for:
-
12V battery system and 12V/24V starting and charging system
Quick Details
-
Brand Name:
-
FOXWELL
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
BT780
-
Product Name:
-
BT780 Battery Analyzer
-
Tests multiple rating systems:
-
CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB
-
Applicable for:
-
12V battery system and 12V/24V starting and charging system

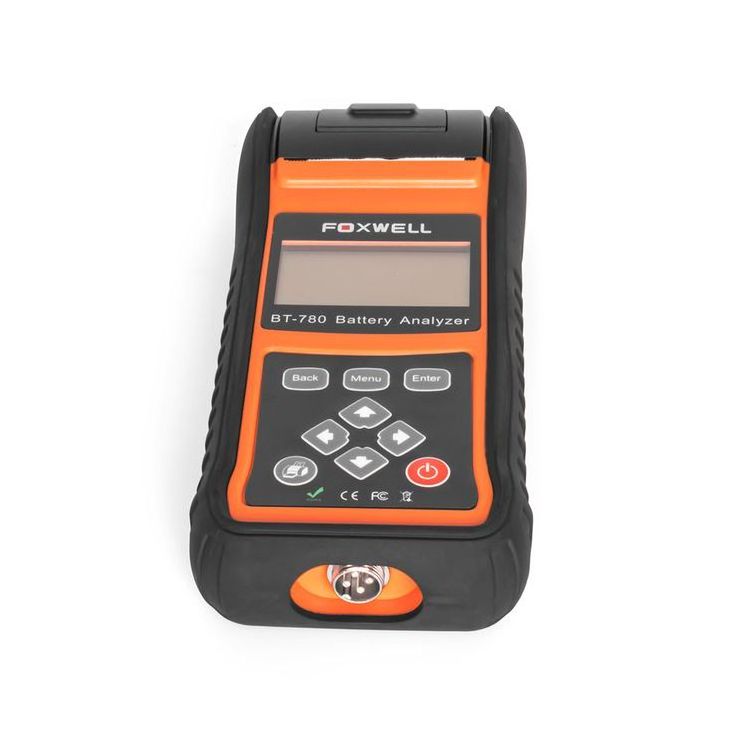

| BT-780 Battery Analyzer is delicately developed to test 12V regular flooded, AGM flat plate, AGM spiral and gel batteries and 12V & 24V starting and charging system. It provides a quick, easy and affordable solution for technicians to check battery health and detect faults of starting and charging system. | |
| Features And Benefits | 01 Tests multiple battery types - regular flooded, AGM flat plate, AGM spiral and gel, start-stop AGM and EFP batteries |
| 02 Tests multiple rating systems - CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB | |
| 03 More convenient and accurate with advanced conductance test technology | |
| 04 Ripple voltage test allows the technicians to check the output voltage of alternator quickly | |
| 05 Built-in thermal printer to print test results at anytime and anywhere | |
| 06 SOC and SOH tests make technicians easier and faster to judge the battery status. | |
| 07 Equipped with 0-1000A AC and DC current clamp (optional) | |
| 08 Replaceable test cables | |
| 09 Quick and accurate test results display in just 3 seconds | |
| 10 Applicable for 12V battery system and 12V & 24V starting and charging system | |
| 11 Advanced starter/alternator test | |
| 12 Quick starter analysis without disabling the ignition | |
| 13 Does not emit light, heat or spark, or discharge battery - keeps operation safe for all levels of users. | |
| 14 Multilingual menu and test results | |
| 15 Lifetime Free updates via USB cable | |
|
No |
Item |
Range |
Tolerance |
|
1 |
Voltage Measuring |
6V to 32V |
N/A |
|
2 |
Battery Type |
Flooded, AGM,GEL,start-stop AGM&EFB batteries |
N/A |
|
3 |
Battery Rating |
100-2000CCA |
± (3%+5) CCA |
|
4 |
Standard support |
CCA,CA, MCA,JIS,DIN,IEC,EN,SAE |
N/A |
|
5 |
Net weight |
0.8kg |
N/A |
|
6 |
Dimension |
90*240*45mm |
N/A |
|
No |
Standard |
Description |
Testing Range |
|
1 |
CCA |
Cold Cranking Amps,as specified by SAE.The most common rating for cranking batteried at 0°F(18°C) |
100-2000 |
|
2 |
CA |
Cranking Amps standard.The effective starting current value at 0°C(32°F) |
100-2000 |
|
3 |
MCA |
Marine Cranking Amps standard.The effective starting current value at 0°C(32°F) |
100-2000 |
|
4 |
JIS |
Japanese Industry Standard,shown on a battery as a combination of numbers and letters |
26A17--245H52 |
|
5 |
DIN |
Deutsche Industrie-Norm |
100-2000 |
|
6 |
IEC |
International Electrotechnical Commission |
100-2000 |
|
7 |
EN |
Europa-Norm |
100-2000 |
|
8 |
SAE |
Society of Automotive Engineers |
100-2000 |
