Quick Details
-
Brand Name:
-
BLS
-
Model Number:
-
BLS-6304
-
Standard:
-
ASTM D1533,D6304, D1744 and D95
-
Function:
-
Analyze the moisture content in petroleum products
-
Display:
-
LCD touch screen
-
Measurement mode:
-
Karl Fischer Coulometric method
-
Electrolysis current:
-
0-400 mA automatic control
-
Displayed measurement range:
-
0.01ug water - 200mg water
-
Sensitivity:
-
0.01ug water
-
Drift compensation:
-
Microprocessor automatic control
-
Power consumption:
-
Less than 40W
-
Working environment:
-
Temperature:5℃-40℃,humidity:85%
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
BLS
-
Model Number:
-
BLS-6304
-
Standard:
-
ASTM D1533,D6304, D1744 and D95
-
Function:
-
Analyze the moisture content in petroleum products
-
Display:
-
LCD touch screen
-
Measurement mode:
-
Karl Fischer Coulometric method
-
Electrolysis current:
-
0-400 mA automatic control
-
Displayed measurement range:
-
0.01ug water - 200mg water
-
Sensitivity:
-
0.01ug water
-
Drift compensation:
-
Microprocessor automatic control
-
Power consumption:
-
Less than 40W
-
Working environment:
-
Temperature:5℃-40℃,humidity:85%

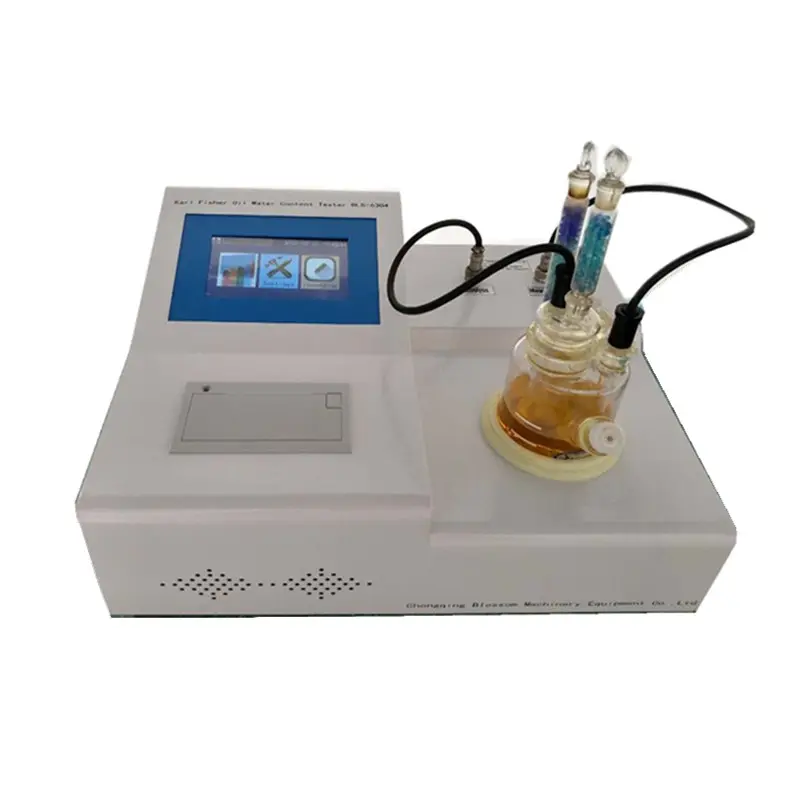

Diesel and Gasoline Crude Oil Water Content Analyzer
Application
Standard: The instrument complies to ASTM D1533,D6304, D1744 and D95.
The instrument is widely used to analyze the moisture content in petroleum products such as transformer oil, lube oil, engine oil, turbine oil and diesel fuel, etc. It is an ideal water content measurement instrument in institutions , petroleum enterprises , chemical industry, power, pharmaceuticals, pesticide, railways and research, etc.
Features
1. 8-inch 260,000 color LCD touch screen display (800 * 600 pixels resolution);
2. The shell is made of high quality ABS engineering plastic board, with anti-corrosion treatment on the surface, anti-corrosion, easy to clean;
3. The blank current microprocessor automatically controls the compensation to ensure that the blank is accurately deducted within 10 minutes of the sample enrichment time;
4.0-400 mAh large electrolysis current, high detection sensitivity, fast analysis speed;
5. Powerful storage function, storage of 300 measurement results, easy access to historical records at any time;
6. A utomatically calculates and prints ug / ppm / percentage content / mg / L / sample number / tester / date, etc.;
Technical Parameters
|
Display |
LCD touch screen (resolution 800*600 pixels) |
|
Measurement mode |
Microprocessor controlled electrolysis (Karl Fischer Coulometric method) |
|
Electrolysis current |
0-400 mA automatic control |
|
Displayed measurement range |
0.01ug water - 200mg water |
|
Sensitivity |
0.01ug water |
|
Accuracy |
When the moisture is between 10ug and 1000ug, the measurement error is not more than±3 ug; When the moisture is above 1000ug, the measured error is≤0.3% ( injection error not included) |
|
Drift compensation |
Microprocessor automatic control |
|
End point indication |
Screen display / printout / audible warning / end point lamp indication |
|
Printer |
Low-energy high-speed thermal printer, 56 mm paper width |
|
Power consumption |
Less than 40W |
|
Dimensions |
430×350×190mm |
|
Working environment |
Temperature:5℃-40℃,humidity:‹85% |
|
Power supply |
AC220V±10% 50HZ±2.5HZ(can be customized) |
|
Weight |
About 14kg |
