Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Bonle
-
Voltage:
-
120/277 VAC
-
Emergency Operation:
-
90 Minutes
-
Housing:
-
White Thermoplastic
-
Recharge Time:
-
24 Hours
-
Mounting:
-
Universal
-
Warranty:
-
3 to 5 Years
-
Certification:
-
CE,ROHS
Quick Details
-
Battery Type:
-
Ni-CD
-
Material:
-
Thermoplastic
-
Usage:
-
Hotel, Shopping mall..
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Bonle
-
Voltage:
-
120/277 VAC
-
Emergency Operation:
-
90 Minutes
-
Housing:
-
White Thermoplastic
-
Recharge Time:
-
24 Hours
-
Mounting:
-
Universal
-
Warranty:
-
3 to 5 Years
-
Certification:
-
CE,ROHS
Description

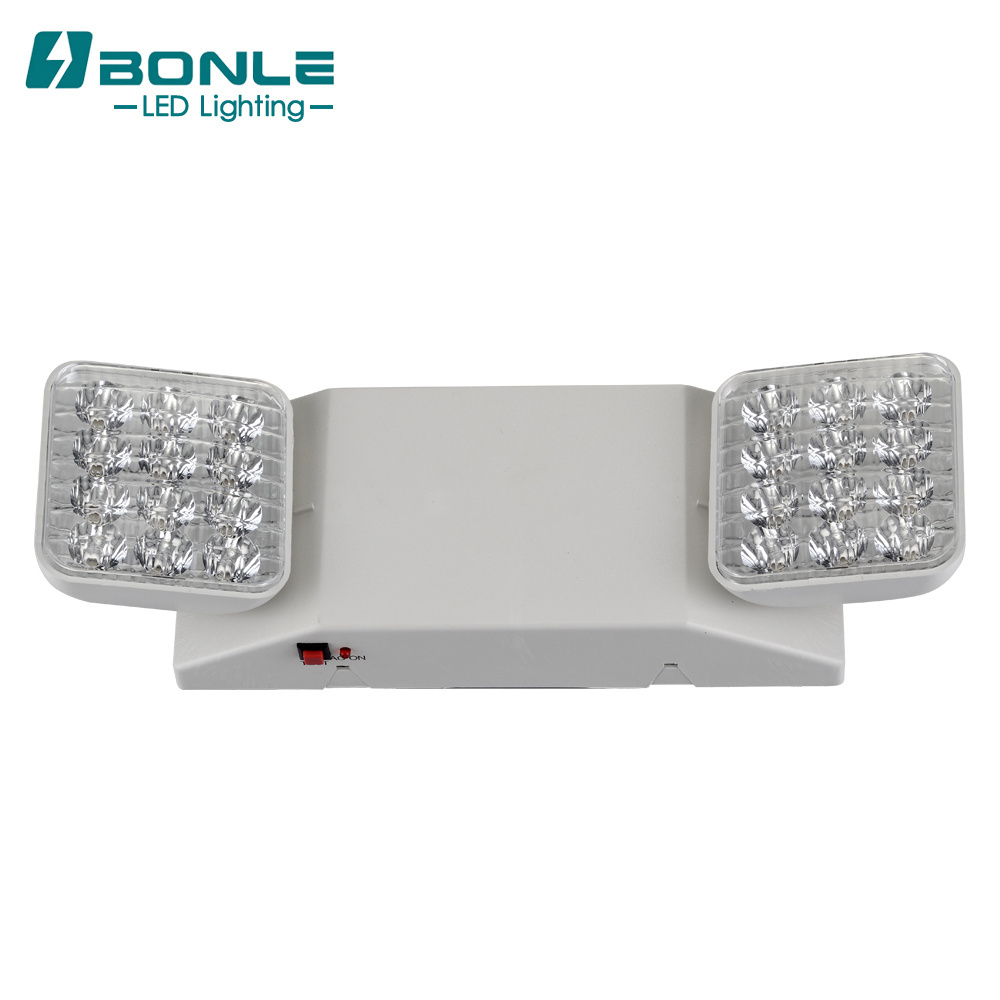

The emergency light features fully adjustable lamp heads containing long lasting, ultra bright, white LEDs. This low-profile unit can be mounted in any orientation, on walls or ceilings and will operate for a minimum of 90 minutes during a loss of power. With it's rugged, high-temperature thermoplastic housing this fixture is ideal for areas where emergency lighting is needed.
Features
• Each head contains 12 long-lasting, efficient, ultra-bright, white LEDs using 1.5 watts per head
• Completely self-contained, compact, low-profile design
• Rugged, injection-molded UL94 V-0 flame retardant,hightemperature thermoplastic housing
• Remote capable- up to 2 HLED remote heads
• AC lockout for ease of installation and installer protection
• Low voltage disconnect eliminates deep discharge
• Brown-out, short circuit and voltage surge protection
• Charge rate/power “ON” LED indicator light with test button
• Maintenance-free Ni-cad battery
• UL listed 90 minute emergency run time, 24 hour recharge time
• Universal J-Box mounting system
• Optional Guardian Self-Test/Self-Diagnostics (G2) available
• Standard finishes: Black or white
• 120/277V dual primary, 60Hz inp
Specifications
| Material | Plastic |
| Voltage | 120/277 VAC |
| Light Source | 2X12pcs ultra bright LED lamp heads for emergency mode |
| Battery Type | Ni-Cad |
| Housing | White Thermoplastic |
| Emergency Operation | 90 Minutes |
| Recharge Time | 24 Hours |
| Lamp Heads | Adjustable LED |
| Mounting | Universal |
| MOQ | 1 PCS |
Products Size
Sample Photometrics
Using multiple units mounted at a typical 7.5' delivers 18' center-to center spacing on a 3' wide egress path.Tina Lin
Skype: bonle-lai
Email: sales5 (@) bonle.com
Mobile Phone: +86 13675019150
QQ:2100629008
Wechat:+86 13675019150
Whatsapp: +86 13675019150
| Model | BN-EL01 | BN-EL04 | BN-EL05 | BN-EL02 | BN-EL03 |
| Light Source | 2X12pcs SMD2835 | 2X12pcs SMD2835 | 2X12pcs SMD2835 | Ultra bright RED or GREEN LEDs |
Ultra bright RED or GREEN LEDs + 2X12pcs SMD2835 |
| Voltage | 120/277 | 120/277 | 1 20/277 | 1 20/277 | 1 20/277 |
| Battery Type | Ni-Cad | Ni-Cad | Ni-Cad | Ni-Cad | Ni-Cad |
|
Emergency Operation |
90 Minutes | 90 Minutes | 90 Minutes | 90 Minutes | 90 Minutes |
|
Housing |
White Thermoplastic | White Thermoplastic | White Thermoplastic | White Thermoplastic | White Thermoplastic |
| Lamp Heads | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
|
Recharge |
24 Hours | 24 Hours | 24 Hours | 24 Hours | 24 Hours |
